Astra 2E at 28.2E: General Discussion Part 2

Status
Not open for further replies.
davidcmadrid

davidcmadrid

Member
Joined
Sep 21, 2012
Messages
218
Reaction score
48
Points
28
Age
47
My Satellite Setup
40cm offset 19e, 1.5m 28e 1.2 M motor vu+
My Location
Madrid Spain
Huevos said:
Current orbit is slightly elliptical so 2E has a daily cycle wandering between 28.30 and 28.42.

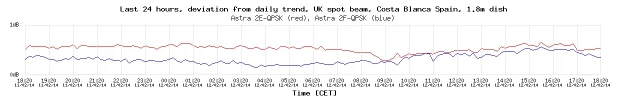

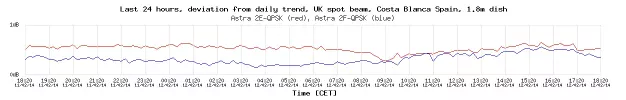

I realigned my 1.8m dish yesterday. Graph attached. Look at around 17:30. Picked up lots of signal on 2E for almost no trade-off on 2F.

View attachment 61818
Click to expand...
Very interesting. I imagine you are now focussed between the two sattelites ? 1 - 1.5db gain is i think a jump in dish size e.g 1.2 - 1.5 ?

Huevos

Huevos

Satellite Freak
Joined
Sep 11, 2008
Messages
6,036
Reaction score
1,273
Points
113
My Satellite Setup
57E to 58W, C-band and Ku, DVB-S2, 4:2:2 and blindscan.
My Location
38.5ºN, 0.5ºW
davidcmadrid said:
I imagine you are now focussed
Click to expand...
I used 10818V as the guide. Plenty of signal on 2F so I concentrated on 2E and it doesn't seem to have affected 2F at all. If anything it has improved a tad. If I map the current level for the last 24 hours against the daily trend since switch-on I get this.

solly

solly

Specialist Contributor
Joined
Apr 18, 2004
Messages
6,414
Reaction score
3,659
Points
113
Age
53
My Location
Tel Aviv, Israel
Lazarus

Lazarus

Retired Moderator
Joined
May 29, 2009
Messages
27,082
Reaction score
8,670
Points
113
My Satellite Setup
80cm Motorised.
Several small Dishes.
Much else.
My Location
North York Moors
It's not like you to speculate, solly: We normally rely upon you for the Facts! :D

solly

solly

Specialist Contributor
Joined
Apr 18, 2004
Messages
6,414
Reaction score
3,659
Points
113
Age
53
My Location
Tel Aviv, Israel
how need to good swiming :) the pool

S

Salva

Member
Joined
Sep 3, 2009
Messages
33
Reaction score
28
Points
18
My Satellite Setup
DM800S and Tecatel 1.2 Offset
My Location
Gandía (SPAIN)
Huevos said:
I realigned my 1.8m dish yesterday. Graph attached. Look at around 17:30. Picked up lots of signal on 2E for almost no trade-off on 2F.
Click to expand...

Interesting .... being in the same area as you and having a 1,2 offset makes me thinking on readjusting the dish

can you confirm if the gain is noticeable across the day ?

M60

M60

Regular Member
Joined
Aug 21, 2011
Messages
764
Reaction score
361
Points
63
Age
47
My Satellite Setup
Fixed 28.2E Triax TD64, Freesat PVR + Panasonic Freesat TV's
My Location
Northern England
Huevos

Huevos

Satellite Freak
Joined
Sep 11, 2008
Messages
6,036
Reaction score
1,273
Points
113
My Satellite Setup
57E to 58W, C-band and Ku, DVB-S2, 4:2:2 and blindscan.
My Location
38.5ºN, 0.5ºW
Salva said:
can you confirm if the gain is noticeable across the day ?
Click to expand...
You can see it in the graph in post #502. That is today's SNR compared to SNR since switch-on. So, for example, baseline is signal reading since Thursday at 6am, split into 10 minute sessions on all QPSK transponders. Then today's reading is superimposed on that baseline. So anything above 0dB is better than an "average" day. Right now I'm about 0.5dB up on 2E across the whole day.

davidcmadrid

davidcmadrid

Member
Joined
Sep 21, 2012
Messages
218
Reaction score
48
Points
28
Age
47
My Satellite Setup
40cm offset 19e, 1.5m 28e 1.2 M motor vu+
My Location
Madrid Spain
Huevos said:
You can see it in the graph in post #502. That is today's SNR compared to SNR since switch-on. So, for example, baseline is signal reading since Thursday at 6am, split into 10 minute sessions on all QPSK transponders. Then today's reading is superimposed on that baseline. So anything above 0dB is better than an "average" day. Right now I'm about 0.5dB up on 2E across the whole day.
Click to expand...

I should have thought to filter out the weather differences the most obvious measure is the change when you adjusted the antenna ?

B

Bengt

Regular Member
Joined
Nov 8, 2012
Messages
28
Reaction score
19
Points
3
My Satellite Setup
1,8m PF dish (situated on balcony),Invacom Quad or Inverto LNB (it varies), Sky Digibox, Humax Foxsat HD receiver, TBS8922 card.
My Location
Trelleborg (swedish south coast)
So 12441V is also active, is this also on 2A South beam do we think?

Hi

I can't tell. I'm having a hard time distinguishing 2A South from 2E PE at my location.

Regards,
Bengt

Pride Of Cucamonga

Pride Of Cucamonga

Regular Member
Joined
Oct 20, 2013
Messages
267
Reaction score
105
Points
43
My Satellite Setup
Cheap piece of junk Spanish (Tecatel) 120cm(x110) dish, Inverto Ultra twin LNB and Sky HD box.
My Location
Valencia (city)
Huevos said:
That's not going to happen. Positions are registered with ITU and you need to have a satellite in that slot to maintain rights the position.
Click to expand...

Eutelsat will not have any satellites at 28.5 but they're not going to lose the slot. I;m sure there's some leeway.

FRINGE

FRINGE

Member
Joined
Nov 5, 2009
Messages
196
Reaction score
53
Points
28
Age
68
Location
Adeje in Tenerife
My Satellite Setup
laminas 2.7 offset
laminas feed horn
Invacom quad LNB
Humax foxsat PVR
My Location
Tenerife
Center of box ,window center is 28.35. and will be there at least 25.02.14..ses.com

What difference, if any, would this make to fringe reception?

BLUEPLATINUM

BLUEPLATINUM

Specialist Contributor
Joined
Sep 4, 2003
Messages
951
Reaction score
102
Points
43
Age
59
Location
Maspalomas, Gran Canaria
My Satellite Setup
ITSarria LTE Internet, 2 X SKY HD, Invacom C120 quad LNB, Raven 2.4m offset dish, TDT (Spanish freeview)
My Location
Maspalomas, Gran Canaria
solly said:
what is mean centerbox ?
Click to expand...
It relates to the exact position they intend to maintain the satellite within its permitted space. The relevance of the data is that it proves they have no intention to relocate the satellite during the period shown.


Sent from my GT-I9205 using Tapatalk

Schroeder

Schroeder

Regular Member
Joined
Nov 19, 2012
Messages
120
Reaction score
61
Points
28
My Satellite Setup
2.2m Pasat prime focus with Invacom c120 quad LNB, PACE DS430N, Ferguson Ariva 200, Humax Foxsat HDR
My Location
Albatera, Alicante, Spain
SUBJECT: ELEVEN PARAMETER EPHEMERIS FOR Astra-1N/ 28.20 DEG. E

YEAR MONTH DAY HOUR MINUTE SECOND
2014 02 12 23 00 00

THE EPHEMERIS VALUES ARE:

LM0 LM1 LM2
DEG. E DEG/DAY DEG/DAY/DAY
27.9933 -0.5787 0.000834


LONC LONC1 LONS LONS1
DEG. E DEG/DAY DEG. E DEG/DAY
-0.0066 0.0012 -0.0039 0.0005


LATC LATC1 LATS LATS1
DEG. N DEG/DAY DEG. N DEG/DAY
0.0260 0.0015 -0.0269 0.0008

THE NOMINAL ORBITAL LOCATION FOR THIS SATELLITE IS 28.20 DEG. E

THE PREDICTED SATELLITE LONGITUDE AND LATITUDE AT 170 HOURS AFTER
EPOCH ARE 23.9374 DEG. E AND 0.0192 DEG. N

Looks like 1N is on it's way to 19.2E

Lazarus

Lazarus

Retired Moderator
Joined
May 29, 2009
Messages
27,082
Reaction score
8,670
Points
113
My Satellite Setup
80cm Motorised.
Several small Dishes.
Much else.
My Location
North York Moors
Mod. Note

As advertised, and as further advised by Schroeder above 1N is most definitely moving Westwards

Member dmaavrigdo provides further evidence here



Can we please continue substantive discussion of 1N in the linked Topic alone, now that she no longer has relevance to what will go on at 28E?
