launch express at 1 and express at 2

tempo

Member
Joined
Aug 14, 2011
Messages
370
Reaction score
959
Points
93
Age
46
My Satellite Setup
Athlon X2 4400+; 110cm+90cm+60cm; Prof7301/7500/8000, TT S2-1500/1500b/1600/2400/3200/3650/4600/, Omicom S2, TBS 6922/5922/5925/5980/6280, TeVii S420/464/470/471/630/650/660, DVBSky S830/850/860/950/952, BGT3600/3620/3630, PCTV 400e/450e/452e/7010ix
My Location
47.5N, 42.2E / Russia
12437R, 12476R.

So, this is full list of all transponders of Express AT2 (16 TPs):
12187L
12207R
12226L
12245R
12265L
12284R
12303L
12322R
12341L
12360R
12380L
12399R
12418L
12437R
12456L
12476R


Attachments

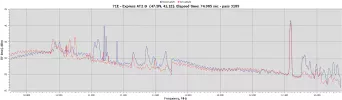

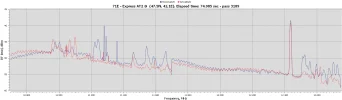

  • 71.0E-RFScan_3189.png
    107.1 KB · Views: 41

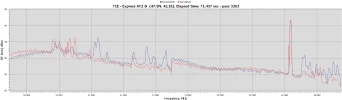

  • 71.0E-RFScan_3203.png
    102.1 KB · Views: 33

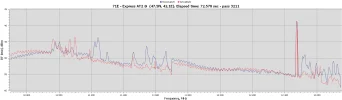

  • 71.0E-RFScan_3211.png
    104.3 KB · Views: 32
  • 71.0E-RFScan_3223.png
    104.8 KB · Views: 34

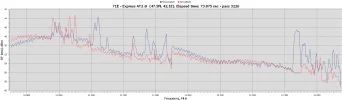

  • 71.0E-RFScan_3226.png
    124.4 KB · Views: 33

hvdh

Specialist Contributor
Joined
Dec 10, 2004
Messages
2,357
Reaction score
3,336
Points
113
Age
59
Website
gso-satellites.nl
My Satellite Setup
Dr.HD F16, TBS 5927, T-55, Laminas 120 cm
My Location
Oss, NL (5.5°E 51.8°N)
Great, you figured out the plan of AT2. :)

Did you also finish the plan of AT1 ?
You mentioned 25 TP's in this thread, while according Gunter's, AT1 has 32 TP's.
So that would mean for the band 11.7...12.5 GHz that has a grid of 40 TP's, there must be 8 TP's missing on AT1.


solly

Specialist Contributor
Joined
Apr 18, 2004
Messages
6,400
Reaction score
3,648
Points
113
Age
53
My Location
Tel Aviv, Israel
the tricor provider will be start comercial service on express at 1 56e
from 22 april


Captain Jack

Burnt out human
Joined
Oct 21, 2006
Messages
11,797
Reaction score
7,980
Points
113
My Satellite Setup
See signature
My Location
North Somerset
Wonder what the beam into Europe will be like. Though, I know there are two beams - Siberian and "Wide".


tempo

Member
Joined
Aug 14, 2011
Messages
370
Reaction score
959
Points
93
Age
46
My Satellite Setup
Athlon X2 4400+; 110cm+90cm+60cm; Prof7301/7500/8000, TT S2-1500/1500b/1600/2400/3200/3650/4600/, Omicom S2, TBS 6922/5922/5925/5980/6280, TeVii S420/464/470/471/630/650/660, DVBSky S830/850/860/950/952, BGT3600/3620/3630, PCTV 400e/450e/452e/7010ix
My Location
47.5N, 42.2E / Russia
Great, you figured out the plan of AT2. :)

Did you also finish the plan of AT1 ?
You mentioned 25 TP's in this thread, while according Gunter's, AT1 has 32 TP's.
So that would mean for the band 11.7...12.5 GHz that has a grid of 40 TP's, there must be 8 TP's missing on AT1.
In fact AT1 have 32 TPs, but I have been missed the beginning of tests, so can't say anything about tests of another TPs in 11700-12200 MHz subband. I suppose we'll know that soon )

Express AT1 has stopped this evening at 55.97°E position. Probably second phase of testing will begin soon, so 16 April could be the true date of commercial service.
In the same time, Bonum was switched off in the morning (no signal anymore by people's reports), preparing to go to qraveyard orbit.


tempo

Member
Joined
Aug 14, 2011
Messages
370
Reaction score
959
Points
93
Age
46
My Satellite Setup
Athlon X2 4400+; 110cm+90cm+60cm; Prof7301/7500/8000, TT S2-1500/1500b/1600/2400/3200/3650/4600/, Omicom S2, TBS 6922/5922/5925/5980/6280, TeVii S420/464/470/471/630/650/660, DVBSky S830/850/860/950/952, BGT3600/3620/3630, PCTV 400e/450e/452e/7010ix
My Location
47.5N, 42.2E / Russia

tempo

Member
Joined
Aug 14, 2011
Messages
370
Reaction score
959
Points
93
Age
46
My Satellite Setup
Athlon X2 4400+; 110cm+90cm+60cm; Prof7301/7500/8000, TT S2-1500/1500b/1600/2400/3200/3650/4600/, Omicom S2, TBS 6922/5922/5925/5980/6280, TeVii S420/464/470/471/630/650/660, DVBSky S830/850/860/950/952, BGT3600/3620/3630, PCTV 400e/450e/452e/7010ix
My Location
47.5N, 42.2E / Russia
Last midnight (by Moscow time) all transponders of Direct 1R were switched off, then part of transponders of Express AT1 are switched on for testing and TV content filling. NTV Plus Vostok provider going to use Right Circular polarisation, while Tricolor TV Siberia will use Left Circular polarisation.
These carriers are active at the moment:
11996L, 12034L, 12073L, 12188L, 12265L, 12341L, 12418L, 12111L, 12149L, 12226L, 12303L, 12380L, 12456L (Tricolor TV Siberia).
12169R, 12245R, 12322R, 12399R, 12476R (NTV Plus Vostok).


Attachments

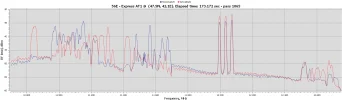

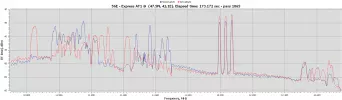

  • 56.0E-RFScan_1065.png
    138.7 KB · Views: 31

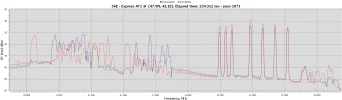

  • 56.0E-RFScan_1071.png
    141.9 KB · Views: 28

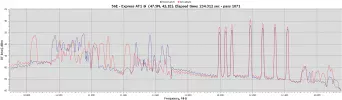

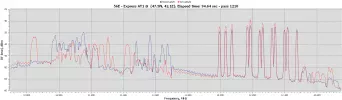

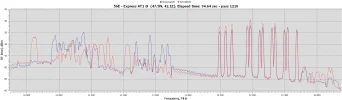

  • 56.0E-RFScan_1210.png
    154 KB · Views: 26
  • 56.0E-RFScan_1215.png

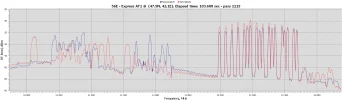

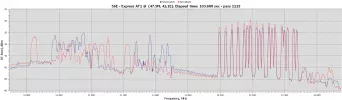

    168.5 KB · Views: 27

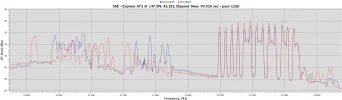

  • 56.0E-RFScan_1226.png
    153.5 KB · Views: 29
  • 56.0E-RFScan_1249.png

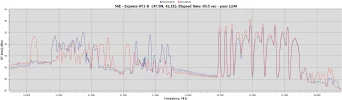

    151.4 KB · Views: 30
  • 56.0E-RFScan_1255.png

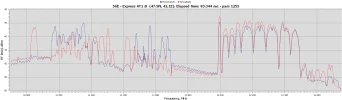

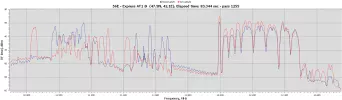

    150.5 KB · Views: 27
  • 56.0E-RFScan_1354.png

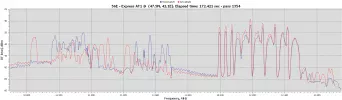

    149.7 KB · Views: 29

hvdh

Specialist Contributor
Joined
Dec 10, 2004
Messages
2,357
Reaction score
3,336
Points
113
Age
59
Website
gso-satellites.nl
My Satellite Setup
Dr.HD F16, TBS 5927, T-55, Laminas 120 cm
My Location
Oss, NL (5.5°E 51.8°N)
These three peaks 11996, 12034 and 12073 are strong here in NL, probably another beam.
Nothing above these yet.


mar-val

Regular Member
Joined
Oct 11, 2012
Messages
205
Reaction score
372
Points
63
My Satellite Setup
DR.HD F15,TBS 6983,dishes 70-220
My Location
Slovakia,Zilina

Captain Jack

Burnt out human
Joined
Oct 21, 2006
Messages
11,797
Reaction score
7,980
Points
113
My Satellite Setup
See signature
My Location
North Somerset
Wow - that's a very strong signal! Anyone else getting these in Europe?


Kveys

Regular Member
Joined
Oct 7, 2012
Messages
868
Reaction score
1,219
Points
93
Age
56
My Satellite Setup
125 Gibertini, Stab-120 (30W-86.5E), TM-F3/5/TM-5302HD+230Pf (C-band 40.5W-87.5E)
My Location
Southern Finland
Which beam they using, east only? 11996/12034 give weak signal but nothing from other frequencies. That another beam should be strong also here in Finland. I just tried with Inverto circular Lnb but maybe I mess up something or east beam only so far..?


mar-val

Regular Member
Joined
Oct 11, 2012
Messages
205
Reaction score
372
Points
63
My Satellite Setup
DR.HD F15,TBS 6983,dishes 70-220
My Location
Slovakia,Zilina
it is end of promo here,russians tuned downlink antenna and now I can hardly get 12384L...<_<


Captain Jack

Burnt out human
Joined
Oct 21, 2006
Messages
11,797
Reaction score
7,980
Points
113
My Satellite Setup
See signature
My Location
North Somerset
Are you using a circular LNB for that?


hvdh

Specialist Contributor
Joined
Dec 10, 2004
Messages
2,357
Reaction score
3,336
Points
113
Age
59
Website
gso-satellites.nl
My Satellite Setup
Dr.HD F16, TBS 5927, T-55, Laminas 120 cm
My Location
Oss, NL (5.5°E 51.8°N)
So for the record, with 120 cm and linear LNB, 11996L, 12034L and 12073L were booming in with over 15 dB S/N, after entry of symbolrate 27500. Not lockable though.

Since about noon UTC, the S/N of these three has dropped to about 3.5 dB.

No trace of anything above 12.1 GHz here.


Captain Jack

Burnt out human
Joined
Oct 21, 2006
Messages
11,797
Reaction score
7,980
Points
113
My Satellite Setup
See signature
My Location
North Somerset
Wonder how much improvement you'll get using a circular LNB.


Captain Jack

Burnt out human
Joined
Oct 21, 2006
Messages
11,797
Reaction score
7,980
Points
113
My Satellite Setup
See signature
My Location
North Somerset
Ah OK, that's more or less the same thing :)


huve

Member
Joined
Jul 23, 2012
Messages
70
Reaction score
88
Points
18
Age
43
My Satellite Setup
Faval SH 100, Mystique SaTiX-S2 Sky V2 USB, GI 110 cm, Inverto Black Ultra single
My Location
Helsinki
I get three circular polarised transponders with IBU in Helsinki, strong signal with misaligned 110 cm dish. 12 dB with GB Quad nonsense decibels. Same channels found with V and H polarisation, so it's circular. I have same thing with TNV at 36E. All 15 are HD channels and six of them encrypted. DVB-S2 27500, propably 8PSK 3/4.

11996L 5 encrypted channels, 12034L 5 ch (1 enc, 4 FTA), 12072L 5 FTA channels. Using network search goes through several other transponders, but finds nothing from them, propably they are in siberian beam.


hvdh

Specialist Contributor
Joined
Dec 10, 2004
Messages
2,357
Reaction score
3,336
Points
113
Age
59
Website
gso-satellites.nl
My Satellite Setup
Dr.HD F16, TBS 5927, T-55, Laminas 120 cm
My Location
Oss, NL (5.5°E 51.8°N)
Yes I think so too. the three L transponders mentioned are wide beam , the rest is Siberian beam.

The three wide beam peaks are still here, but no dB reading any more.
Signal drop-off over Germany must be very steep according reports: in the East they are locked quite easily, in the West no chance.
