Es'hail 2 25.8°E channels

dreamsat

Specialist Contributor
Joined
Mar 23, 2018
Messages
1,332
Reaction score
2,110
Points
113
My Satellite Setup
2,20m Kathrein, 3,7m Andrew, KU,KA,C,C-Ext. LNBs
My Location
germany
Between 11310-11430 I have no problems. Neither vertically nor horizontally. Everything is received.


lovelyperson

Dreamer
Joined
Sep 8, 2004
Messages
1,053
Reaction score
1,900
Points
113
Location
Alicante, España
My Satellite Setup
2.0m PF dish
1.8m PF Famaval
1.8m PF Marrafa
1.4m Tecatel offset
1.2m dish + Stab HH120
TBS 5925 USB
Octagon SF8008 4k Twin + SF8008 SUPREME + Uclan Ustym 4K PRO Twin
GTMedia V8 UHD
GTMedia GTcombo x 2
Goldmaster SR525 HD
Geant-OTT 750 ALLURE EVO 4K + Sat-illimitè F300 hyper
62.0ºE - 63.0ºW
My Location
Alicante, España
10730H 5.8db
10730V 8.0db
10770H -
10770V -
10810H 7.2db
10810V 7.2db
10850H 7.8db
10850V 6.8db
10890H 7.8db
11310H -
11310V -
11350V -
11390H -
11390V -
11430V -
Used to receive 11350H when it had easier fec. Signal was around 5db then
I notice that 11350 H is not used in Flysat or Lyngsat!

Really nice to see that some members here are seeing/locking frequencies not so good previously, guess others may be a little worse off.....as always, depends on dish size, location etc.

Alicante, España......full scan tonight 18.40hrs 1.8m Marrafa PF, Goldmaster SR525 HD.... .cloudless sky, 24.2ºC:-



ocean04

Regular Member
Joined
Aug 24, 2006
Messages
236
Reaction score
383
Points
63
Location
Vaasa
My Satellite Setup
3m 28.5E (53E-8W), 2.4m Aerial AS24 (68.5E-47.5W), Edision OS MIO 4K, Octagon SF8008, Vu+ Zero 4K..
My Location
Western Finland (63N 22E)
I notice that 11350 H is not used in Flysat or Lyngsat!
It was used before, but not anymore. When it was used, signal was usually around 5db here. Current 11310-11430 needs at least 6.8db


AtOM13

Member
Joined
Feb 27, 2024
Messages
139
Reaction score
140
Points
43
Age
40
Location
near Marseille
My Satellite Setup
Triax 100cm, lnb Inverto black Ultra
CM120cm Laminas 150cm
My Location
Marseille
10730H : 7.5db (46%SQ) easiest to lock ( from 5db 31% SQ)
10730V : 7.5db
10770H -
10770V -
10810H : 7.5db (lock at 7.2db)
10810V -
10850H -
10850V -
10890H -
11310H -
11310V -
11350V -
11390H -
11390V -
11430V -


AtOM13

Member
Joined
Feb 27, 2024
Messages
139
Reaction score
140
Points
43
Age
40
Location
near Marseille
My Satellite Setup
Triax 100cm, lnb Inverto black Ultra
CM120cm Laminas 150cm
My Location
Marseille

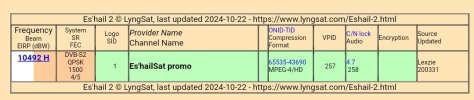

Someone already lock this channel ?
I suppose that a Bullseye lnb is compulsory


ocean04

Regular Member
Joined
Aug 24, 2006
Messages
236
Reaction score
383
Points
63
Location
Vaasa
My Satellite Setup
3m 28.5E (53E-8W), 2.4m Aerial AS24 (68.5E-47.5W), Edision OS MIO 4K, Octagon SF8008, Vu+ Zero 4K..
My Location
Western Finland (63N 22E)
Someone already lock this channel ?
I suppose that a Bullseye lnb is compulsory
Works here directly with Revez HDS610 + IBU. It's possible to receive with normal LNB if receiver can tune 10492, but unfortunately most have software limitation at least.
Tested few receivers about year ago and also got it working with Edision os mio, VU+Zero4k and VU+Uno4k (but only after editing frequency range in tuner driver)


AtOM13

Member
Joined
Feb 27, 2024
Messages
139
Reaction score
140
Points
43
Age
40
Location
near Marseille
My Satellite Setup
Triax 100cm, lnb Inverto black Ultra
CM120cm Laminas 150cm
My Location
Marseille
Ok thanks! Maybe I have a chance to lock it with my old Vu+Duo


ocean04

Regular Member
Joined
Aug 24, 2006
Messages
236
Reaction score
383
Points
63
Location
Vaasa
My Satellite Setup
3m 28.5E (53E-8W), 2.4m Aerial AS24 (68.5E-47.5W), Edision OS MIO 4K, Octagon SF8008, Vu+ Zero 4K..
My Location
Western Finland (63N 22E)
Maybe I have a chance to lock it with my old Vu+Duo
Vu+Duo it might also be possible but needs modification to dvb-bcm7413.ko (with HxD editor)


AtOM13

Member
Joined
Feb 27, 2024
Messages
139
Reaction score
140
Points
43
Age
40
Location
near Marseille
My Satellite Setup
Triax 100cm, lnb Inverto black Ultra
CM120cm Laminas 150cm
My Location
Marseille
I found "dvb-bcm7335.ko" in lib/modules/3.9.6/extra .
I installed HxD editor, open "dvb-bcm7335.ko" but I can't find where to change value :confused


ocean04

Regular Member
Joined
Aug 24, 2006
Messages
236
Reaction score
383
Points
63
Location
Vaasa
My Satellite Setup
3m 28.5E (53E-8W), 2.4m Aerial AS24 (68.5E-47.5W), Edision OS MIO 4K, Octagon SF8008, Vu+ Zero 4K..
My Location
Western Finland (63N 22E)
I found "dvb-bcm7335.ko" in lib/modules/3.9.6/extra .
I installed HxD editor, open "dvb-bcm7335.ko" but I can't find where to change value :confused
You are right, vuduo uses dvb-bcm7335.ko (vuuno has dvb-bcm7413.ko)
But these are very old receivers and I don't have them to test.
Also if you do something wrong and receiver doesn't boot, you need to know how to recover it. -> Do at your own risk

Anyway, what you are looking for (Hex-values) is: F0 7E 0E 00 70 CE 20 00
F0 7E 0E 00 (reversed 0E7EF0) is 950MHz and 70 CE 20 00 (reversed 20CE70) is 2150MHz.
Changing "F0 7E 0E 00" to "60 AE 0A 00" makes it 700MHz. There is no guarantees it works. (Only tested Zero4k and Uno4k, where it does work)

Last edited:

AtOM13

Member
Joined
Feb 27, 2024
Messages
139
Reaction score
140
Points
43
Age
40
Location
near Marseille
My Satellite Setup
Triax 100cm, lnb Inverto black Ultra
CM120cm Laminas 150cm
My Location
Marseille
Just tested and it's not working, vu+ duo blocked, need to flash....
All is ok now, ready to try another method if you have one !


ocean04

Regular Member
Joined
Aug 24, 2006
Messages
236
Reaction score
383
Points
63
Location
Vaasa
My Satellite Setup
3m 28.5E (53E-8W), 2.4m Aerial AS24 (68.5E-47.5W), Edision OS MIO 4K, Octagon SF8008, Vu+ Zero 4K..
My Location
Western Finland (63N 22E)
Just tested and it's not working, vu+ duo blocked, need to flash....
All is ok now, ready to try another method if you have one !
Not sure what you mean blocked, you changed only those 3 bytes? HxD has also data comparison to verify. Also same file permissions should be added.

Other methods/options are "new" LNB. Device to change LNB frequency (not sure what it's called and where you can find one). Another receiver.

Added images from Uno4K


Attachments

  • 10492H1500_vuuno4k.jpg
    259.7 KB · Views: 25
  • vuuno4k_fr.jpg
    360.5 KB · Views: 26
  • vuuno4k.png
    111.7 KB · Views: 29
Last edited:

AtOM13

Member
Joined
Feb 27, 2024
Messages
139
Reaction score
140
Points
43
Age
40
Location
near Marseille
My Satellite Setup
Triax 100cm, lnb Inverto black Ultra
CM120cm Laminas 150cm
My Location
Marseille
Maybe I missed something...
I transfer dvb-bcm7413.ko with DCC into my PC open it with Hxd editor, modify "F0 7E 0E 00" line to "60 AE 0A 00", save and transfer again with DCC .
Then I reboot the Vu+, but it stays on "starting..." again and again without starting. So I have to flash the receiver.


Lexzie

Member
Joined
Feb 14, 2010
Messages
299
Reaction score
111
Points
43
Age
54
My Satellite Setup
Xtrend ET10000 DVB-C, DVB-S2, and IPTV
Dreambox DM920 DVB-C/DVB-S2X/DVB-T2
TBS 5925 USB-tuner
80 cm fixed dish (28.2E/23.5E/19.2E)
180cm Channel Master offset dish with polarmount (39E-34.5W, Ku-band)
My Location
The Netherlands
I received it with a modified B Band Convertor between a universal LNB and the receiver.

This upconverts the 740-749 MHz to fit in the 950-2150 MHz which every receiver can receive.
These are the settings with this converter used:


There are also specific LNB's for sale with a LOF of 9 GHz which converts 10.0-10.7 GHz to 1000-1700 MHz.

If you can receive the A71A DATV beacon at 10491.5 GHz and your receiver can go below SR 1000 you could try to receive the (temporary) transmissions of HAM radio amateurs. If they are transmitting you can see that on the Qatar-OSCAR 100 Wideband Spectrum Monitor.




AtOM13

Member
Joined
Feb 27, 2024
Messages
139
Reaction score
140
Points
43
Age
40
Location
near Marseille
My Satellite Setup
Triax 100cm, lnb Inverto black Ultra
CM120cm Laminas 150cm
My Location
Marseille
View attachment 158396

There are also specific LNB's for sale with a LOF of 9 GHz which converts 10.0-10.7 GHz to 1000-1700 MHz.
Just try it with Bullseye lnb but still doesn't have these frequencies.

One line is missing in my tuner parameters:1000033954.png


Lexzie

Member
Joined
Feb 14, 2010
Messages
299
Reaction score
111
Points
43
Age
54
My Satellite Setup
Xtrend ET10000 DVB-C, DVB-S2, and IPTV
Dreambox DM920 DVB-C/DVB-S2X/DVB-T2
TBS 5925 USB-tuner
80 cm fixed dish (28.2E/23.5E/19.2E)
180cm Channel Master offset dish with polarmount (39E-34.5W, Ku-band)
My Location
The Netherlands
Just try it with Bullseye lnb but still doesn't have these frequencies.

One line is missing in my tuner parameters:View attachment 158399
You just use the Bullseye LNB without a convertor?

Is your receiver capable of receiving below 900 MHz?


AtOM13

Member
Joined
Feb 27, 2024
Messages
139
Reaction score
140
Points
43
Age
40
Location
near Marseille
My Satellite Setup
Triax 100cm, lnb Inverto black Ultra
CM120cm Laminas 150cm
My Location
Marseille
Yes, I use Bullseye lnb without convertor and I change settings like yours but I definitely think that my old Vu+ Duo is not capable to scan these low frequencies (Tuner is BCM733) unless modification on tuner driver.
I give up for these frequencies, but keep hope to get others Bein frequencies on Es'hail 2 later :)


Lexzie

Member
Joined
Feb 14, 2010
Messages
299
Reaction score
111
Points
43
Age
54
My Satellite Setup
Xtrend ET10000 DVB-C, DVB-S2, and IPTV
Dreambox DM920 DVB-C/DVB-S2X/DVB-T2
TBS 5925 USB-tuner
80 cm fixed dish (28.2E/23.5E/19.2E)
180cm Channel Master offset dish with polarmount (39E-34.5W, Ku-band)
My Location
The Netherlands
I'm quite sure your tuner has an input frequency of 950-2150 MHz, while the output on the LNB.side from 10,490 GHz is 740 MHz.
My tuner settings are when you also use an BBC upconverter like in the picture.
Without it you just select universal LNB, but again you can't tune into 10,490-10,499 GHz.


s-band

Member
Joined
Feb 7, 2016
Messages
1,252
Reaction score
2,003
Points
113
My Satellite Setup
1.5m IRTE PF, Invacom SNF-031, TBS6983,
Various L, S, C, X & Ka bits. 1.2m S/X/Ku/Ka Prodelin on Az-El (being refurbished), 1.8m Precision PF with Bullseye Ku LNB or various C & X bits
My Location
Essex
