40E Express AM7

[Satfaca]

I can only speculate why you're not experiencing any interference there, one would be there is no 5G there, the second idea would be that your antenna is just about enough below the line those mobile antennas radiate...

Here the screenshot of 40E scan, note that anything locked between 3.600-3.810 GHz is practically useless, no video can be watched most of the time.


This is ilustrative how signal looks like in the "interference band" and in undisturbed part of it. Look at the SNR level jumping up & down for 3.608 LH.


BTW, this is one of the strongests if not the strongest C-band satellite in the arc.
Titanium C138 anti-5G LNBF test coming next spring/summer.



[dreamsat]

my scan in L
I have a little bit interverence in the near from 3500 to 3600 GHz. I can't lock.



[satesco]

my scan in L
I have a little bit interverence in the near from 3500 to 3600 GHz. I can't lock.

Great, your spectrum looks clean, even if you say you have interference at 3500-3600 MHz. I don't really see it. I think the last active is 3576 L below 3600 MHz. The ones reported on KingofSat don't seem to be valid anymore(?).

There are a few frequencies in the Right pol that I haven't seen locked in any report, at least the ones that show up on my spectrum. They're shown in the analyzer below. One of them, 4015 also appears on the Left on yours(?!).
I thought maybe the signal is too weak with my antenna, or because of interference.
I've tried other cards besides the 6983, but without success. What are your results on this polarity?



[dreamsat]

Yes, the 3576 L is still active but due to the interference I can't get a lock and the 16 DB are only very rarely visible in the blind scan. I can also see the 4015 on both levels and without lock.



[satesco]

4066 L,15370,3/4,8PSK,T2-MI, PLP 0 & 1: T2-MI RTRS
Found today, used LNB Titanium-C138 (3800-4200 MHz band).



[dreamsat]

Thanks @satesco

here also



[satesco]

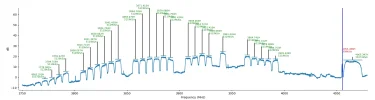

I also scanned with neumoDVB at 40.0E C-band:



[satesco]

I scanned today at 40.0E with LNB Mediastar 5G(3700-4200 MHz).
One advantage of this LNB is that it reads the signal at 3700 MHz, which got me, as expected, one more transponder on the spectrum, say Titanium C138(#125 above).



[SimonE]

Currently I have my Primesat LNB on my 1.2m CM dish looking at 40E. The signal reported on 4065L has moved to 4085L with MER of 10.6dB here. All the FTA channels resolve and amazingly I find my GT Combo translates the EPG into English.



[dreamsat]

my scan with VMA streamreader
