43.1°W (Intelsat 11)

Discussion in 'C-Band Reception, UK and Europe' started by Vipersan, Nov 8, 2012.

  1. Laser

    Laser Member

    Joined:
    Dec 24, 2011
    Messages:
    348
    Likes Received:
    268
    Trophy Points:
    63
    My Satellite Setup:
    Dr HD F15 x 2, 1Dr HD D15, Technomate 5502HD , Technomate 5402HD MK3, + 1.2 Channel Master Dish. + 1.1 Triax. Both motorised, 53e - 45w. Inverto Black Ultra .2db lnbs on both dishes.
    My Location:
    Berkshire
    I remember in the past a number of Ku Band Channels from 43 west

  2. Lazarus

    Lazarus Tout Rond Bon Oeuf Staff Member

    Joined:
    May 29, 2009
    Messages:
    23,085
    Likes Received:
    6,272
    Trophy Points:
    113
    My Satellite Setup:
    80cm Motorised.
    Several small Dishes.
    Much else.
    My Location:
    North York Moors
    Yes indeed. Must be around five years since the last one departed.

    There's still RASDTV on 45W, though.

  3. aceb

    aceb Specialist Contributor

    Joined:
    Oct 2, 2007
    Messages:
    1,299
    Likes Received:
    629
    Trophy Points:
    113
    My Satellite Setup:
    Prof Tuner 7301 /
    1.25m Gibertini + Inverto B.Ultra/C1W, Moteck H180, 68.5E-67W Ku/C-Band /
    1.8m Precision PF + ESX241/Inverto Black Pro, 66E-63W Ku/C-band /
    2.4m Fortec Star+Titanium C1W/Pride plate, 49E-58W
    My Location:
    Sussex
    Anyone interested in this sat then Cholusat Sur 36 on 3877V is a very healthy 8.9dB this morning.

    blademedia and Vipersan like this.
  4. Captain Jack

    Captain Jack Модератор Staff Member

    Joined:
    Oct 21, 2006
    Messages:
    9,539
    Likes Received:
    6,552
    Trophy Points:
    113
    My Satellite Setup:
    See signature
    My Location:
    North Somerset
    Can't see that TP - doing a BS now. Is that on the 2.4 or 1.8m?

  5. Vipersan

    Vipersan Emmett Browns Ghost Staff Member

    Joined:
    Jun 29, 2009
    Messages:
    10,823
    Likes Received:
    6,536
    Trophy Points:
    113
    My Satellite Setup:
    IP9000HD +
    TD110 Dish and TD88 Dish in Tandem
    66°East to 60°West.
    AZbox PrmHD + OpnbxS9HD + Skybox + DrHD F15
    2x VboxII AZ-EL
    2 m+ Alcoa PF + BSC421 C-Band lnbf...
    +SS2/TwHnS2-3200 pci/TBS6925 pci
    1.5 Fortec Star -Gbox - HtoH Ku/Ka/C
    My Location:
    UK
    Gave it a go Paul ..
    Sadly nothing doing for me ..
    Lost 43W position on the Vbox some time ago ..so figured I might try and retrieve it .
    Started at Silverbird 37W and stepped West ..but not even a blip ..
    If it gets stronger let me know on this thread ..and I'll try again..
    Never was very strong at my QTH ...and the lnb is now off focus by a couple of degrees..
    cest la vie

  6. Captain Jack

    Captain Jack Модератор Staff Member

    Joined:
    Oct 21, 2006
    Messages:
    9,539
    Likes Received:
    6,552
    Trophy Points:
    113
    My Satellite Setup:
    See signature
    My Location:
    North Somerset

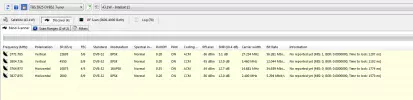

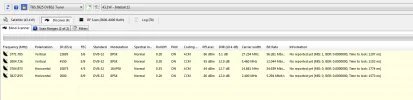

    Only some data transponders - some quite strong. 8PSK ones will lock on the F15 if only to find the position on the VBox again.


    scopus, Feedsat_DXer and Vipersan like this.
  7. dx qwer

    dx qwer Specialist Contributor

    Joined:
    Sep 5, 2008
    Messages:
    583
    Likes Received:
    510
    Trophy Points:
    93
    My Satellite Setup:
    C-Band: ORBITRON O-16 (4,9m)
    KU-Band: KATHREIN CAS 23 (2,20m)
    My Location:
    Rastatt/Germany
    Hi Captain Jack,

    your scan shows strong Europa-/Africabeam locks from Intelsat 14 @45.0°W. (Maybe known >>> sorry)

    PS: I can´t scan on 43.1°W atm, because too much snow here.

    Best Regards
    qwer.

    blademedia likes this.
  8. Captain Jack

    Captain Jack Модератор Staff Member

    Joined:
    Oct 21, 2006
    Messages:
    9,539
    Likes Received:
    6,552
    Trophy Points:
    113
    My Satellite Setup:
    See signature
    My Location:
    North Somerset
    Crap..... you're right.

  9. dx qwer

    dx qwer Specialist Contributor

    Joined:
    Sep 5, 2008
    Messages:
    583
    Likes Received:
    510
    Trophy Points:
    93
    My Satellite Setup:
    C-Band: ORBITRON O-16 (4,9m)
    KU-Band: KATHREIN CAS 23 (2,20m)
    My Location:
    Rastatt/Germany
    Hello,

    todays linear vertical scan.

    Best Regards
    qwer.


    Attached Files:

    Vipersan and Feedsat_DXer like this.
  10. aceb

    aceb Specialist Contributor

    Joined:
    Oct 2, 2007
    Messages:
    1,299
    Likes Received:
    629
    Trophy Points:
    113
    My Satellite Setup:
    Prof Tuner 7301 /
    1.25m Gibertini + Inverto B.Ultra/C1W, Moteck H180, 68.5E-67W Ku/C-Band /
    1.8m Precision PF + ESX241/Inverto Black Pro, 66E-63W Ku/C-band /
    2.4m Fortec Star+Titanium C1W/Pride plate, 49E-58W
    My Location:
    Sussex
    That was on the 2.4 CJ but it just locks on the 1.8 as well. This is the result of blindscanning it a few nights ago.
    1=3717,H,22000,56,8PSK
    2=3744,H,22000,56,8PSK
    3=3744,V,21610,34,8PSK
    4=3776,V,21700,56,8PSK
    5=3799,H,30000,56,8PSK
    6=3803,V,23300,56,8PSK
    7=3832,H,1000,34,32APSK
    8=3854,V,6249,34,8PSK
    9=3877,V,1546,34,QPSK
    10=3895,V,20200,23,8PSK
    11=3967,H,21090,34,QPSK
    12=3982,V,10000,34,8PSK
    13=3994,H,21090,34,QPSK
    14=4026,V,18530,78,QPSK
    15=4040,H,30800,78,QPSK
    16=4053,V,23780,34,8PSK
    17=4079,V,4400,34,QPSK
    18=4087,H,22000,56,8PSK
    19=4114,H,22000,56,8PSK
    20=4115,V,19580,34,8PSK
    21=4179,V,30000,34,8PSK

    Vipersan, otokoc and nelson_b like this.
  11. drhans

    drhans Member

    Joined:
    Oct 5, 2009
    Messages:
    44
    Likes Received:
    43
    Trophy Points:
    18
    My Satellite Setup:
    C-band: CM 240cm PF 34W-50W linear Avcomm feedring & OMT + 2x Astrotel Precision LNB & circular Avcomm polarizer + Zinwell LNBF, IRTE 180 cm 1W-34W + ESX241. DM820HD, VU+ Zero, DM500HDv2, Cisco D9865 AFN, TBS 5925 & 6983, XFinder
    My Location:
    Prague
    ... I assume not all of these did actually lock on your 2.4m, I'd find it very surprising. Especially 3803V or 4179V

  12. aceb

    aceb Specialist Contributor

    Joined:
    Oct 2, 2007
    Messages:
    1,299
    Likes Received:
    629
    Trophy Points:
    113
    My Satellite Setup:
    Prof Tuner 7301 /
    1.25m Gibertini + Inverto B.Ultra/C1W, Moteck H180, 68.5E-67W Ku/C-Band /
    1.8m Precision PF + ESX241/Inverto Black Pro, 66E-63W Ku/C-band /
    2.4m Fortec Star+Titanium C1W/Pride plate, 49E-58W
    My Location:
    Sussex
    Isn't that what blindscanning does? As it was left to its own devices overnight I've no idea whether they would of produced a picture. I could only find one scan that showed both those you mentioned.


  13. drhans

    drhans Member

    Joined:
    Oct 5, 2009
    Messages:
    44
    Likes Received:
    43
    Trophy Points:
    18
    My Satellite Setup:
    C-band: CM 240cm PF 34W-50W linear Avcomm feedring & OMT + 2x Astrotel Precision LNB & circular Avcomm polarizer + Zinwell LNBF, IRTE 180 cm 1W-34W + ESX241. DM820HD, VU+ Zero, DM500HDv2, Cisco D9865 AFN, TBS 5925 & 6983, XFinder
    My Location:
    Prague
    Not always, your blindscan clearly finds also unlockable signals - if the SNR shown is correct. The only channels that would lock are 3966 and 3993 H. But it's interesting that your blindscan found very weak signals but didn't find stronger ones. I suppose this scan was done with 1.8m dish then.
