Astra 1P, reached the test position at 9,5°W.


solly

Specialist Contributor
Joined
Apr 18, 2004
Messages
6,678
Reaction score
3,891
Points
113
Age
54
My Location
Tel Aviv, Israel
any know the table band will be use astra 1p testing ?


Marcus_21

Specialist Contributor
Joined
Jan 21, 2010
Messages
467
Reaction score
1,813
Points
93
Location
Naples, Italy
Website
www.frequencyplansatellites.altervista.org
My Satellite Setup
Motorized dish Gibertini 150 cm + LNB Inverto Pro Quad PLL + actuator QARL 24"+ GBOX V3000... Motorized dish Gibertini 125 cm + LNB Inverto Pro Quad PLL + actuator 18" + V-Box II.
My Location
40.7N - 14.5E
Unfortunately the 9.5°W spectrum is slightly contaminated by nearby satellites... in particular Hellas sat 2, for a few hours, on the range 11450~11700 in horizontal polarity and Express AM44 on the range 10950~11200 and 11450~11700.

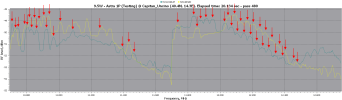

However this morning, when several low power transponders were turned on, I detected at least 48 of them simultaneously.

In the following hours, I detected some test carriers on the frequencies 11745 H, 12540 H, 10952 H and 11759 H.

9.5W-RFScan_1251.png 9.5W-RFScan_1335.png
9.5W-RFScan_1394.png 9.5W-RFScan_1649.png

Last edited:

max11

Member
Joined
Mar 9, 2024
Messages
16
Reaction score
16
Points
3
Age
25
My Satellite Setup
Motorized 180cm /3m fixed dish
My Location
Nowhere
Unfortunately the 9.5°W spectrum is slightly contaminated by nearby satellites... in particular Hellas sat 2, for a few hours, on the range 11450~11700 in horizontal polarity and Express AM44 on the range 10950~11200 and 11450~11700.
However this morning, when several low power transponders were turned on, I detected at least 48 of them simultaneously.

View attachment 158504
In the following hours, I detected some test carriers on the frequencies 11745 H, 12540 H, 10952 H and 11759 H.

View attachment 158505 View attachment 158506
View attachment 158507 View attachment 158508
View attachment 158509
You are the best source.. hats up. keep it up

Last edited:

solly

Specialist Contributor
Joined
Apr 18, 2004
Messages
6,678
Reaction score
3,891
Points
113
Age
54
My Location
Tel Aviv, Israel
Unfortunately the 9.5°W spectrum is slightly contaminated by nearby satellites... in particular Hellas sat 2, for a few hours, on the range 11450~11700 in horizontal polarity and Express AM44 on the range 10950~11200 and 11450~11700.
However this morning, when several low power transponders were turned on, I detected at least 48 of them simultaneously.

View attachment 158504
In the following hours, I detected some test carriers on the frequencies 11745 H, 12540 H, 10952 H and 11759 H.

View attachment 158505 View attachment 158506
View attachment 158507 View attachment 158508
View attachment 158509
the signal come frequency from astra 1l and 1m
3 tp it can be move to 1p in future
keep post more signal


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
2,160
Reaction score
3,112
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
10952 H and 11256 V-test carriers, off now,
11764 C and 12540 H test carriers


Attachments

  • Astra-10952 H-test carrier_2024-11-07_17-18-45.png
    Astra-10952 H-test carrier_2024-11-07_17-18-45.png
    79.7 KB · Views: 19
  • Astra-11256 V-test carrier_2024-11-07_17-17-19.png
    Astra-11256 V-test carrier_2024-11-07_17-17-19.png
    83.2 KB · Views: 17
  • Astra-11764 V and 12540 H-test carriers_2024-11-07_17-22-45.png
    Astra-11764 V and 12540 H-test carriers_2024-11-07_17-22-45.png
    219.2 KB · Views: 20

solly

Specialist Contributor
Joined
Apr 18, 2004
Messages
6,678
Reaction score
3,891
Points
113
Age
54
My Location
Tel Aviv, Israel
please write in same one see wide beam transponder write it


Marcus_21

Specialist Contributor
Joined
Jan 21, 2010
Messages
467
Reaction score
1,813
Points
93
Location
Naples, Italy
Website
www.frequencyplansatellites.altervista.org
My Satellite Setup
Motorized dish Gibertini 150 cm + LNB Inverto Pro Quad PLL + actuator QARL 24"+ GBOX V3000... Motorized dish Gibertini 125 cm + LNB Inverto Pro Quad PLL + actuator 18" + V-Box II.
My Location
40.7N - 14.5E
@solly, if you are interested in a summary of my carrier test screenshots, you can download them at this link: Astra-1P_05~08-November.rar

I didn't see any test carriers over the weekend.


Miika

Member
Joined
Jul 6, 2007
Messages
29
Reaction score
16
Points
3
Age
46
My Satellite Setup
MM9800S, TBS5925
My Location
Estonia
Actually it is worth to check with analog tuner, if someone still have one. Carrier width on Fortunix' Crazyscan screenshot is around 30 MHz (analog was 27 or 36 MHz wide) and as we know, new satellites are often tested with analog PAL carriers.

I have many analog satellite boxes, but i have to install antenna for 1P - it is now complicated, as Sun gets down very early and its cold outside this time of year in Estonia.

Have 1P strong signals? If yes, i can try with small dish.


wellikan

Member
Joined
Oct 5, 2015
Messages
53
Reaction score
97
Points
18
Age
44
Website
satdx.club
My Satellite Setup
Dr.HD 1000 Combo, Denys H.265, TBS 6903
GIBERTINI OP 150 S
My Location
Westport 53.81N,-9.54W
11977 H



Fortunix

New Member
Joined
Nov 3, 2024
Messages
3
Reaction score
11
Points
3
Age
39
My Satellite Setup
Andrew ES 370
My Location
Germany
Actually it is worth to check with analog tuner, if someone still have one. Carrier width on Fortunix' Crazyscan screenshot is around 30 MHz (analog was 27 or 36 MHz wide) and as we know, new satellites are often tested with analog PAL carriers.

I have many analog satellite boxes, but i have to install antenna for 1P - it is now complicated, as Sun gets down very early and its cold outside this time of year in Estonia.

Have 1P strong signals? If yes, i can try with small dish.
I have an analog receiver (TechniSat ST 3002 S) and a Philips CRT TV on my setup and you can see black screens on the strong carriers which have these ring shaped IQ constellations.

I observed different testing modes for the transponders on 1P being tested:
1. full bandwidth mode - lower power -> no "ring", no "black screen"
2. full bandwidth mode with narrow high power carrier at the transponder's centre frequency ->ring and black screen
3. full bandwidth mode with narrow high power carrier at the lower margin of the transponder (around -12 Mhz from centre frequency with a "tusk"-shaped spectrum on Crazyscan) ->ring and black screen
4. the same as 2. but without full bandwidth "basement" carrier

It is interesting to note that in some tests there are lower power peaks at the opposite polarization which seem to be switched on and off. I have a mechanical polarization skew motor on my setup which is optimized at 9.5 deg West.
