Where are the experts...when will be the transfer plan ??

Yesterday afternoon, when I checked the telemetry signals, they were very unstable and at times they disappeared completely, only to reappear... a sign that they were performing maneuvers on the satellite. After a few minutes they returned to normal, but frequently there were additional signals that appeared on the spectrum plot and they lasted until late morning. In subsequent checks additional signals had disappeared here and the polarity of the telemetry signals went linear... 10951,00 Vertical and 11449,00 Horizontal.
In the last check I carried out, I took measurements with respect to the astra satellites 1KR, 1L, 1M and 1N, and it appears to be positioned slightly further east (+/- 0,1°). Let's see if when they update the TLEs what I detected will be confirmed.

Marcus_21 said:
Yesterday afternoon, when I checked the telemetry signals, they were very unstable and at times they disappeared completely, only to reappear... a sign that they were performing maneuvers on the satellite. After a few minutes they returned to normal, but frequently there were additional signals that appeared on the spectrum plot and they lasted until late morning. In subsequent checks additional signals had disappeared here and the polarity of the telemetry signals went linear... 10951,00 Vertical and 11449,00 Horizontal.
In the last check I carried out, I took measurements with respect to the astra satellites 1KR, 1L, 1M and 1N, and it appears to be positioned slightly further east (+/- 0,1°). Let's see if when they update the TLEs what I detected will be confirmed.
Click to expand...
Hi Marcus, I can absolutely confirm your observations. I also concluded some kind of maneuvering effects on that. In addition, around noon there have been strong test carriers at 11449 V, similar to those that have been used on 9.5° west, but only for a few minutes. At the present time, I can not receive any telemetry beacon on either frequency.

Edit 5 pm: I checked once again, a weak telemetry beacon on 11449 H but with a slight deviation to north and east.

Last edited:
Thanks @Fortunix

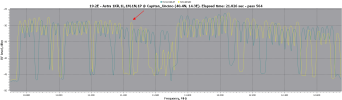

From the spectra that were saved from the PC, I can confirm that a peak appeared around the frequency 11450 V.

The telemetries are always active, even if the 10951,00 V, is very weak... it is likely that they are still on the omnidirectional beam.
A1P_10951.00_V.png A1P_11449.00_H.png

I downloaded the TLE data, updated from the SES sites and indeed 1P is at 19,27°, compared to the others that are between 19,19° and 19,24°.
Astra_1KR.png Astra_1L.png Astra_1M.png Astra_1N.png Astra_1P.png

Marcus_21 said:
Thanks @Fortunix

From the spectra that were saved from the PC, I can confirm that a peak appeared around the frequency 11450 V.
View attachment 160140

The telemetries are always active, even if the 10951,00 V, is very weak... it is likely that they are still on the omnidirectional beam.
View attachment 160141 View attachment 160142

I downloaded the TLE data, updated from the SES sites and indeed 1P is at 19,27°, compared to the others that are between 19,19° and 19,24°.
View attachment 160143 View attachment 160144 View attachment 160145 View attachment 160146 View attachment 160147
Click to expand...
will be tle will be update next few days

please check bicon 1kr and 1l will be move 0.1 deg or west or east

These last few days I haven't seen anything, today I have 59 channels on the Astra1N (Euro) tp 98 12363 V 27500 3/4 DVB-S/QPSK, these are new.
Estos últimos días no vi nada, hoy tengo 59 canales en el Astra 1N (Euro) tp 98 12363 V 27500 3/4 DVB-S/QPSK, estos son nuevos.


Since it is within the group of frequencies that it supports, I comment on it.
Como esta dentro del grupo de frecuencias que soporta, lo comento.
.

Indeed, there is a long list of channels on 12363 V.


Attachments

  • 12363 V,27500,34-2025-01-11_23-25-24.png
    12363 V,27500,34-2025-01-11_23-25-24.png
    212.4 KB · Views: 61
Thanks for sharing.... Are those channels belonging to 1p bird ????

satesco said:
Indeed, there is a long list of channels on 12363 V.
Click to expand...
Of the 59 channels indicated by that tp (with the equipment I have), the difference alarm only goes off on the 11 channels in green, which is why I mentioned it.
--------
De los 59 canales que indica ese tp (con el equipo que tengo), solo salto la alarma de diferencia en los 11 canales en verde, por eso lo comente.

max11 said:
Thanks for sharing.... Are those channels belonging to 1p bird ????
Click to expand...
In theory of the Astra 1N.....En teoria del Astra 1N.

Position now and downlinks of the Astra 1P/ Posición ahora y enlaces descendentes del Astra 1P

.

Last edited:
http://www.satellite-calculations.com/Satellite/satellitelist.php

And from partner max11/Del compañero max11................. post #96

astra 1p 19.2e

I have an analog receiver (TechniSat ST 3002 S) and a Philips CRT TV on my setup and you can see black screens on the strong carriers which have these ring shaped IQ constellations. I observed different testing modes for the transponders on 1P being tested: 1. full bandwidth mode - lower power...
www.satellites.co.uk www.satellites.co.uk
.

Tururu said:
Of the 59 channels indicated by that tp (with the equipment I have), the difference alarm only goes off on the 11 channels in green, which is why I mentioned it.
--------
De los 59 canales que indica ese tp (con el equipo que tengo), solo salto la alarma de diferencia en los 11 canales en verde, por eso lo comente.


In theory of the Astra 1N.....En teoria del Astra 1N.

Position now and downlinks of the Astra 1P/ Posición ahora y enlaces descendentes del Astra 1P

View attachment 160231
.
Click to expand...

Tururu said:
Of the 59 channels indicated by that tp (with the equipment I have), the difference alarm only goes off on the 11 channels in green, which is why I mentioned it.
--------
De los 59 canales que indica ese tp (con el equipo que tengo), solo salto la alarma de diferencia en los 11 canales en verde, por eso lo comente.


In theory of the Astra 1N.....En teoria del Astra 1N.

Position now and downlinks of the Astra 1P/ Posición ahora y enlaces descendentes del Astra 1P

View attachment 160231
.
Click to expand...

Technik​

7:39 PM (38 minutes ago)
to me



Hello regallo
20 january to 21 january tp move 1p


tp 19 11494h
tp 21 11523h
tp 25 11582h
tp 39 11053h
tp 61 will be 10891h mdr to 1p will be later !!

Last edited:
I will note the TP levels to observe differences. after that date.
90cm motorized and 56cm fixed.

.

Tururu said:
Of the 59 channels indicated by that tp (with the equipment I have), the difference alarm only goes off on the 11 channels in green, which is why I mentioned it.
--------
De los 59 canales que indica ese tp (con el equipo que tengo), solo salto la alarma de diferencia en los 11 canales en verde, por eso lo comente.


In theory of the Astra 1N.....En teoria del Astra 1N.

Position now and downlinks of the Astra 1P/ Posición ahora y enlaces descendentes del Astra 1P

View attachment 160231
.
Click to expand...
Band f and g was test signal maybe sky de canal plus France high band move

Note the time of the signal to see where the satellite/reference is.
Apuntar la hora de la señal para ver donde esta el satelite/referencia.
.
