C-Band Extended

[John]

65West Extended C-band.

4583. H. 4800. 2/3. DVB-S2 QPSK. FTA.
'Record News HD' . vpid:273. apid:274. SID: 59456
'Record News 1 Seg' . vpid:641. apid:643. SID: 59480
...........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................



[John]

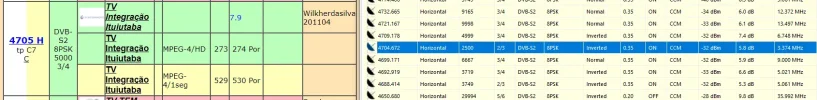

65West Extended C-band.

4704.5 H. 2500. 2/3. DVB-S2 8PSK. - FTA.
TV ALBA 1.Seg - - Vpid:358. Apid:359. Sid:1000
TV ALBA HD - - Vpid:258. Apid:259
No sign of adjacent channels on 4705 H.
****************************************************************************************************************************************************************************************************************************************************************



[John]

New for me, 65 West Extended C-band - ... 4732 H. 9166 . DVB-S2. 8PSK . 3/4. FTA . - 6ch mux.
..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................



[John]

New for me here in the UK, 4611H. 3749. DVBS2. 8PSK. 2/3



.................................................................................................................................................................................................................................................................................



[John]

New for me here in the UK, .. 4709 H. 4998. DVBS2. 8PSK. 3/4. fta.
.............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................



[scopus]

My first play at C Band extended at 40W seems to be OK. Using a corotor with the ku gubbings removed, a polo pipe made by Trust, with a cheapo extended LNB from China..Just a pity i can't get around to 65W..



[John]

My first play at C Band extended at 40W seems to be OK. Using a corotor with the ku gubbings removed, a polo pipe made by Trust, with a cheapo extended LNB from China..Just a pity i can't get around to 65W..View attachment 146668View attachment 146669

Looking good .



[Manikm909]

thats a lot of magic at the end of your LNB arms...yeah i think 55w is my limit



[satesco]

My first play at C Band extended at 40W seems to be OK. Using a corotor with the ku gubbings removed, a polo pipe made by Trust, with a cheapo extended LNB from China..Just a pity i can't get around to 65W..
...
View attachment 146669

Your picture of the lnb's illustrates what a DX is all about: for a weak signal, we install an actual "industry" to lock it down. Wow!
Congratulations, and Happy New Year, 2023!



[moonbase]

My first play at C Band extended at 40W seems to be OK. Using a corotor with the ku gubbings removed, a polo pipe made by Trust, with a cheapo extended LNB from China..Just a pity i can't get around to 65W..

Nice wan.



[dreamsat]

30,5° east Arabsat 5A 4689 R 34285 DVBS2/QPSK 4/5 it is DVBS2X



[dreamsat]

I think the polarity is LHCP. I haven't adjusted my setup optimally yet.



[John]

I think the polarity is LHCP. I haven't adjusted my setup optimally yet.

Agreed , LHC here .



[yang sat]

Agreed , LHC here .

Are you still using it?



[John]

Are you still using it?

I'm not using any of those shown in the picture, i'm using a 'Solid' 3.7-4.8GHz lnbf iv'e obtained from @anto@ to do a comparison exercise between a cheap 3.6 -4.8GHz lnbf against a far more expensive Norsat 8000RI lnb.
.........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................



[moonbase]

i'm using a 'Solid' 3.7-4.8GHz lnbf iv'e obtained from @anto@ to do a comparison exercise between a cheap 3.6 -4.8GHz lnbf against a far more expensive Norsat 8000RI lnb.

How does the SOLID compare to the Norsat



[John]

How does the SOLID compare to the Norsat

For the price - not too bad at all.
It seems to suffer from 5G infestation slightly more than the Norsat .. ie: a strong burst from the 5G nasty i have at 3.680 washes further down the band over the signals to what the Norsat does.
Gain and band flatness over the recieve span are very similar, the Norsat is better , frequency stability is pretty good for general purpose use, so all in all not too bad at all for the price



[dreamsat]

today it is better adjusted



[frankviana]

Hello!

Where we found thits 3.7-4.8GH lnbf?

Thx



[John]

Hello!

Where we found thits 3.7-4.8GH lnbf?

Thx

The 'Solid' 3.7-4.8GHz are sold by outlets in India
