Es’hail 2 25.5e

stephan94

stephan94

Specialist Contributor
Messages
514
My Satellite Setup
1.20 Channel master ( Paris)and 1200 Laminas ( Bavaria) KU and C Band
Openbox SX6 and S3 Mini, Dr HD 15, Octagon SF 4008 and Octagon SX88and SX8 HD One, TBS 6983
My Location
Bavaria and Paris
it's not Roland Garros
but only Roland (DG1MAJ)

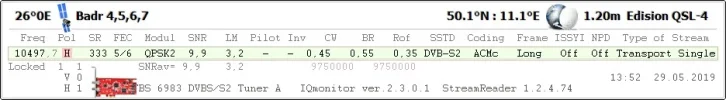

10497,7 H
333 5/6
QPSK2 DVB-S2
26°0E_1905291352.jpg26°0E_1905291352_10475-10514 H.jpg26°0E_10498_H_4918.jpg

adonis1

adonis1

Specialist Contributor
Messages
1,463
My Satellite Setup
Gibertini dish 1.55 Χ 1.66 ( 100.5°E -45.0°W) ku lnb Inverto Black Ultra 0.2db - Ku band Circular Uni Inverto BLACK Pro 0.2db / / C-Band lnb Titanium wide band - Pauxis 13°- K Panorama 13°K
DR.HD F-15 - Openbox S11 HD - TM-5402 HD M3.
My Location
Syros island - Central Aegean sea - Greece

10493 H 2000 2/3 DVB-S2/QPSK MPEG-4 Es’hail-2 @ 25.8° East

stephan94

stephan94

Specialist Contributor
Messages
514
My Satellite Setup
1.20 Channel master ( Paris)and 1200 Laminas ( Bavaria) KU and C Band
Openbox SX6 and S3 Mini, Dr HD 15, Octagon SF 4008 and Octagon SX88and SX8 HD One, TBS 6983
My Location
Bavaria and Paris
10498,76 H
sr 333
DVB-S2 QPSK2
FEC1/2
M0SKM

RustySpoons

RustySpoons

Sleepy Hollow
Messages
2,336
My Satellite Setup
50E - 30W
2x CM 1.2m Polar Mount/Jack
65E- 65W
Gibertini 1m OP100 - STAB HH100 - Inverto Black Ultra 0.2 Twin
Mutant HD51
Edision Primo IP S2
Dreambox DM800HD
Venton Unibox HD2
Sony Bravia 55" 4K
My Location
South Wales
Just bought a GTMedia Finder V8 (V73-HD, Latest Gold Colour Model)
Was just aligning one of my dishes and thought i'd see if this thing would work with the QO-100 Beacon, indeed it does and tunes outside the normal domestic satellite range. I will have to see if it will tune in lower SR's, LNB is a Octagon Quad Green


Last edited:
RustySpoons

RustySpoons

Sleepy Hollow
Messages
2,336
My Satellite Setup
50E - 30W
2x CM 1.2m Polar Mount/Jack
65E- 65W
Gibertini 1m OP100 - STAB HH100 - Inverto Black Ultra 0.2 Twin
Mutant HD51
Edision Primo IP S2
Dreambox DM800HD
Venton Unibox HD2
Sony Bravia 55" 4K
My Location
South Wales
Received DATV "CT1BYM"@ 1000KS
Device does not allow you to select below 1000KS, currently messing with ALI chipset editor, to see if I can manually add a channel with low SR.

125044125047

RustySpoons

RustySpoons

Sleepy Hollow
Messages
2,336
My Satellite Setup
50E - 30W
2x CM 1.2m Polar Mount/Jack
65E- 65W
Gibertini 1m OP100 - STAB HH100 - Inverto Black Ultra 0.2 Twin
Mutant HD51
Edision Primo IP S2
Dreambox DM800HD
Venton Unibox HD2
Sony Bravia 55" 4K
My Location
South Wales
Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
29,909
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
On the newly installed 80cm on the roof, and the ADX inline with the SF8008 I am getting a signal / noise ratio of 4.2db, which I will tweak slightly later.

Channel - A71A displayed, morse code and short video of the satellite launch.20190908_131637.jpg20190908_133249.jpg

Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
29,909
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
I have just uncovered a Philex converter which has no switch on it, purely in / out connectors, so I assume this just does the 250MHz downshift of frequency that was required for Astra 1D in the good old analogue days (now perched at 73 East)

No use on other satellites that I can see. Will run up tomorrow and compare losses with the Global unit.20190927_214934.jpg20190927_214923.jpg20190927_214915.jpg

Last edited:
satesco

satesco

Specialist Contributor
Messages
956
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
There's still activity(currently from Austria) on these sub-band transponders on Es'hail 1.


Attachments

Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
29,909
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
Apparently anybody with one of those iBravebox (or possibly the Freesat ) finders can also tune in without using one of the ADX/Astra 1D downconverters.

I will try, and report back after I've finished cooking.

hvdh

hvdh

Specialist Contributor
Messages
2,066
My Satellite Setup
Dr.HD F16, TBS 5927, T-55, Laminas 120 cm
My Location
Oss, NL (5.5°E 51.8°N)
I only recently have the TBS 5927 that allows 750 MHz input, the beacon 10491.5 H 1500 is about 11 dB.
Crazyscan found SR 500 and 333 signals, so this should be good enough, despite standard IBU LNB.

Analoguesat

Analoguesat

Administrator
Staff member
Messages
48,037
Location
Scottish Borders
My Satellite Setup
TM 5402HD
Skybox F3
Sky+ UK.
My Location
Scottish Borders
Apparently anybody with one of those iBravebox (or possibly the Freesat ) finders can also tune in without using one of the ADX/Astra 1D downconverters.

I will try, and report back after I've finished cooking.
My Dmyco doesnt (same meter, badge engineering)- it just says out of range if you try to go that low. :(

Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
29,909
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
Chipset editor (ALI)


Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
29,909
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
I
My Dmyco doesnt (same meter, badge engineering)- it just says out of range if you try to go that low. :(
I will reload the original software to see if it allows the lower frequencies , the July 19 version gives symbol rates below 1000 but fixes the if band settings the local oscillators of the most common lnbs.

hvdh

hvdh

Specialist Contributor
Messages
2,066
My Satellite Setup
Dr.HD F16, TBS 5927, T-55, Laminas 120 cm
My Location
Oss, NL (5.5°E 51.8°N)
I think the activities have started already on 10499.25 H 333, each British amateur takes about 5 min.
Quite a lot on other frequencies as well in the last hours (about 10).
Edit: I guess BST means standard time, not summer time! :-doh
8 Britische amateurs logged.

Last edited:
Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
29,909
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
I have some spectrum plots of the low band but no actual recordings , the main frequency is upwards of 75 dB above background level but the Shack outputs are only 3 dB or lower.

Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
29,909
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
Yesterdays's readout.


Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
29,909
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK
My Dmyco doesnt (same meter, badge engineering)- it just says out of range if you try to go that low. :(
I've tried old and older versions of the iBrave software here, neither will allow the analyser to go below the 10700 guard frequency. I do not have the original that was released with the finder prior to 20/07/18, which would have been version 1.



I can experiment with the other brand name software versions on the finder here tomorrow, though I will need some pointers on where they might be sourced.


Attachments

Last edited:
Analoguesat

Analoguesat

Administrator
Staff member
Messages
48,037
Location
Scottish Borders
My Satellite Setup
TM 5402HD
Skybox F3
Sky+ UK.
My Location
Scottish Borders
Ive been looking for Dymeco firmware this afternoon - I cant find anything. I did try one of the other manufacturers on it but it wouldnt recognise the flash bin.
