Eutelsat Hot Bird 13G

Mustafaiq1998x said:
Nasa TP 11373 H has decreased from 93 to 91 in SQ , and there's no picture in Nasa channel !
maybe it was transferred too
Click to expand...
99 % here but only black screen on NASA TV.

Signal test on muxes on Hotbird with 1.10m antenna in my area:


Attachments

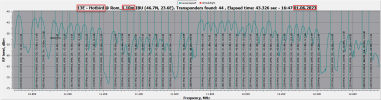

  • Hotbird_13.0E_10700-12750 H_2023-06-01_16-52-22.png
    Hotbird_13.0E_10700-12750 H_2023-06-01_16-52-22.png
    149.1 KB · Views: 30

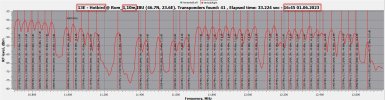

  • Hotbird_13.0E_10700-12750 V_2023-06-01_16-45-25.png
    Hotbird_13.0E_10700-12750 V_2023-06-01_16-45-25.png
    138 KB · Views: 28
Today around 15:50 (CET time) the transponder 156 11623,28 V, switched on.
Sembra che trasmette solo dati...


Looking at the spectra posted, I notice that the weakest signal is 12728 H,27500,3/4; in my area, the SNR is just over 7dB with 1.10 dish.
Also, in the upper band, I notice that some muxes with S2X extension are activated, with insufficient signal, which poses reception problems.
Note a new Data trp,at12665 V,15716,3/4, Multi 63.
So for the reception of these, you need a big antenna.


Attachments

  • 12728 H,27500,34,8psk-7.4dB_2023-06-01_17-34-03.png
    12728 H,27500,34,8psk-7.4dB_2023-06-01_17-34-03.png
    194.6 KB · Views: 22
  • 12665 V,15716,34,s2,multi 63-data_2023-06-01_17-45-00.png
    12665 V,15716,34,s2,multi 63-data_2023-06-01_17-45-00.png
    107 KB · Views: 20
  • 12539 H,31422,32.45,16apsk-data_2023-06-01_17-37-15.png
    12539 H,31422,32.45,16apsk-data_2023-06-01_17-37-15.png
    112.8 KB · Views: 17
  • 13.0E_12500-12750 HV_2023-06-01_18-06-38.png
    13.0E_12500-12750 HV_2023-06-01_18-06-38.png
    87 KB · Views: 16
any hope for signal increse? unfortunately large dished i mean even 100 or 110 cm dishes unavailable here and most dishes is 90 cm. so getting hotbird signal is difficult for most of iranians housholds.

Don't know what's going on

Signal for few tps increased and some tps have no signal like before if tps switched to same satellite how its possible that no signal on others tps and very strong signal on few


Either these are not migrated or the work is going on and thing's will be cleared in couple of weeks

eutelsat next week more big switft maybe from 13c to 13g last two tp
and old satellite 13b or 13e also more to 13g

A check from hotbird kingofsat indicates most channels on hotbird c and e have been moved to hotbird G, last night.

ymttt said:
A check from hotbird kingofsat indicates most channels on hotbird c and e have been moved to hotbird G, last night.
Click to expand...
The channels on HB 13E are still on that bird I think.
According to Kingofsat most of, if not all, the Sky Italia channels are on 13B but Lyngsat and Flysat have them on 13E which I think is more accurate.

Last edited:
Mustafaiq1998x said:
Does anyone know why NASA TV HD has a black screen since it moved to 13G ?
Click to expand...
Maybe the only way to get NASA is the UHD-version on 10727 H (one of the weakest transponders here only 78 %) or on 12687 V on Intelsat 10-02 at 1,0 W?

Signal of frequency 12322 H 27500 have been decreased force,the signal force is actually 52-57% - 96%

Dear all, I want to point out that among these transponders transferred to 13G, several TXPs moved initially to 13G waiting for moving again to the new 13F at the end of July (according to confidential Eutelsat material). So DON'T worry about less signal, loss of power. For sure the border footprint seems to be slight reduced, but anyway strong on most of Europe. Anyway all the next days Eutelsat will be testing the EIRP and final power level, up to the end of July with the coming of the other new 13F. Strong signals depend on the dish, LNB and perfect alignment !! Every a couple of years you should align your set, including the skew.
