GTMedia GTCombo 4:2:2 receiver

50.0E
11008 H 5000 8PSK 4:2:2
ID: ATV_SNG_1_BACKUP

11015 H 4980 8PSK 4:2:2
ID: SNG 4 ASIL

Trabzonspor - Sivasspor

Biss

ViaHussun said:
50.0E
11008 H 5000 8PSK 4:2:2
ID: ATV_SNG_1_BACKUP

11015 H 4980 8PSK 4:2:2
ID: SNG 4 ASIL

Trabzonspor - Sivasspor

Biss
Click to expand...
Many thanks

Picking up both on the Combo, with just a small amount of lag/dropout. I think it is the android system letting the receiver down, as opposed to the hardware at the sharp end.

Will grab a recording for others.


Attachments

  • 20220730_204540.webp
    332.2 KB · Views: 37
  • 20220730_204615.webp
    232.1 KB · Views: 33
lovelyperson said:
Tuner sensitivity...........GTMedia using GT combo and V8 UHD.

Today 13.00/14.00hrs using 1.8m PF on 5.0ºW with two transponders:- 11458 H 543 and 11465 H 667

Only my results but the V8 UHD tuner shows a better result than that of the GT combo.

11458 H 543 - GT combo nothing
11453 H 543 - V8 UHD 83/84% qualView attachment 140990View attachment 140991View attachment 140992

11465 H 667 - GT combo 69% quality
11453 H 667 - V8 UHD 75% quality ( no pic sorry)

View attachment 140993View attachment 140994View attachment 140995

Yes, test a bit rushed but will try another satellite when time allows.

All be safe.
Click to expand...
Hi my friend sorry i know that is off topic but i want to ask you what is the highest symbol rate of the v8 uhd and thank you for your comparison

stephan94 said:
He finds with the blindscan of the SRs of 45000
we can add a transponder with sr 51420 but it does not lock it (these are data)

View attachment 143087View attachment 143088View attachment 143089
Click to expand...
hi stephan have a nice day

may this will helps , some one successes to get 47000 .

also one more thing my friend had received this transponder from Eutelsat 21B @ 21.6° E
​
11268 V
DVB-S2X/64APSK​
7619 32/45​


but its very weak to looked

,satesco say

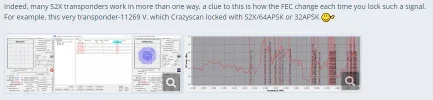

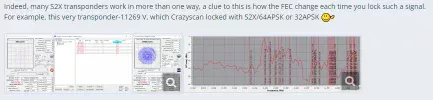

Indeed, many S2X transponders work in more than one way, a clue to this is how the FEC change each time you lock such a signal.

For example, this very transponder-11269 V, which Crazyscan locked with S2X/64APSK or 32APSK
:3:




www.satellitescommunity.de

21.6°E Eutelsat 21B - Satellites Community

10918 H,51427,5/9,S2X/16APSK,0.05,ACM,Multi 1,Vpid-256,Apid-257-new GS in S2X(feci01 :72: on FlySat)
www.satellitescommunity.de www.satellitescommunity.de


Attachments

  • sr47000.webp
    32.5 KB · Views: 36
  • 288878322_380659744045105_8151737077856223028_n.webp
    381.3 KB · Views: 31
  • 11268e21APSK64.webp
    7.7 KB · Views: 29
  • 11268.webp
    28.2 KB · Views: 30
Last edited:
For reference, Edision's Availink tuner locks this frequency without problem, it's clearly a tuner capability, not a receiver's one...

MCelliotG said:
For reference, Edision's Availink tuner locks this frequency without problem, it's clearly a tuner capability, not a receiver's one...
Click to expand...
yes you are right , there are some receivers like Gt media v8 UHD also it finds MIS automatically like edision

I've updated my GT Combo to C20.A9.1.18 OK. Only comment from here is that I had to set the display resolution again. All other settings seem remembered and unaltered. Anyone else found any problems or discoveries??

I appear to have some lip sync delay that changes in lag depending on the channel chosen. A reboot has not fixed it.

On the last version it would usually synchronise just by changing channel.

Anyone compared tuner sensivity when it concern fringe reception between GT Media GTcombo vs Octagon SX88+ HD Optima or OCTAGON SF8008 tuner sensivity. Thanks in advance .
