My first toroidal 90 multi dish install with 20 lnbs

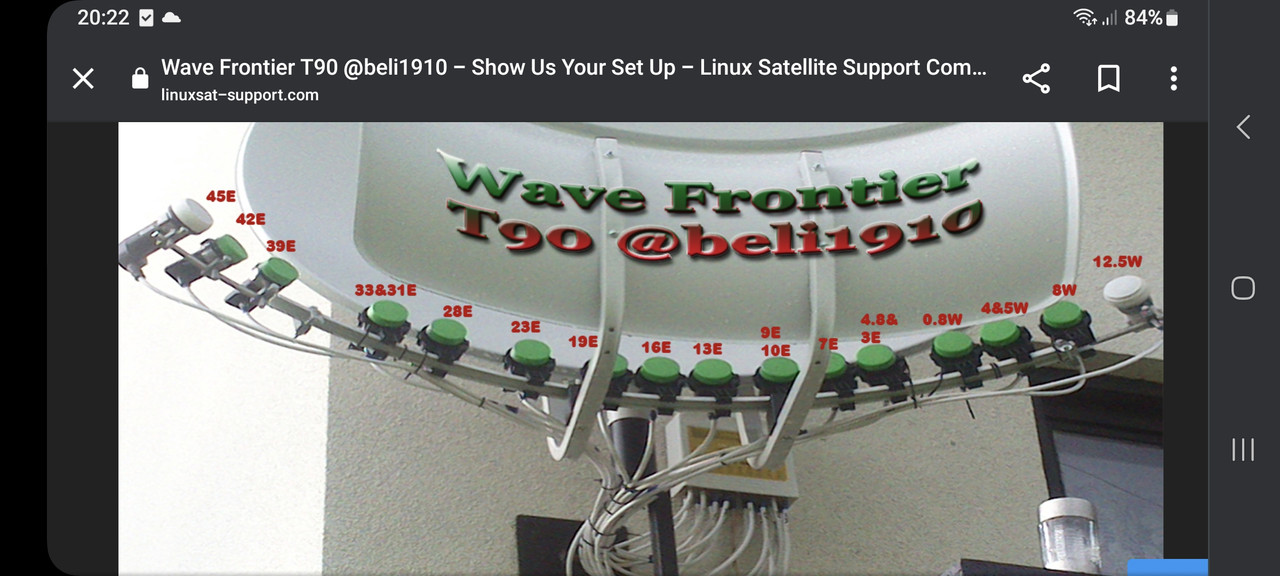

I didn't find a picture from 2012-2013 - I will attach it from the net. The first picture is from that time.

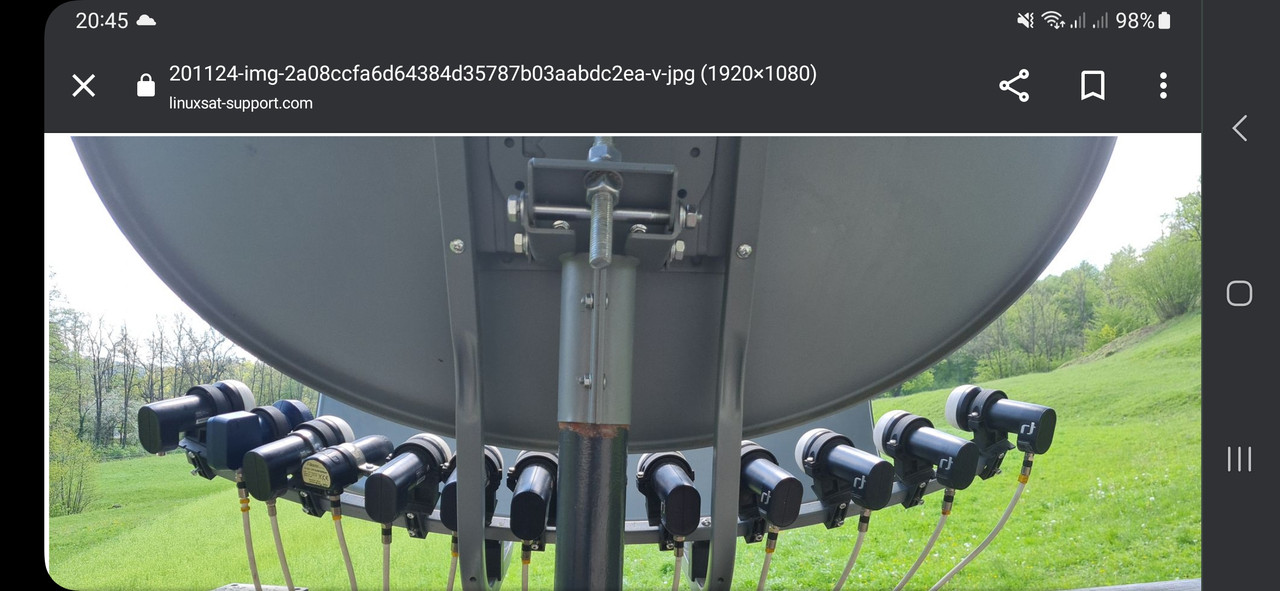

The second from 2021.


and the third picture the new antenna 2022-I gave the old one to a friend in a set.

Last edited:
When I finish the Laminas project, then there will be a new project to convert the t90 antenna into a t110 or t120. I have an idea, I just need to get started. I wonder how much the geometry of the antenna will bother me. But I think everything is possible. If I manage to raise the signal with the conversion 1 -2 db I will be satisfied

Beli1910 said:
I didn't find a picture from 2012-2013 - I will attach it from the net. The first picture is from that time.

The second from 2021.


and the third picture the new antenna 2022-I gave the old one to a friend in a set.
Click to expand...
thats a lot of cable management!!!! <headache>

Nothing special. At first I thought of installing twin LNBs, but later I just decided on single ones.

I am also going create a T90 dish, but am curios about otter members.
