Raven 1.8m Install Progress

M

moonbase

Small Dish Man
Messages
2,397
My Satellite Setup
2.0m Precision
My Location
UK
@mapperuo

That looks a useful type of clamp from the neewer range of products. Is it part of a tripod assembly or a standalone item?

M

mapperuo

Member
Messages
460
Location
Fife, Scotland
My Satellite Setup
Satellite Farm Revamp Underway
My Location
Fife, Scotland
@mapperuo

That looks a useful type of clamp from the neewer range of products. Is it part of a tripod assembly or a standalone item?
Aye it’s neewer, was a two pack of these


M

mapperuo

Member
Messages
460
Location
Fife, Scotland
My Satellite Setup
Satellite Farm Revamp Underway
My Location
Fife, Scotland
Maybe someone can confirm if this seems likely, but I have gained my missing 2db by replacing the O Ring in my C120 LNB - I thought they were just to keep water out but perhaps keep the signal in too?

Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
28,338
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK South
You may have removed some humidity in the feed during the dismantling.

M

mapperuo

Member
Messages
460
Location
Fife, Scotland
My Satellite Setup
Satellite Farm Revamp Underway
My Location
Fife, Scotland
Well the hard labour is almost done, I just have to reassemble the other Raven now it's in its new home.. then the wiring begins.. But it looks wet all weekend so doubtful we'll be done this week :(




scopus

scopus

Specialist Contributor
Messages
2,175
My Satellite Setup
Primesat/Famaval 1.8 PF C/ku/Ka, Octagon SX8HD1, SX88, Openbox S3 Mini HD-V8S Freesat V7 HD-V8 Finder, Amiko A4K Combo, Satlook Colour HD Spectrum, Sansui A909 Amp and BOSE Acoustimass speakers for the audio.
My Location
Staffs UK
Well the hard labour is almost done, I just have to reassemble the other Raven now it's in its new home.. then the wiring begins.. But it looks wet all weekend so doubtful we'll be done this week :(



Nice dish farm!

M

mapperuo

Member
Messages
460
Location
Fife, Scotland
My Satellite Setup
Satellite Farm Revamp Underway
My Location
Fife, Scotland
Aye, proper good kit, not a DiSEqC motor in sight as far as eye could see ?
Thanks all!

Just one, hiding at the front on the 1.2m Gibby, Only 3 motorised dishes to be fair. Rest are fixed.

Was going to motorise the 2nd 1.2m Gibby I have but decided to just fix it on 7e instead, 3 is plenty.

M

moonbase

Small Dish Man
Messages
2,397
My Satellite Setup
2.0m Precision
My Location
UK
...Just one, hiding at the front on the 1.2m Gibby, ...

Keep it hidden, it will spoil the appearance of a nice landscape.

jeallen01

jeallen01

Specialist Contributor
Messages
3,931
My Satellite Setup
See Signature
My Location
Somewhere in England (possibly?)!
Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
28,338
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK South
Where is the 3.8m going to sit ?

jeallen01

jeallen01

Specialist Contributor
Messages
3,931
My Satellite Setup
See Signature
My Location
Somewhere in England (possibly?)!
M

mapperuo

Member
Messages
460
Location
Fife, Scotland
My Satellite Setup
Satellite Farm Revamp Underway
My Location
Fife, Scotland
Been spending a while finalising the two Ravens, I have got them as good as they'll be and have some interesting results between the RX Feed Arms model and the TX/RX heavy duty arms:

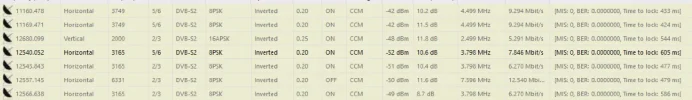

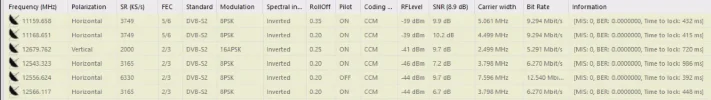

Scan of 16e on both 2 minutes apart, currently raining but OK for a comparison, showing about a 1-1.5db difference towards the TX/RX arms. Some freq comparisons are a bit higher than others which makes me wonder if I need to tweak the LNB skew a bit on one of them.

127263
127264

Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
28,338
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK South
The arms themselves 'shouldn't' make a difference of course, but unless you have LNBs with identical characteristics and there are no differences in the reception a couple of metres apart, you might be looking at subtle reflector imperfections, though again there shouldn't be. Try running a metal detector across the whole surface to verify the mesh runs right to the edges.

Even assemblers at the factory can have a bad day.
