SpaceX Eutelsat 36D
- Thread starter solly
- Start date
hatters1976
Member
- My Satellite Setup
- Stable Dish 2.40m (7w, 0.8w, 1.9e, 3e, 7e, 13e, 16e, 19e)
Gilbertini 1m (36e, 39e, 42e, 46e, 52e)
E-space 1.20m (9e)
Octagon sf8008, Edision os mio +4k, Gt Media GT Combo.
- My Location
- GR
Eutelsat 36D i believe soon in 36 east now is 66 east but still no testing reports ...
Marcus_21
Specialist Contributor
- My Satellite Setup
- Motorized dish Gibertini 150 cm + Space Digital SDLNB4 + actuator QARL 24"+ GBOX V3000... Motorized dish Gibertini 125 cm + Inverto Pro Quad PLL + actuator 18" + V-Box II.
- My Location
- 40.7N - 14.5E
It is still in the LEOP phase, another 2 or 3 months are still needed to reach geostationary orbit. Testing should take place at 48,4°E. Currently only the telemetry signals with frequencies 11701,80 RHCP and 12501,00 LHCP are active (11704,00 and 12502,00 are not active).
EnoSat
Specialist Contributor
- My Satellite Setup
- TBS-5927/5925/5220 , Dreambox , Edision , Mutant , Octagon , Uclan
- My Location
- Slovakia
Real time satellite tracking for: EUTE 36D
Track satellite(s) EUTE 36D and see where are they located now. Check when there will be the next pass over your location
www.n2yo.com
Marcus_21
Specialist Contributor
- My Satellite Setup
- Motorized dish Gibertini 150 cm + Space Digital SDLNB4 + actuator QARL 24"+ GBOX V3000... Motorized dish Gibertini 125 cm + Inverto Pro Quad PLL + actuator 18" + V-Box II.
- My Location
- 40.7N - 14.5E
This afternoon, carrier testing began...

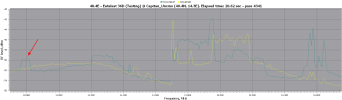

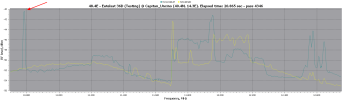

Around frequency 10790 H
Full
Around frequency 11680 V
Around frequency 12320 H
Back on frequency 10790 H
Full
The telemetry frequencies have been switched to linear polarity (11701.80 V and 11704.00 H). Previously in LEOP phase, they used the frequencies 11701.80 and 12501.00 in circular polarity.
Around frequency 10790 H
Full
Around frequency 11680 V
Around frequency 12320 H
Back on frequency 10790 H
Full
The telemetry frequencies have been switched to linear polarity (11701.80 V and 11704.00 H). Previously in LEOP phase, they used the frequencies 11701.80 and 12501.00 in circular polarity.
solly
Specialist Contributor
- My Location
- Tel Aviv, Israel
any scan x band ?
John
Enthusiast.
- My Satellite Setup
- Elite 2.2 PF with Multi lnb changer - CM1.2 - Gibertini 1.25.
Ku - Ka - Ext Ku - C & Ext C. X.
PC cards 6983,6903, main receiver GTX Combo. Ericsson RX8200.
Promax HDRanger+ & HDRanger2 Analysers.
- My Location
- North Nottinghamshire. UK.
Seen briefly this morning - very strong markers at 12.742 H & 11.609 H
John
Enthusiast.
- My Satellite Setup
- Elite 2.2 PF with Multi lnb changer - CM1.2 - Gibertini 1.25.
Ku - Ka - Ext Ku - C & Ext C. X.
PC cards 6983,6903, main receiver GTX Combo. Ericsson RX8200.
Promax HDRanger+ & HDRanger2 Analysers.
- My Location
- North Nottinghamshire. UK.
A little bit more activity ...
............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Attachments
Marcus_21
Specialist Contributor
- My Satellite Setup
- Motorized dish Gibertini 150 cm + Space Digital SDLNB4 + actuator QARL 24"+ GBOX V3000... Motorized dish Gibertini 125 cm + Inverto Pro Quad PLL + actuator 18" + V-Box II.
- My Location
- 40.7N - 14.5E
They have been testing on six frequencies since last night... 10739 V, 10784 H, 10867 V, 11609 H, 11692 V and 12742 H. The signals are not always active and change emission power very frequently.
Andreasgrdx
Member
- My Satellite Setup
- 85 cm ,100 cm ,120 cm KU 85.2E - 45.0W
- My Location
- Athens , Greece
Anybody has satellite analog receiver about these signal tests of Eutelsat 36D (48.5° East) ?
satesco
Specialist Contributor
- My Satellite Setup
- seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927, TBS5927SE USB & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
- My Location
- Romania
Tests on Eut 36D this morning.
The sub-band is off now.
10783 V test carrier
10785 H test carrier
10868 V test carrier
12625 V test carrier-new
12742 H test carrier
10704 V beacon
The rest are found by @Marcus_21
The sub-band is off now.
10783 V test carrier
10785 H test carrier
10868 V test carrier
12625 V test carrier-new
12742 H test carrier
10704 V beacon
The rest are found by @Marcus_21
Attachments
-
12500-12750 HV_2024-08-12_12-09-47.png -
12740 H-testa carrier_2024-08-12_11-32-16.png -
12625 HV-test carrier_2024-08-12_12-04-44.png -
10868 V-test carrier_2024-08-12_11-56-01.png -
10786 H-test carrier_2024-08-12_11-53-21.png -
10783 V-test carrier_2024-08-12_11-55-02.png -
10704 V-beacon_2024-08-12_12-44-01.png
Last edited:
Marcus_21
Specialist Contributor
- My Satellite Setup
- Motorized dish Gibertini 150 cm + Space Digital SDLNB4 + actuator QARL 24"+ GBOX V3000... Motorized dish Gibertini 125 cm + Inverto Pro Quad PLL + actuator 18" + V-Box II.
- My Location
- 40.7N - 14.5E
From the check I made a few minutes ago, the satellite is moving west, it has almost reached 48°E.
It had been a few days since we had seen test carriers... the telemetry on the frequency 11701,80 H had been turned off, while the telemetry on the frequency 12501,00 V had switched to the circular polarity LHCP.
Then a few hours ago there was a test carrier on the frequency 12226 V, then the telemetry on the frequency 11701,80 in horizontal polarity was on again.
It had been a few days since we had seen test carriers... the telemetry on the frequency 11701,80 H had been turned off, while the telemetry on the frequency 12501,00 V had switched to the circular polarity LHCP.
Then a few hours ago there was a test carrier on the frequency 12226 V, then the telemetry on the frequency 11701,80 in horizontal polarity was on again.
Marcus_21
Specialist Contributor
- My Satellite Setup
- Motorized dish Gibertini 150 cm + Space Digital SDLNB4 + actuator QARL 24"+ GBOX V3000... Motorized dish Gibertini 125 cm + Inverto Pro Quad PLL + actuator 18" + V-Box II.
- My Location
- 40.7N - 14.5E
The telemetry signal on 12501,00 has returned to vertical linear polarity.
hatters1976
Member
- My Satellite Setup
- Stable Dish 2.40m (7w, 0.8w, 1.9e, 3e, 7e, 13e, 16e, 19e)
Gilbertini 1m (36e, 39e, 42e, 46e, 52e)
E-space 1.20m (9e)
Octagon sf8008, Edision os mio +4k, Gt Media GT Combo.
- My Location
- GR
I think this satellite has delayed .... We are in September and its not in 36 east as yet!
Maybe all the new three satellites turksat eutelsat and astra will start together at the end of the year.
Maybe all the new three satellites turksat eutelsat and astra will start together at the end of the year.
hvdh
Specialist Contributor
- My Satellite Setup
- Dr.HD F16, TBS 5927, T-55, Laminas 120 cm
- My Location
- Oss, NL (5.5°E 51.8°N)
It's very normal for the recent satellites with only electric propulsion to need several months to reach GEO.
And as @Marcus_21 said, after a month of testing the satellite is probably on its way to 36°E as we speak, that could take a week or so.
And as @Marcus_21 said, after a month of testing the satellite is probably on its way to 36°E as we speak, that could take a week or so.
John
Enthusiast.
- My Satellite Setup
- Elite 2.2 PF with Multi lnb changer - CM1.2 - Gibertini 1.25.
Ku - Ka - Ext Ku - C & Ext C. X.
PC cards 6983,6903, main receiver GTX Combo. Ericsson RX8200.
Promax HDRanger+ & HDRanger2 Analysers.
- My Location
- North Nottinghamshire. UK.
Had a quick look - correct me if i'm wrong , i have a very strong marker at the 47.3°East area of 12.393GHz . Linear feed fitted here at the moment but it looks like a Circular pol signal but could be wrong.
...........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
hvdh
Specialist Contributor
- My Satellite Setup
- Dr.HD F16, TBS 5927, T-55, Laminas 120 cm
- My Location
- Oss, NL (5.5°E 51.8°N)
Yes, I see that carrier too (circle in Crazyscan), on both pol. but strongest at about 46.5°E.
Edit: this must be a fast-moving satellite, it's already near 46.0°E, you see that too?
Last edited:
Marcus_21
Specialist Contributor
- My Satellite Setup
- Motorized dish Gibertini 150 cm + Space Digital SDLNB4 + actuator QARL 24"+ GBOX V3000... Motorized dish Gibertini 125 cm + Inverto Pro Quad PLL + actuator 18" + V-Box II.
- My Location
- 40.7N - 14.5E
I checked, it already has over azerspace 1.
According to my somewhat rough calculations, it is moving about 0,6/0,7 degrees per day towards the west.
According to my somewhat rough calculations, it is moving about 0,6/0,7 degrees per day towards the west.
