Upcoming launch Yamal 402

I didn't checked if the signal is modulated or not, I just record spectrums in loop mode in CrazyScan. They uses mostly narrow-band carriers, so I think non modulated. But sometimes I have wide-band carrier, this one should be modulated.

The testing continues again. There were carriers on 11136V, 11160V and 11123H within last hour (after midnight by Moscow time)


Attachments

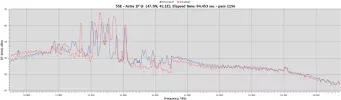

  • 55.0E-RFScan_1156.webp
    38.8 KB · Views: 59

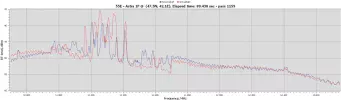

  • 55.0E-RFScan_1159.webp
    38.9 KB · Views: 57

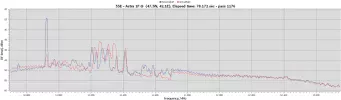

  • 55.0E-RFScan_1176.webp
    43.4 KB · Views: 51
According to a Russian forum, there were tests on European beam. Nothing seems to be modulated yet though :(

Finally since this morning, there is a signal on 11104V, looks like DVB but too weak to lock here (Russian or South beam)?
Other (testing) peaks occasionally, on 10845V or 11165V.

Dish is only Triax TD-110 (100 cm).

11104V seems to have symbolrate 12500, still not locking but that values gives a rather stable 2 dB reading on the Dr.HD F16.

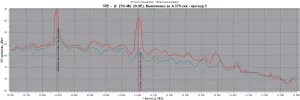

That's how 55E looks like from Kiev on Triax 1.1m


Attachments

  • 55.0E-RFScan.webp
    49.6 KB · Views: 74
Thanks miha20, so this must be the Russian beam indeed.

Suppose 11104V has no video/data (yet)?

Yes.11104V is empty
Test frequencies are with different signal power and without data

Can someone in UK try 11508 V SR 21000? Apparently it's an ACM/VCM transport stream and there was a successful report on an 85cm dish in London. But I can't see anything on my Uno... probably wouldn't get a lock anyway.

hi CJ just tried yamal 402 i get 11508V 21000 at 50% quality.

hi CJ did a scan on verticals 11508V has gone up in quality to 61% it scanned another transponder 11535V 45000 but after it finished scanning i checked that transponder but no signal unless they switched it off.

Thanks pride. Looks like my 85cm isn't enough for this. A 1.2m should pull it in - not that there's much there right now.

Just asked Mike near me to check it on his 85cm, L78 Q0-45, Q is jumping about a bit on his 6925. Attached image to show detail.


hi aceb 11058V has gone up to 76% quality its strong enough for some to get it.

The traffic from Astra 1F has been migrated to Y-402 according to Flysat


11303H
19260 3/4

Now can anyone in western Europe get these Russian beam channels??

The Russians are saying that nothing has changed and someone at PR dept was a little over-excited.

Those in eastern Russia, where Yamal 402 signal should be booming in, are receiving nothing.

This bird seems to be pretty hard to get for existing location of my antenna. And that is because of neighbor's house, and elatedly towards ~49*E-60*E I have bad-reception-zone. Footprint of Yamal 402 in my area is already weak and with this obstacle seems to be almost impossible to get anything. So, I am out of this till I put another antenna some ~5 meters Westwards.
ScreenHunter_25 Feb. 11 20.15.webp

Nothing here also. It should be quite strong as early 11103V (data).

The Y-402 North & Europe beams look reasonable for the UK & north west Europe :)

hi all a few days ago when they were testing the transponders i picked up quite a few with quality strenth at 79%,lower 70% and 60% today not a peep out of any of them,the only transponder with any life is 11483H 4419 with 78% quality no lock.
