va 227 badr 7 26e

[Analoguesat]

Mission success - both sats safely delivered into orbit.

This rather nice graphic shows Gsat15 passing over India prior to release from the composite



[william-1]

Ku band Downlink Footprint



[adonis1]



[solly]

Real time satellite tracking for: BADR 7

satellite under orbit



[AndyX]

Footprints available on
Arabsat - BADR-7
West Africa one looks interesting.



[Marcus_21]

I intercepted this morning two signals telemetry at about 24,4°E, frequency 11200,50 LHCP and 11202,00 RHCP... seem Badr 7 (Arabsat 6B ).



[solly]

badr7
26.05e it move east



[william-1]

BADR 7 (ARABSAT-6b has arrived @ 26 east.

NORAD ID:
41029
LOCAL TIME:
15:13:36
UTC:
15:13:36
LATITUDE:
0.08
LONGITUDE:
26.71 (Normal predicted overshoot by n2yo) the satellite is @ 26 east
ALTITUDE [km]:
35734.55
ALTITUDE [mi]:
22204.42
SPEED [km/s]:
3.08
SPEED [mi/s]:
1.91
AZIMUTH: 147.5 SE
ELEVATION:
+25.9
RIGHT ASCENSION:
21h 15m 13s
DECLINATION:
-08° 20' 23''
Local Sidereal Time:
19h 19m 21s
The satellite is in day light
Real time satellite tracking for: BADR 7 (ARABSAT-6B)



[solly]

badr 7 27.5 e



[Analoguesat]

badr 7 27.5 e

That will be the usual "overshoot" as the tracking sites take a couple of days to catch up with manoeuvred satellites. It will jump back to 26E when the tracking catches up.



[Marcus_21]

First test carrier for the Badr 7 at 26°E, frequencies 11270 H and 11310 H



[william-1]

11200 V
11200 H
More test carriers reported here FlySat Badr-7 @ 26° East

I will check out these after the Football



[william-1]

Observed 11200H - 11270H test carriers & 11200V active carrier with a 12 channel line up not active after the scan was completed



[william-1]

Badr 7 joins the 26 east constellation
FlySat Badr-4/5/6/7 @ 26° East

10770 V
DVB-S2/8PSK
MPEG-2
MPEG-4 27500 2/3

beIN w Irdeto2
Videoguard Badr-7
Pan-Arab new
Boomerang Middle East HD -w- 511 512 Eng MPEG-2/HD
Cartoon Network HD -w- 521 522 Ara MPEG-4/HD
CNN International HD w 541 542 Eng MPEG-4/HD
CNN HLN HD (Head Line News) w 551 552 Eng MPEG-4/HD
TCM HD



[Captain Jack]

William, any luck in Essex?



[william-1]

William, any luck in Essex?

No this transponder is on the very tight Pan Arab beam so no reception in the East of England even with a very big dish

So we know that some of the test transmissions can be received here in the UK but Badr-7 also has some very tight beams like Badr-5 & 6,
Time will tell what we end up with when they decide to move 1 or 2 satellites from here to 34 east & other locations.



[Captain Jack]

I did get a couple of transponders on Badr 5 on my 1.5m Gibby and a lot of Badr 6 were just under luck, so hoping a 1.8m will bring them in.

Like you say, can only wait and see how much overspill Badr 7 will have. Let's hope it's not a complete pig like Nilesat 201 or Es'hail...



[lovelyperson]

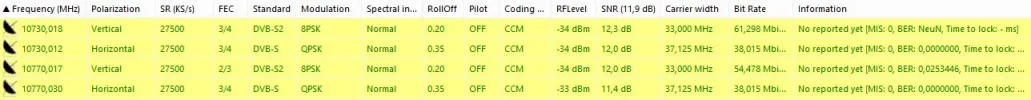

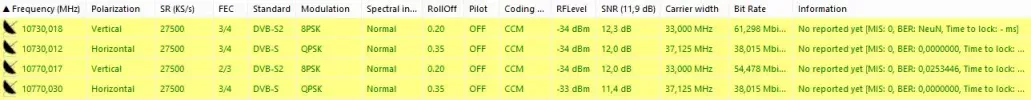

10770 V
DVB-S2/8PSK
MPEG-2
MPEG-4 27500 2/3

Thanks for that 'W' ..........seems we are ok here.

1.2m dish, Badr 7 reception showing the same strength as Badr 5:-



[MCelliotG]

As expected not a tiny fragment of signal in Northern Greece too! I wonder how big the dish needs to be! I receive some Badr6 frequencies during the night and 11227 from Badr5 only!



[humaxboy1]

Slovenia, 1.2m Laminas...if this is really Badr 7 then it should stay like that ..
Signal level cca the same as on Badr5. Badr 6 still the weakest in my area, but still some trp are receivable...

Humaxboy
