13.0°E HotBird 13C

[EnoSat]

After updating the firmware of the AVL6261C tuner, reception is also possible on receivers with this tuner



[tompouce]

After updating the firmware of the AVL6261C tuner, reception is also possible on receivers with this tuner

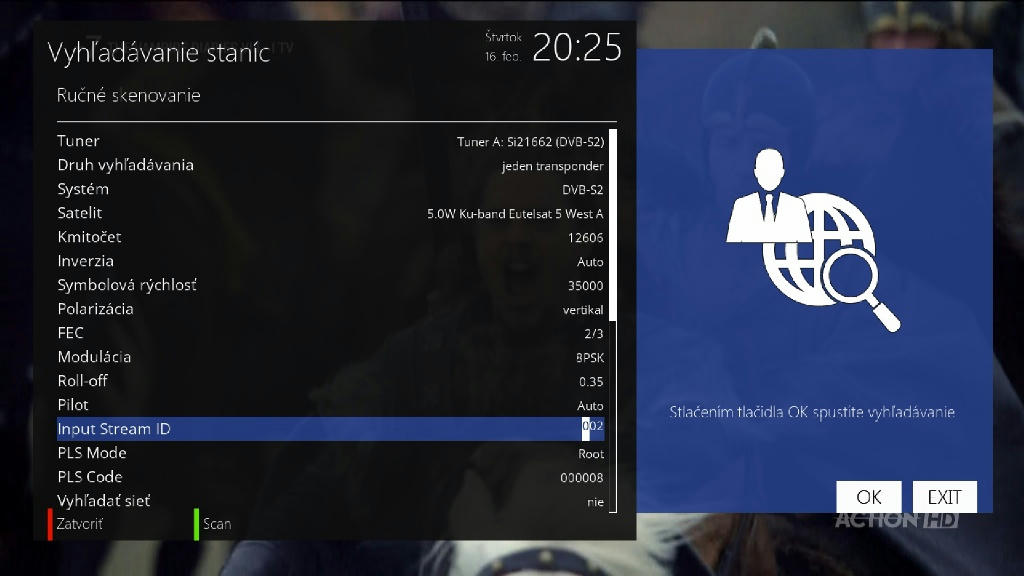

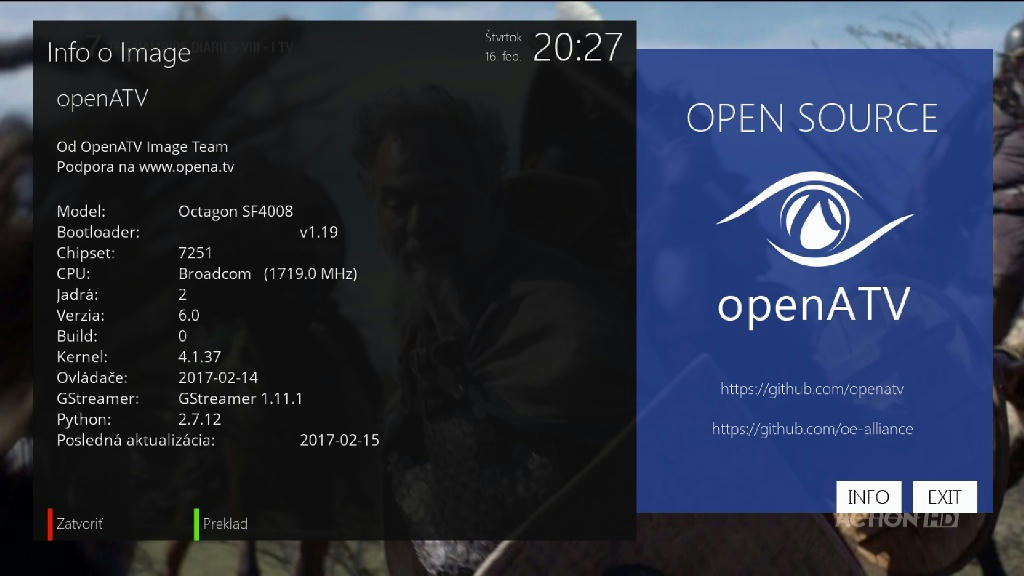

View attachment 146829View attachment 146828

Sure a good news for the SF4008 Octagon?



[EnoSat]

Doesn't SF4008 use Si21662 ?



[tompouce]

Yes, sorry, you're right.. maybe a solution in the future, we never know



[Channel Hopper]

Yes, sorry, you're right.. maybe a solution in the future, we never know

There has been no support for the SF4008 for a long while.

Enjoy the receiver for it's quality build and onboard storage.



[ac1139]

My VU+ ZERO 4K doesn't work.
What is S2X "short frame" used for?
Feeds, tests?



[EnoSat]

more space for data



[stpierre]

Hi Enosat,

Thanks for your work !

I have an Edision Mio 4K with AVL6261C tuner, but how to update this firmware ?
Have tried with classical update SatDream GR but no result with SDGR 6 and 8 !



[jsda30]

After updating the firmware of the AVL6261C tuner, reception is also possible on receivers with this tuner
View attachment 146829View attachment 146828

hi master... thanks for the info.....
avl6261c its for edison os mio+
i have edision os mio with avl6261 you know if there a firmware/driver for edison os mio and where?



[tompouce]

There has been no support for the SF4008 for a long while.

Enjoy the receiver for it's quality build and onboard storage.

Yes, the SF4008 is a very good one ! it will be perfect if there is an upgrade too for the tuner SI 21662 D60; see these specifications !



[EnoSat]

linux-firmware-availink/availink/dvb-fe-avl62x1.fw at f38a3a9b9906d192075984c7ac1100d51adf75a1 · availink/linux-firmware-availink

Home for Availink demodulator firmwares. To be upstreamed into linux-firmware - availink/linux-firmware-availink

github.com

new fimware for AVL62x1



[jsda30]

linux-firmware-availink/availink/dvb-fe-avl62x1.fw at f38a3a9b9906d192075984c7ac1100d51adf75a1 · availink/linux-firmware-availink

Home for Availink demodulator firmwares. To be upstreamed into linux-firmware - availink/linux-firmware-availink

github.com

new fimware for AVL62x1

how can i update firmware? where must replace the file?



[jsda30]

i replaced it



[stephan94]

Hello Enosat ,
Is it normal that the blindscan doesn't work anymore after this update ? Edision mio4K (without +)



[EnoSat]

report on github, for me blinscan works better than for the update, since it already finds ShortFrame transponders
PS: If you have backed up the FW floods, it is not a problem to go back and check if it affects BlindScan

<?xml version="1.0" encoding="iso-8859-1"?>

<!--
    File created on Piatok, 13 of január 2023, 02:22:41
    using osmio4kplus receiver running Enigma2 image, version 6.2,
    build 011, with the blindscan plugin

    Search parameters:
        Tuner A: Availink AVL6261 (DVB-S2X)
        Satellite: Yamal401 (90.0E)
        Start frequency: 10700MHz
        Stop frequency: 12750MHz
        Polarization: vertical and horizontal
        Lower symbol rate: 1000
        Upper symbol rate: 60000
        Only save unknown tranponders: no
        Filter out adjacent satellites: up to 3 degrees
        Scan duration: 492 seconds
-->

<satellites>
    <sat name="Yamal401 (90.0E)" flags="0" position="900">
        <transponder frequency="10952000" symbol_rate="2537000" polarization="0" fec_inner="2" system="1" modulation="2" />
        <transponder frequency="10972000" symbol_rate="11200000" polarization="0" fec_inner="3" system="0" modulation="1" />
        <transponder frequency="11070000" symbol_rate="5000000" polarization="0" fec_inner="3" system="1" modulation="5" is_id="0" />
        <transponder frequency="11153000" symbol_rate="5000000" polarization="0" fec_inner="4" system="1" modulation="2" is_id="0" />
        <transponder frequency="11169000" symbol_rate="17500000" polarization="0" fec_inner="2" system="1" modulation="4" is_id="0" />
        <transponder frequency="11187000" symbol_rate="10000000" polarization="0" fec_inner="3" system="1" modulation="2" is_id="0" />
        <transponder frequency="11213000" symbol_rate="9000000" polarization="1" fec_inner="3" system="1" modulation="4" />
        <transponder frequency="11225000" symbol_rate="26670000" polarization="0" fec_inner="3" system="1" modulation="2" />
        <transponder frequency="11236000" symbol_rate="7950000" polarization="1" fec_inner="3" system="1" modulation="4" is_id="0" />
        <transponder frequency="11265000" symbol_rate="27500000" polarization="1" fec_inner="2" system="1" modulation="1" is_id="0" />
        <transponder frequency="11266000" symbol_rate="30000000" polarization="0" fec_inner="3" system="1" modulation="2" is_id="0" />
        <transponder frequency="11295000" symbol_rate="11451000" polarization="0" fec_inner="3" system="1" modulation="4" is_id="0" />
        <transponder frequency="11297000" symbol_rate="17406000" polarization="1" fec_inner="2" system="1" modulation="1" is_id="0" />
        <transponder frequency="11345000" symbol_rate="30000000" polarization="0" fec_inner="3" system="1" modulation="2" />
        <transponder frequency="11346000" symbol_rate="14000000" polarization="1" fec_inner="2" system="1" modulation="4" is_id="0" />
        <transponder frequency="11359000" symbol_rate="9166000" polarization="1" fec_inner="2" system="1" modulation="4" is_id="0" />
        <transponder frequency="11412000" symbol_rate="6650000" polarization="0" fec_inner="1" system="1" modulation="1" is_id="21" />
        <transponder frequency="11426000" symbol_rate="32727000" polarization="1" fec_inner="0" system="1" modulation="5" is_id="0" />
        <transponder frequency="11429000" symbol_rate="5000000" polarization="0" fec_inner="3" system="1" modulation="5" is_id="0" />
        <transponder frequency="11439000" symbol_rate="10000000" polarization="0" fec_inner="0" system="1" modulation="5" is_id="0" />
        <transponder frequency="11488000" symbol_rate="5700000" polarization="0" fec_inner="6" system="1" modulation="2" is_id="0" />
        <transponder frequency="11496000" symbol_rate="4067000" polarization="0" fec_inner="3" system="1" modulation="2" is_id="0" />
        <transponder frequency="11610000" symbol_rate="4120000" polarization="0" fec_inner="3" system="1" modulation="1" is_id="0" />
        <transponder frequency="11629000" symbol_rate="4500000" polarization="1" fec_inner="6" system="1" modulation="2" />
        <transponder frequency="11649000" symbol_rate="2170000" polarization="0" fec_inner="3" system="0" modulation="1" />
        <transponder frequency="11664000" symbol_rate="13090000" polarization="1" fec_inner="7" system="1" modulation="1" is_id="21" />
        <transponder frequency="12535000" symbol_rate="15000000" polarization="1" fec_inner="4" system="1" modulation="5" is_id="0" />
        <transponder frequency="12655000" symbol_rate="3375000" polarization="1" fec_inner="3" system="1" modulation="2" is_id="0" />
        <transponder frequency="12668000" symbol_rate="5250000" polarization="1" fec_inner="2" system="1" modulation="1" is_id="0" />
    </sat>
</satellites>



[stephan94]

Hello Enosat ,

yes you are right, the blindscan works, only this particular transponder ( 11199V 34285) is not found
it's really not a big deal.
Thank you for your work.



[jsda30]

with the new firmware i get at 8w some radios with 890 SR... so are a good news for this tuner!!



[wellikan]

the frequency is working again
:tv: : Eutelsat Promo TV
Transponder: 11200 V 27500 DVB-S2/16APSK 3/4
Provider: aCAN Group



[stpierre]

Hello,
I have SR 34283 !



[stel883_]

Working with dm900 si2166d twin dvb-s2x tuner
