57E (NSS 12)

satesco

Specialist Contributor
Messages
756
Likes
1,268
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,7 PC cards(tbs6983,6903,6590,6522,6209,2603,skystar hd2),2 tuners usb-tbs5927,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania

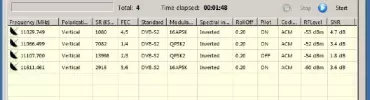

If you think it helps,here is my spectrum(10950-11200 MHz & 11400-1170 MHz) with the signal from the three spots(ME,CA,EA) on NSS-12 that I'm picking up in my area.To compare what's comparable,taking into account that we are both in different areas,with antennas of different sizes.


Attachments

Kypros_Pambou

Regular Member
Messages
160
Likes
249
My Satellite Setup
Owner of Cy Satellite Center (FB: Cy Satellite Center)
Dreamboxes: 8000ssss,7080ss,7020hd,Vu Solo 4K,Tandberg EN8092
TBS:6985,6925,5925usb
AMS 3.4m motorised,Titosat 2.1m
5 Pace&Arris IPTV Gateways
My Location
Greek Cyprus
I spoke with a friend (member of Cy Sat Team) that has 2.4m prime focus dish and his recepion was the same.
Personally i checked +/- 5 degr. from 57E to see the level of SNR and everything was OK :-applause


mar-val

Regular Member
Messages
194
Likes
364
My Satellite Setup
DR.HD F15,TBS 5925,6983,dishes 80-220
My Location
Slovakia,Zilina
Everything is OK , 11604H can be in EA beam . Cyprus is between main lobe E.Africa and side lobe in Europe.
So there has to be null zone somewhere near.


Kypros_Pambou

Regular Member
Messages
160
Likes
249
My Satellite Setup
Owner of Cy Satellite Center (FB: Cy Satellite Center)
Dreamboxes: 8000ssss,7080ss,7020hd,Vu Solo 4K,Tandberg EN8092
TBS:6985,6925,5925usb
AMS 3.4m motorised,Titosat 2.1m
5 Pace&Arris IPTV Gateways
My Location
Greek Cyprus
Is not the first time that i see problem of a satellite beam coverage. About this satellite the ME beam covers and all Europe (better to rename )
About the freq. 11605 H (data) even on Flysat list exist a question from where the transponder comes ... CA or EA ...???? (Left side CAH7 and right side East Africa ) Personally i can't answer this question because i don't receive them

Last edited:

zorbua

Regular Member
Messages
834
Likes
807
My Satellite Setup
Dreambox 8000 HD
Dreambox 800se
Dreambox 900UHD
Clark Tech 5000 HD
Numerous other receivers (Retired)
Dish Gibertini 1.5 M
Dishes Gibertini 1.2 x2
Dish Gibertini 1 M
My Location
Malta
Getting bwtv at 57E with 1.5 Dish, barely.


Attachments

CERIN

Regular Member
Messages
29
Likes
62
My Satellite Setup
16,0 Е - 140,0 Е
Супрал 0,9м. , TBS-6925 (PCI-E DVB-S2 Tuner Card)
My Location
Russia
11587 H 16533, 3/4, DVB-S2/8PSK, MPEG-4. O"zbekiston Packaqe ON. s 31,08, 2017.


Attachments

Messages
258
Likes
391
My Satellite Setup
1.20 Channel master ( Paris)and 1200 Laminas ( Bavaria) KU and C Band
Openbox SX6 and S3 Mini, Dr HD 15, Octagon SF 4008 and Octagon SX88and SX8 HD One, TBS 6983
My Location
Bavaria and Paris
Hello
with my 1.20 I can receive (next to ChadTV and BBC Programs) the new program TiGray TV
I do not have much reserve but it works. Encode_1080P_15.mp4_20171202_153054.348.jpg


Coviello

Regular Member
Messages
80
Likes
23
Location
Potenza (Italy)
My Satellite Setup
Prodelin 11ft (335 cm)
Windows 2000 XP
My Location
Southern Italy
In Southern-Italy (Basilicata, Potenza, halfway between Naples and Bari) I receive 11008 H 3254 with 14.0 dB and 11105 H 45000 with 10.2 dB.
The antenna is a Prodelin prime focus 3.4m and the receiver is Dr HD F-15.
Coviello


adonis1

Specialist Contributor
Messages
1,263
Likes
1,383
My Satellite Setup
Gibertini dish 1.55 Χ 1.66 ( 100.5°E -45.0°W) ku lnb Inverto Black Ultra 0.2db - Ku band Circular Uni Inverto BLACK Pro 0.2db / / C-Band lnb Titanium wide band - Pauxis 13°- K Panorama 13°K
DR.HD F-15 - Openbox S11 HD - TM-5402 HD M3.
My Location
Syros island - Central Aegean sea - Greece
France 24 (in Engli.jpg

France 24 (en Fran.jpg

3 New channels added today:
France 24 (English, Frence and Arabic) on
11105 H 45000 2/3 DVB-S2/8PSK MPEG-4
EastAfrica Beam

Last edited:
Messages
258
Likes
391
My Satellite Setup
1.20 Channel master ( Paris)and 1200 Laminas ( Bavaria) KU and C Band
Openbox SX6 and S3 Mini, Dr HD 15, Octagon SF 4008 and Octagon SX88and SX8 HD One, TBS 6983
My Location
Bavaria and Paris
In Southern-Italy (Basilicata, Potenza, halfway between Naples and Bari) I receive 11008 H 3254 with 14.0 dB
Hallo
with a 1.20m Laminas antenna in Northern Bavaria I can also see 11008 H 3254, but only with 1.4dB.
It is very surprising because it is the Africa Ku-band beam 57 Ost BWTV.jpg


pontiend

senile member
Messages
2,395
Likes
2,973
Location
South Yorkshire
My Satellite Setup
See Signature
My Location
south yorkshire
I have not seen DUHOK 11044V for some time now.
This is the best that I can do on this satellite.
Longitude is right so either the elevation is out a bit or the conifer next door is starting to block this satellite.I will have to wait for better weather to check the elevation.
It could be quite a while.:rolleyes:
TBS6983 100cm Dish

Messages
16
Likes
6
My Satellite Setup
Satellites
My Location
Morrocco
Ajouter le frequance de duhok mangelement
Et laisser quelque second pour monter le signa.

Mod note: Please ensure all your messages are in English!

Last edited by a moderator:

aceb

Specialist Contributor
Messages
1,385
Likes
713
My Satellite Setup
Prof Tuner 7301 /
1.25m Gibertini + Inverto B.Ultra/C1W, Moteck H180, 68.5E-67W Ku/C-Band /
1.8m Precision PF + ESX241/Inverto Black Pro, 66E-63W Ku/C-band /
2.4m Fortec Star+Titanium C1W/Pride plate, 49E-58W
My Location
Sussex
Duhok is still there but it takes a second or two to lock. Qellat is also still there but never displays correctly for me.

DUHOK_0570 11045_V_1775_20180110_170033.jpg

SERVES 2_0570 11042_V_1210_20180110_165831.jpg
