Astra 2G: Testing at 43.5°E

Status
Not open for further replies.
Marcus_21

Marcus_21

Member
Messages
286
Location
Naples, Italy
My Satellite Setup
Motorized dish Gibertini 150 cm + LNB black ultra twin + actuator 24" + GBOX V3000... Motorized dish Gibertini 125 cm + LNB black ultra twin + actuator 18" + V-Box II.
My Location
40.7N - 14.5E

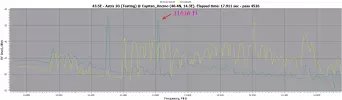

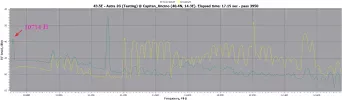

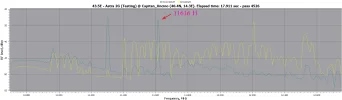

First test carrier... frequency 10714 H


Attachments

Marcus_21

Marcus_21

Member
Messages
286
Location
Naples, Italy
My Satellite Setup
Motorized dish Gibertini 150 cm + LNB black ultra twin + actuator 24" + GBOX V3000... Motorized dish Gibertini 125 cm + LNB black ultra twin + actuator 18" + V-Box II.
My Location
40.7N - 14.5E

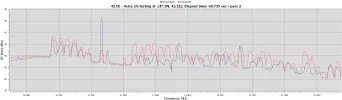

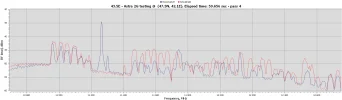

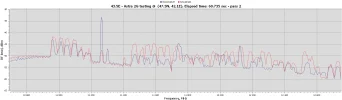

Other test carrier, 11616 H


Attachments

timo_w2s

timo_w2s

A Moderator
Staff member
Messages
4,360
My Satellite Setup
See Signature
My Location
Maidenhead, UK & Helsinki, Finland
satesco

satesco

Specialist Contributor
Messages
851
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,skystar hd2),2 tuners usb-tbs5927,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Very strong signal in my area on 11613 H.


Attachments

satesco

satesco

Specialist Contributor
Messages
851
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,skystar hd2),2 tuners usb-tbs5927,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
11692 V has been activated


Attachments

satesco

satesco

Specialist Contributor
Messages
851
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,skystar hd2),2 tuners usb-tbs5927,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Another one activated at 11224 H:


Attachments

Analoguesat

Analoguesat

Administrator
Staff member
Messages
46,607
Location
Scottish Borders
My Satellite Setup
TM 5402HD
Skybox F3
Sky+ UK.
My Location
Scottish Borders
It cant be a coincidence that most of the tp's being lit up so far are in the the remaining Eutelsat 28A band.....

satesco

satesco

Specialist Contributor
Messages
851
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,skystar hd2),2 tuners usb-tbs5927,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
It cant be a coincidence that most of the tp's being lit up so far are in the the remaining Eutelsat 28A band.....
A correct observation. To that I thought myself when I saw them.

hvdh

hvdh

Specialist Contributor
Messages
1,924
My Satellite Setup
Dr.HD F16, TBS 6925, T-55, Laminas 120 cm
My Location
Oss, NL (5.5°E 51.8°N)
Repeating the ranges as listed on tsenki.com:
7,250–7,750 MHz
10.70–11.20 GHz, 11.20–11.29 GHz, 11.45–12.19 GHz
18.85–21.20 GHz, 21.40–22.00 GHz

Let's see if indeed the range 11.29...11.45 remains untested...

M60

M60

Regular Member
Messages
764
My Satellite Setup
Fixed 28.2E Triax TD64, Freesat PVR + Panasonic Freesat TV's
My Location
Northern England
It cant be a coincidence that most of the tp's being lit up so far are in the the remaining Eutelsat 28A band.....
I'll start a spreadsheet at home to try and track whats being tested from reports and post periodically.

AS, is it time to open a new topic now testing has begun?

satesco

satesco

Specialist Contributor
Messages
851
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,skystar hd2),2 tuners usb-tbs5927,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
11264 H is activated now:


Attachments

T

tempo

Member
Messages
351
My Satellite Setup
Athlon X2 4400+; 110cm+90cm+60cm; Prof7301/7500/8000, TT S2-1500/1500b/1600/2400/3200/3650/4600/, Omicom S2, TBS 6922/5922/5925/5980/6280, TeVii S420/464/470/471/630/650/660, DVBSky S830/850/860/950/952, BGT3600/3620/3630, PCTV 400e/450e/452e/7010ix
My Location
47.5N, 42.2E / Russia

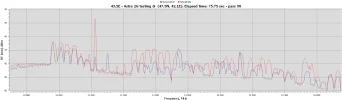

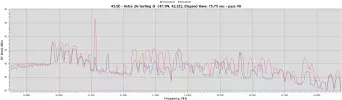

It is surprise for me, but I have strong carriers inRussia too :)
All previous Astra tests at 43.5°e were very weak here.


Attachments

A

Archive4

Guest
Before we all get too excited, anyone got 2E data to cross reference? ( Always the pessimist, if the spot beam is lower, " GAME OVER " !

satesco

satesco

Specialist Contributor
Messages
851
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,skystar hd2),2 tuners usb-tbs5927,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
11224 V on:


Attachments

T

tempo

Member
Messages
351
My Satellite Setup
Athlon X2 4400+; 110cm+90cm+60cm; Prof7301/7500/8000, TT S2-1500/1500b/1600/2400/3200/3650/4600/, Omicom S2, TBS 6922/5922/5925/5980/6280, TeVii S420/464/470/471/630/650/660, DVBSky S830/850/860/950/952, BGT3600/3620/3630, PCTV 400e/450e/452e/7010ix
My Location
47.5N, 42.2E / Russia
11224V in my location


Attachments

satesco

satesco

Specialist Contributor
Messages
851
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,skystar hd2),2 tuners usb-tbs5927,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
The weaker signal at 12474 V:


Attachments

T

tempo

Member
Messages
351
My Satellite Setup
Athlon X2 4400+; 110cm+90cm+60cm; Prof7301/7500/8000, TT S2-1500/1500b/1600/2400/3200/3650/4600/, Omicom S2, TBS 6922/5922/5925/5980/6280, TeVii S420/464/470/471/630/650/660, DVBSky S830/850/860/950/952, BGT3600/3620/3630, PCTV 400e/450e/452e/7010ix
My Location
47.5N, 42.2E / Russia
Can't confirm. Also 12474 V doesn't match expected frequency plan.
Maybe beacon?

Feedsat_DXer

Feedsat_DXer

Specialist Contributor
Messages
1,821
My Satellite Setup
See signature
My Location
France
11955 H 11115 V 11225 V






Feedsat_DXer

Feedsat_DXer

Specialist Contributor
Messages
1,821
My Satellite Setup
See signature
My Location
France
12300 V, not in the frequency plan, but active (weak)12300V2G.JPG

satesco

satesco

Specialist Contributor
Messages
851
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6522,6209,2603,6909X,6903X,skystar hd2),2 tuners usb-tbs5927,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Perhaps,because after scanning the signal disappeared.Around this time started a new transponder at 12655 V, which is on Astra 1F,but also this transponder left.So far this transponder doesn't really exist.There are tests on Astra 1F?


Attachments
