DIY Horizon to Horizon Polar Mount

B

blademedia

Member
Messages
1,942
My Satellite Setup
Sky
My Location
UK
Perfect, I can weld this up now, part that carries the motor need cutting to size,

another possible issue that I am aware of the vertical parts should have been made from 50mm, ive taken a gamble that I wont be able to see the arc before it hits the vertical,

If I can see further I will V it out to allow more travel
As you can now see I don't have a full 90 degree E/W, not that we can see that far, it might restrict me on the W side for data transponders, if it is a problem I will cut into the verticals to allow more travel
IMG_3010.JPG IMG_3011.JPG IMG_3013.JPG IMG_3018.JPG IMG_3020.JPG IMG_3023.JPG IMG_3024.JPG IMG_3025.JPG

A

archive10

Guest
Brilliant build!

Surely, that thing is able to carry larger dishes than the 2.4...

B

blademedia

Member
Messages
1,942
My Satellite Setup
Sky
My Location
UK
Surely, that thing is able to carry larger dishes than the 2.4...
Thanks st1. yes could go a fair bit bigger than 2.4 its well on top of the job, but will stick with this, the oilite bushes are very smooth pleased with them,

Need to work out balance for drilling the pivot the chain ring makes a good counter balance, want everything nice and smooth.


B

blademedia

Member
Messages
1,942
My Satellite Setup
Sky
My Location
UK
Brilliant build!

Surely, that thing is able to carry larger dishes than the 2.4...

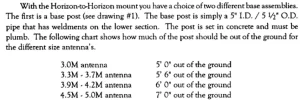

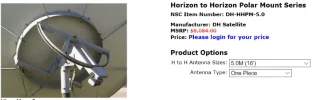

Looking on the site that sell this type of mount. they install 5mtr dishes on 5.5 inch mast, my project is made from bigger box section and going on 6.5 mast, so i claim up to 6/7 mtr dish :-lol
Horizon to Horizon Polar Mount Series
ddddddddd.PNG mmmkkkkkkkk.PNG

B

blademedia

Member
Messages
1,942
My Satellite Setup
Sky
My Location
UK
Welding nearly finished, cutting through angle grinder cable slowed me down:eek:, had to buy a new one. will repair other and keep it as spare
IMG_3026.JPG IMG_3029.JPG IMG_3030.JPG

B

blademedia

Member
Messages
1,942
My Satellite Setup
Sky
My Location
UK
I know the feeling, but I usually do that with the hedgetrimmer - lot's of waving the sword about...
Was lucky, didn't realise I had done it, lucky I didn't put my hand on the wire, it went bang when I picked it up

jeallen01

jeallen01

Specialist Contributor
Messages
3,593
My Satellite Setup
See Signature
My Location
Somewhere in England (possibly?)!
Drilled through 3 hidden (behind plaster or/and wall tiles) cables - with "interesting "results! Then, a couple of years ago, when the current cooker was being installed by the Currys delivery/installation teams, one of them got a shock when the cooker touched a wall hook in the confined space in front of it!, Turned out that I had screwed the hook into the wall just a mm or less away from the cable of the cable for the cooker that I installed decades ago - and the very slight impact of the cooker front on the hook drove it into the cable. "Shocking":(

B

blademedia

Member
Messages
1,942
My Satellite Setup
Sky
My Location
UK
Have some spare time today, been in workshop and made this, just needs welding on, would like to get dish up before Christmas, best get cracked on.

B

blademedia

Member
Messages
1,942
My Satellite Setup
Sky
My Location
UK
Perfect, thinking ahead pays off, the gearbox motor needs turning so the drain holes are in the correct place , also keeping the weight in the correct position at the rear of the mount not offset , something they haven't done on the one I am copying,

8 small holes to drill and one big one for the gear shaft, will do the big one first as it might need elongating so the chain falls correctly on the sprockets, then it can be bolted in place will use the holes top and bottom in the last picture for fixing it :)
IMG_3069.JPG IMG_3070.JPG IMG_3073.JPG IMG_3075.JPG IMG_3078.JPG

B

blademedia

Member
Messages
1,942
My Satellite Setup
Sky
My Location
UK
will do the big one first as it might need elongating so the chain falls correctly on the sprockets,
^^^ more luck than judgment :), it falls spot on, need to cut chain to size, shaft to length have a key slot machined into shaft, drill and bolt up.
IMG_3079.JPG IMG_3080.JPG IMG_3084.JPG IMG_3087.JPG

John

John

Enthusiast.
Messages
2,244
Location
North Nottinghamshire.
My Satellite Setup
Elite 2.2 PF - CM1.8 - CM1.2 - Gibertini 1.25.
Ku - Ka -C & Ext C.
PC cards-TM5402 receivers.
Promax FSM.
My Location
North Nottinghamshire.
B

blademedia

Member
Messages
1,942
My Satellite Setup
Sky
My Location
UK
Picked a few parts up for this today, bolts and key for sprocket, have some spare time over the holiday :)
IMG_3079.JPG IMG_3167.JPG IMG_3168.JPG

B

blademedia

Member
Messages
1,942
My Satellite Setup
Sky
My Location
UK
Bolted motor on today
IMG_3183.JPG IMG_3191.JPG

Then gave it a quick test, I need to do a few tweaks, so far looking good,

Small video
MVI 3187

Captain Jack

Captain Jack

Модератор
Staff member
Messages
10,733
My Satellite Setup
See signature
My Location
North Somerset
Awesome work!

Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
27,507
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK South
That is going to be very precise positioning, good job.

B

blademedia

Member
Messages
1,942
My Satellite Setup
Sky
My Location
UK
Awesome work!
Thanks

That is going to be very precise positioning, good job.
Thanks, yes the small steps are very small even on a cheap positioner, the rc 2000 will really come into its own on the weak signals, no play in anything I put all me weight on it and no backlash and moved me no problem,

I estimate 4 mins 70 e/w, will pull the stops out of motor and check later in the week,

Time will tell if the motor will pull the dish from the extreme's of the arc, that's the only thing that might let the build down, I've already located bigger stronger motors just in case ones needed :), will be making the mount perfectly balanced pointing south to make it as smooth as possible,

I really need to get on with the base tbh mount no good with out it

Another small video I did yesterday
MVI 3185

S

sat1978

New Member
Messages
9
My Satellite Setup
Tbs6522 ns2000
My Location
Asia
Wow great job!

M

moonbase

Small Dish Man
Messages
2,172
My Satellite Setup
2.0m Precision
My Location
UK
blademedia,

You put in a lot of work and time to build this chain driven polar mount and it looks to be very high quality. Have you plans for it now you have installed the 2.4m DH antenna? I hope the chain drive mount gets put into service as it is a top class piece of fabrication and whoever uses it will get many years use out of it.
