Hey decided to make this mount
DIY Horizon to Horizon Polar Mount_990256
I can easily locate steel work, will use oilite bushes for moving parts Google , need to locate gearbox with anti backlash something like this need to do more research chain and sprocket will use from motor cycle
Two-Way Right Angle Gear Drives | 2-Way Right Angle Gearbox

trying to get a rough idea on size of slewing ring part with chain do you think actuator is 18 inch in picture above

Feedsat_DXer

Feedsat_DXer

Specialist Contributor
Messages
1,804
Likes
4,482
My Satellite Setup
See signature
My Location
France
#3
a short off topic but related to your project This mount remind me this one I have seen last year while I was visiting a friend in italy..

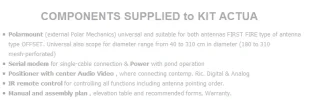

This si an "Eisat" mount and positioner, very precise, still available on the Italian market but very expensive.
I ve never seen someone else (Dxers) with that stuff, am I wrong ?

DIY Horizon to Horizon Polar Mount_990260 DIY Horizon to Horizon Polar Mount_990260 DIY Horizon to Horizon Polar Mount_990260 DIY Horizon to Horizon Polar Mount_990260

Last edited by a moderator:
B

blademedia

Member
Messages
1,942
Likes
1,909
My Satellite Setup
Sky
My Location
UK
#4
I do not think this is very easy to make such a mount. Will be interesting to follow this thread. Good luck with the project.
don't see any major problems hardest part will be locating correct gearbox, only tool I don't have is ring roller might buy one if not will take steel to fabrication shop for bending
Gear Driven Ring Roller to make metal rings and wheels! Worldwide Shipping!

a short off topic but related to your project This mount remind me this one I have seen last year while I was visiting a friend in italy..

This si an "Eisat" mount and positioner, very precise, still available on the Italian market but very expensive.
I ve never seen someone else (Dxers) with that stuff, am I wrong ?

View attachment 99148 View attachment 99149 View attachment 99150 View attachment 99151
looks a nice mount doesn't look suitable for large dish ?

Last edited by a moderator:
scopus

scopus

Specialist Contributor
Messages
2,024
Likes
2,595
My Satellite Setup
Primesat/Famaval 1.8 PF C/ku/Ka, Octagon SX8HD1, SX88, Openbox S3 Mini HD-V8S Freesat V7 HD-V8 Finder, Amiko A4K Combo, Satlook Colour HD Spectrum, Sansui A909 Amp and BOSE Acoustimass speakers for the audio.
My Location
Staffs UK
#5
Looks very similar to the old Fibo H to H motor, but way more substantial, they were a complete headache...

B

blademedia

Member
Messages
1,942
Likes
1,909
My Satellite Setup
Sky
My Location
UK
#6
the beauty of making your own I can gear it via gearbox chain and sprocket and make it very accurate might take 4/5 minuets to do the full arc but I want accuracy I will use anti backlash gearbox and good quality actuator motor for build

B

blademedia

Member
Messages
1,942
Likes
1,909
My Satellite Setup
Sky
My Location
UK
#10
input shaft connection motor side I can use part from actuator shaft

standard gearbox input shaft
DIY Horizon to Horizon Polar Mount_990284

will need to mill end down drill and pin part from actuator
DIY Horizon to Horizon Polar Mount_990284

will need to make housing to join actuator motor to gearbox will make from round tube

actuator motor
DIY Horizon to Horizon Polar Mount_990284

output shaft cog end to chain

will just weld this
DIY Horizon to Horizon Polar Mount_990284

to something like this





DIY Horizon to Horizon Polar Mount_990284

Terryl

Terryl

Specialist Contributor
Messages
2,246
Likes
1,522
My Satellite Setup
OpenBox X5 on a 1 meter motorized dish.
And now a 10 foot "C" band dish.

Custom built PC
My Location
Deep in the Boonies in the central Sierra Nevada mountains of California.
#11


Cogswell cogs or Spacely sprockets??.............

B

blademedia

Member
Messages
1,942
Likes
1,909
My Satellite Setup
Sky
My Location
UK
#13
don't see any major problems hardest part will be locating correct gearbox
after a bit of driving around calling at various companies came across a very helpful chap :) need to do some milling/fabrication but now have most parts, little did I know I can get proper clamps to hold cog to shaft will call back to company when I get nearer completion

need to pick more steel up and new cutting blade then can make start on frame
DIY Horizon to Horizon Polar Mount_990356 DIY Horizon to Horizon Polar Mount_990356

B

blademedia

Member
Messages
1,942
Likes
1,909
My Satellite Setup
Sky
My Location
UK
#14
made rough calculation on gearbox ratio of 70/80/1 bought 80/1 just received email from NSC they use 60/1 on new models, Travel Time of 4 Min. 37 Sec. to Cover the 160° Arc, unsure what cog is used never asked but shouldn't be far away slower it goes more accuracy, maybe 6 min 160° can use bigger cog to speed up a little if not happy
Horizon to Horizon Polar Mount Series

chap gave me ruined motor for input shaft, stripped it down nearly perfect fit for actuator adaptor little drilling needed hopefully pick parts up to join motor to gearbox tomorrow
DIY Horizon to Horizon Polar Mount_990386 DIY Horizon to Horizon Polar Mount_990386 DIY Horizon to Horizon Polar Mount_990386

Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
26,523
Likes
6,010
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK South
#15
:eek: interesting thanks for the info :)

I doubt the claim of 'the best satellite motor in the world' will last, now the experts here are on the case.

Channel Hopper

Channel Hopper

Suffering fools, so you don't have to.
Staff member
Messages
26,523
Likes
6,010
My Satellite Setup
A little less analogue, and a lot more crap.
My Location
UK South
#17
Next, you'll be asked to work on pre-unit motorcycles.

Trust1

Trust1

Specialist Contributor
Messages
820
Likes
1,342
My Satellite Setup
1.8 m CM at SMR 1224 + Elev. with 7 lnb changer Ku (lin - circ) - Ka (lin - circ) C (lin - circ)
My Location
Nijmegen Netherlands
#19
Search for Rosta tensioner , they have chainwheels with rollerbearing inside .
You will need 2 of them .

DIY Horizon to Horizon Polar Mount_990431
