NFL International 19.2°e

[statalite]

Has anyone had any success receiving NFL International at 19.2°e?
No luck for my with my zone 2, sf8008.
The report from KoS is 2 days old and it may be a temporary feed?
Maybe the report was logged at the wrong satellite position.

11817.00

V

DVB-S2

16APSK

31428 4/5



[Dave5118]

Yeah, they are there 4 channels, all showing the same content though.



[statalite]

Yeah, they are there 4 channels, all showing the same content though. View attachment 151364

Thanks @Dave5118 presumably reception is using the 1.5m Gibby?



[Dave5118]

Yeah, but seems as strong as the other TXs, but I'm guessing the 16apsk modulation will cause problems for smaller dishes. I may be wrong.



[EnoSat]

Modulation is a problem only for very old receivers, a bigger problem is the processing of the 100Mbit/s transponder data stream in the demodulators of the receivers.



[satesco]

You need a signal above 11dB to lock this mux.



[EnoSat]

Has anyone had any success receiving NFL International at 19.2°e?
No luck for my with my zone 2, sf8008.

It should be no problem to reach 11dB in the UK Midlands on your Channel Master 1.2m
satellites.xml should contain

<transponder frequency="11817000" symbol_rate="31429000" polarization="1" fec_inner="8" system="1" modulation="4"/>

or (if the image does not support defining 16APSK)

<transponder frequency="11817000" symbol_rate="31429000" polarization="1" fec_inner="0" system="1" modulation="0"/>



[MCelliotG]

No problem with my HD51. Just input 8PSK instead of 16APSK (known driver issue) and FEC to Auto.



[EnoSat]

Yes, HD51 work only with modulation - 0,1,2



[Beli1910]

on Edison os mio 4k plus works on the parameters that are written on the web pages. Location Sevnica Slovenia-antenna gibertini 150.



[EnoSat]

Edision works in Auto mode, it will accept whatever you enter



[stephan94]

with the Openbox S3 Mini II HD no Problem



[ViaHussun]

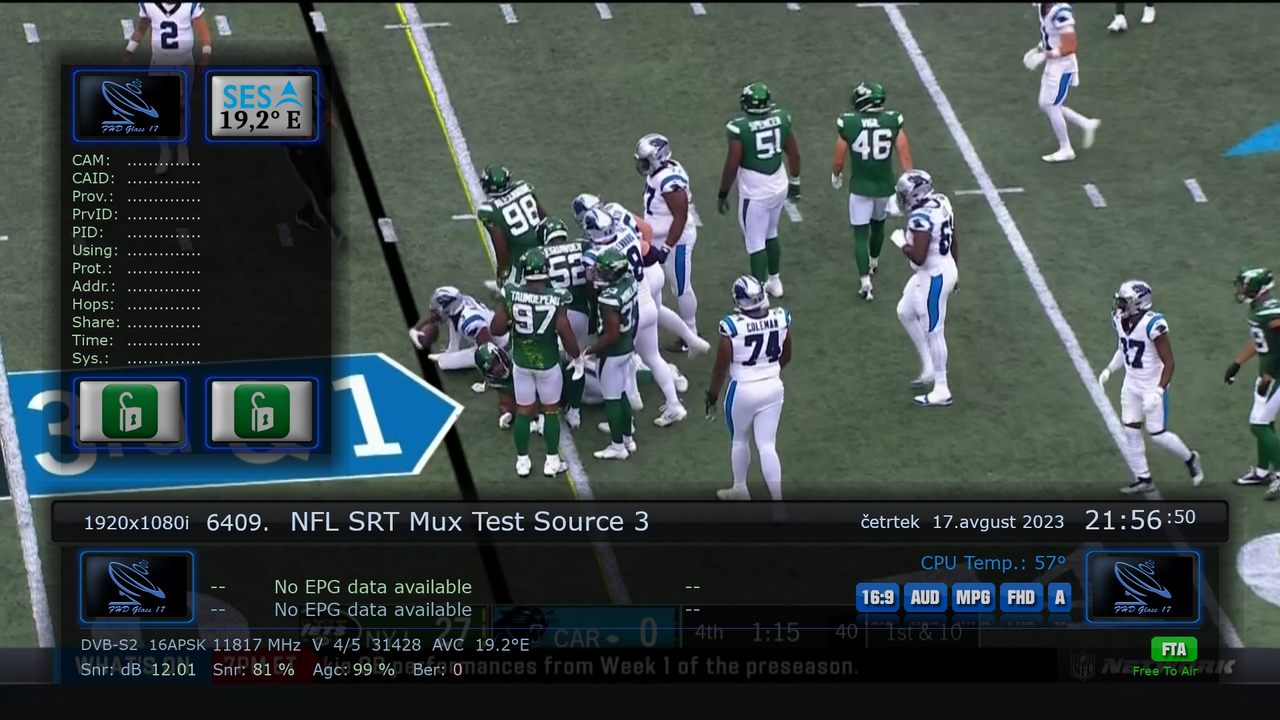

12,5 dB



[ViaHussun]

19E 11817 V 31428 16APSK 4:2:0
NFL MUX test

Premier League

FTA



[anto@]

Il mio segnale
