I have been entertaining myself this morning fine tuning the longtitude setting of my orbital Dish and TBS6925,
Using EBScan using incriments of .1 on the longtitude setting.Using a scan range of 11025H-11030H
The dish is on 30.5 East
The correct longtitude at my loction is 1.5West.
I get a odd result at .6W
I have no idea where it is from.I have not managed to scan it on DVBdream.
I have a nasty feeling that I am missing something as usual.:)
The pics are 0.5W 0.6W 0.7W

0.4W 11023H 3329 7/8 QPSK 12.3 dB

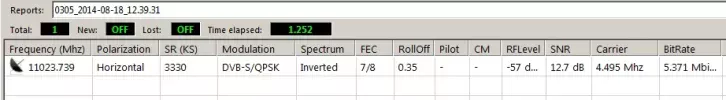

0.5W 11023H 3330 7/8 QPSK 12.7 dB

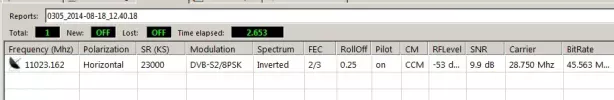

0.6W 11023H 23000 2/3 8PSK 9.9dB

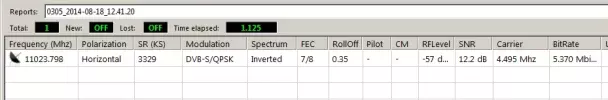

0.7W 11023H 3329 7/8 QPSK 12.2dB
0.8W 11023H 3329 7/8 QPSK 11.9dB
0.9W 11023H 3329 7/8 QPSK 11.5dB


Attachments

  • 11023H .5W.jpg
    11023H .5W.jpg
    44.4 KB · Views: 51
  • 11023H .6.jpg
    11023H .6.jpg
    48.8 KB · Views: 43
  • 11023 H .7W.jpg
    11023 H .7W.jpg
    45.4 KB · Views: 42
Last edited:

pontiend

Contibruter
Joined
Dec 12, 2007
Messages
2,847
Reaction score
3,333
Points
113
Age
78
Location
South Yorkshire
My Satellite Setup
See Signature
My Location
south yorkshire
Sorted it's off 28East.:)

Found the problem. The longtitude had changed from west to east.Sending the Dish west towards 28 East.
oos a silly boy then.:)

Last edited:

blademedia

Member
Joined
Jul 29, 2016
Messages
1,941
Reaction score
1,919
Points
113
My Satellite Setup
Sky
My Location
UK
Only lock for me here now sudan tx 12720/3000/V, Pan Arab beam

Last edited:

BlindFaith

Specialist Contributor
Joined
Oct 2, 2011
Messages
639
Reaction score
309
Points
63
Age
40
My Satellite Setup
-
120cm Echostar and 70cm (2nd location)
TBS 5925
My Location
52,0°N, 4,3°E and 52,5°N, 13,4°E

lovelyperson

Dreamer
Joined
Sep 8, 2004
Messages
898
Reaction score
1,582
Points
93
Location
Alicante, España
My Satellite Setup
2.0m PF dish
1.8m PF Famaval
1.8m PF Marrafa
1.4m Tecatel offset
1.2m dish + Stab HH120
TBS 5925 USB
TM5502, TM5402 mk3,
Octagon SX88,
Octagon SX88+ Optima COMBO
Edision Primo IP S2
60.0ºE - 63.0ºW
My Location
Alicante, España
Scan 10.00hrs today........few TV and feeds..........1.2m dish:-

30.5ºE  12-09-02016  10.00hrs.JPG
12533 V 2689 3/4 - nameless feed
12619 V 1798 7/8 - 'TV1' fixed camara
TV1_0305 12619_V_1798_20160912_101629.jpg

12625 V 2219 3/4 - 'service 1' Tanasuh TV al_tanasuh_ly.jpg
Service 01_0305 12625_V_2219_20160912_101644.jpg
