Reception of Badr4 (26E)

Lazarus

Retired Moderator
Joined
May 29, 2009
Messages
27,078
Reaction score
8,664
Points
113
My Satellite Setup
80cm Motorised.
Several small Dishes.
Much else.
My Location
North York Moors
I have Saudi Sports on 12015 V 27500, loud and clear.


hvdh

Specialist Contributor
Joined
Dec 10, 2004
Messages
2,357
Reaction score
3,336
Points
113
Age
59
Website
gso-satellites.nl
My Satellite Setup
Dr.HD F16, TBS 5927, T-55, Laminas 120 cm
My Location
Oss, NL (5.5°E 51.8°N)
Badr-4 @ 26 east 12149 H 30000 Saudi Sports still no signal here on my 100cm has this transponder moved to Badr 5 or 6 ?
Badr 4 still, but has the worst dB value, and a tough FEC of 5/6.


william-1

Super Moderator
Staff member
Joined
Jul 2, 2005
Messages
12,182
Reaction score
12,266
Points
113
Location
Epping Forest
My Satellite Setup
OP Gibertini 100 XP+ Inverto Black Ultra Lnb
Superior Dark Motor (160° max)
(50 east to 45 west)
Octagon SX88+Optima (A/B switch) Edision primo IP S2

Raven 88cm Mesh Dish + IBU Twin output
Stab100 H to H (120° max)
(53 east to 45 west)
Octagon SX88+ Ultra HD (A/B switch) Golden Interstar Alpha_X
My Location
Epping Forest Essex
I have Saudi Sports on 12015 V 27500, loud and clear.

Thanks for the replies I can get 12015 V but not the package on 12149 H 30000 ?

TM5502HD + 100cm Gibi with Inverto 0.2 Black Ultra

Signal Quality readings
11919 H 46%
11938 V 52%
11958 H 51%
11996 H 50%
12015 V 61%
12034 H 49%
12053 V 61%
12073 H 48%
12093 V 59%
12111 H 36%
12130 V 72%
12149 H 0%
12168 V 56%
12182 H 53%
12207 V 47%
12226 H 47%
12245 v 53%
12523 H 52%
12608 H 51%
12683 V 64%
12699 H 50%
12739 H 73%

http://www.lyngsat.com/Badr-4.html


pontiend

Contibruter
Joined
Dec 12, 2007
Messages
2,992
Reaction score
3,496
Points
113
Age
80
Location
South Yorkshire
My Satellite Setup
See Signature
My Location
south yorkshire
Thanks for the replies I can get 12015 V but not the package on 12149 H 30000 ?

l

DVDream gets nothing on 12149H .A blind scan gets it at 5.7dB.
Edit I should read posts properly.I get 12015V fine.:)
TBS 6925 100cm Dish

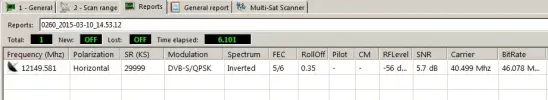

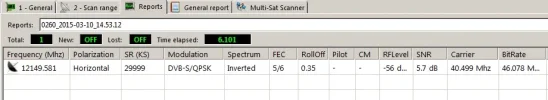

Attachments

  • 26e 3.jpg
    26e 3.jpg
    52.6 KB · Views: 19
  • 26E 4.jpg
    26E 4.jpg
    285.8 KB · Views: 14
Last edited:

SatSearcher

Regular Member
Joined
Feb 2, 2007
Messages
298
Reaction score
218
Points
43
Age
48
My Satellite Setup
105cm dish with 0.1 smart LNB. TBS 6903 & TBS 5925 Card & Octagon SF4008. 55E-65W.
My Location
West Yorkshire
Definitely something going on here, managed to get a lock on all BADR4 frequencies, but a couple are well down on normal figures, namely 12111H & 12149H, also had to mess with the USALS settings to get it peaked properly, don't normally have to! CrazyScan below:


far78

Member
Joined
Sep 12, 2011
Messages
143
Reaction score
64
Points
28
Age
45
My Satellite Setup
1m Orbital and Supreme Intelligent Dark Motor, TBS 6925 and Tevii S464 PC cards, TM5402 M1
My Location
York, North Yorkshire
Just an update on this. After a sobering chat with a local installer about how much it would cost to start from scratch, I sat down this evening and checked all satellite postitions again and, once again, more or less all were as they should be however I found out that nudging west made a big difference to some feeds on 10E so decided to repeat this on 26E and its back. The motor definitely does have a huge amount of backlash though - on the MBC transponders for instance, driving to it from the west results in 86% signal quality; driving from the east results in 56% quality! The motor's given me nearly 3 years faithful service to am wondering do I stick with it now and see if shifting positions fixes it or bite the bullet and go for a replacement motor and install - its far too high for me to deal with myself sadly :(


Captain Jack

Burnt out human
Joined
Oct 21, 2006
Messages
11,797
Reaction score
7,980
Points
113
My Satellite Setup
See signature
My Location
North Somerset
I found the same thing with most motorised equipment. Everything from DiSEqC motors to Jaeger 1224 to jack arms. Not quite the massive margin you seem to have but a few SNR percentage points at least


Archived-1

Persona non grata
Joined
Apr 14, 2007
Messages
7,570
Reaction score
8,590
Points
113
My Location
uk
Also don't forget even stable satellites do drift very slightly, to get the best from my setup i have to very slightly adjust every time the dish goes to a different position, try it you will be surprised what you can pick up.


william-1

Super Moderator
Staff member
Joined
Jul 2, 2005
Messages
12,182
Reaction score
12,266
Points
113
Location
Epping Forest
My Satellite Setup
OP Gibertini 100 XP+ Inverto Black Ultra Lnb
Superior Dark Motor (160° max)
(50 east to 45 west)
Octagon SX88+Optima (A/B switch) Edision primo IP S2

Raven 88cm Mesh Dish + IBU Twin output
Stab100 H to H (120° max)
(53 east to 45 west)
Octagon SX88+ Ultra HD (A/B switch) Golden Interstar Alpha_X
My Location
Epping Forest Essex
TM5502HD + 100cm Gibi with Inverto 0.2 Black Ultra
Re-aligned dish declination & Lnb position
Signal Quality readings after adjustment this morning
11919 H 55%
11938 V 61%
11958 H 48%
11996 H 63%
12015 V 69%
12034 H 55%
12053 V 67%
12073 H 55%
12093 V 64%
12111 H 46%
12130 V 80%
12149 H 0% no signal
12168 V 68%
12182 H 53%
12207 V 58%
12226 H 52%
12245 V 62%
12523 H 55%
12608 H 51%
12634 H 34% AOL
12683 V 61%
12699 H 53%
12739 H 70%


william-1

Super Moderator
Staff member
Joined
Jul 2, 2005
Messages
12,182
Reaction score
12,266
Points
113
Location
Epping Forest
My Satellite Setup
OP Gibertini 100 XP+ Inverto Black Ultra Lnb
Superior Dark Motor (160° max)
(50 east to 45 west)
Octagon SX88+Optima (A/B switch) Edision primo IP S2

Raven 88cm Mesh Dish + IBU Twin output
Stab100 H to H (120° max)
(53 east to 45 west)
Octagon SX88+ Ultra HD (A/B switch) Golden Interstar Alpha_X
My Location
Epping Forest Essex
Badr-4 @ 26 east signal quality monitoring

Time10:30am 4:30pm 9:30pm
11919 H 55%---57---
11938 V 61%---62
11958 H 48%---56
11996 H 63%---65
12015 V 69%---70
12034 H 55%---58
12053 V 67%---68
12073 H 55%---60
12093 V 64%---65
12111 H 46%---49
12130 V 80%---81
12149 H 0% ---45 signal returns
12168 V 68%---70
12182 H 53%---62
12207 V 58%---62
12226 H 52%---55
12245 V 62%---61
12523 H 55%---59
12608 H 51%---52
12634 H 34%---40 AOL
12683 V 61%---65
12699 H 53%---0 feed
12739 H 70%---70


william-1

Super Moderator
Staff member
Joined
Jul 2, 2005
Messages
12,182
Reaction score
12,266
Points
113
Location
Epping Forest
My Satellite Setup
OP Gibertini 100 XP+ Inverto Black Ultra Lnb
Superior Dark Motor (160° max)
(50 east to 45 west)
Octagon SX88+Optima (A/B switch) Edision primo IP S2

Raven 88cm Mesh Dish + IBU Twin output
Stab100 H to H (120° max)
(53 east to 45 west)
Octagon SX88+ Ultra HD (A/B switch) Golden Interstar Alpha_X
My Location
Epping Forest Essex
21:30 hrs all transponders +2% change on previous readings from 16:30 hrs

22:30 GMT readings
11919 H 55%
11938 V 61%
11958 H 60%
11996 H 67%
12015 V 73%
12034 H 55%
12053 V 72%
12073 H 55%
12093 V 68%
12111 H 49%
12130 V 76%
12149 H 48%
12168 V 71%
12182 H 65%
12207 V 65%
12226 H 61%
12245 V 72%
12523 H 61%
12608 H 57%
12634 H 40% AOL
12683 V 68%
12699 H 67% feed
12739 H 87%


william-1

Super Moderator
Staff member
Joined
Jul 2, 2005
Messages
12,182
Reaction score
12,266
Points
113
Location
Epping Forest
My Satellite Setup
OP Gibertini 100 XP+ Inverto Black Ultra Lnb
Superior Dark Motor (160° max)
(50 east to 45 west)
Octagon SX88+Optima (A/B switch) Edision primo IP S2

Raven 88cm Mesh Dish + IBU Twin output
Stab100 H to H (120° max)
(53 east to 45 west)
Octagon SX88+ Ultra HD (A/B switch) Golden Interstar Alpha_X
My Location
Epping Forest Essex
Signal Quality readings from Badr-4 @ 26 east with 100cm Gibi & 0.2 IBUltra

This morning's Signal Quality readings start 09:30hrs DTH Transponders only

----TM5502HD-----TM6902HD --AZBox-P+--SpiderboxHD9000
11919 H --53% ------57%--------44---------------44
11938 V-- 58%------62-----------50---------------46
11958 H --56%------58-----------47--------------46
11996 H --62%------60-----------54--------------54
12015 V --72%------67------------61--------------60
12034 H --53%-----58------------45--------------44
12053 V --72%-----66------------60---------------62
12073 H --53%-----58------------45---------------46
12093 V --66%-----63------------56---------------56
12111 H --48%-----54-------------41---------------40
12130 V --76%-----66-------------64--------------64
12149 H --46%-----51-------------40--------------40
12168 V --68%-----63-------------59--------------60
12182 H --62%-----61-------------54--------------54
12207 V --62-------60-------------53-------------54
12226 H --58%-----55-------------50-------------50
12245 V --68%-----60-------------57-------------58
12523 H --57%-----56-------------50-------------50
12683 V --64%-----61-------------54-------------54
Test ended 10:40am
The AZBox & Spiderbox give a more accurate signal readings when compared to the false elevated readings from the TM's.


Tururu

Assembled with recycled parts
Joined
Jun 3, 2006
Messages
2,849
Reaction score
964
Points
113
My Satellite Setup
90cm motorised dishes(98x90)+fixed+multiLNB+24Unicable.
Currently 56 satellites, 61°West to 57°East.

Octagon SF8008 4K Twin, VU+Duo², VU+Ultimo4K.
Recycled as the owner.
My Location
North of Madrid (28703 Spain) -3Km of IKEA (40.545847, -3.612012).:-)
To the south, very good sign.
Madrid (Spain) 94cm antenna, DreamBox800S-HD.

Code:
11919 H  13'5db señal/SNR  87% Calidad/AGC 99% BER 0
11938 V  13'0db señal/SNR  81% Calidad/AGC 99% BER 0
11958 H  13'0db señal/SNR  81% Calidad/AGC 99% BER 0
11996 H  13'5db señal/SNR  84% Calidad/AGC 99% BER 0
12015 V  14'5db señal/SNR  90% Calidad/AGC 99% BER 0
12034 H  13'5db señal/SNR  87% Calidad/AGC 99% BER 0
12053 V  14'5db señal/SNR  90% Calidad/AGC 99% BER 0
12073 H  13'5db señal/SNR  84% Calidad/AGC 99% BER 0
12093 V  13'5db señal/SNR  84% Calidad/AGC 99% BER 0
12111 H  12'5db señal/SNR  78% Calidad/AGC 99% BER 0
12130 V  14'0db señal/SNR  87% Calidad/AGC 99% BER 0
12149 H  11'5db señal/SNR  71% Calidad/AGC 99% BER 0
12168 V  14'5db señal/SNR  90% Calidad/AGC 99% BER 0
12182 H  14'5db señal/SNR  90% Calidad/AGC 99% BER 0
12207 V  13'5db señal/SNR  84% Calidad/AGC 99% BER 0
12226 H  13'5db señal/SNR  84% Calidad/AGC 99% BER 0
12245 V  14'0db señal/SNR  87% Calidad/AGC 99% BER 0
12523 H  12'0db señal/SNR  75% Calidad/AGC 99% BER 0
12683 V  12'5db señal/SNR  78% Calidad/AGC 99% BER 0


RimaNTSS

Super Moderator
Staff member
Joined
Jan 7, 2009
Messages
5,601
Reaction score
6,079
Points
113
Age
58
My Satellite Setup
Some SAT-related hardware.
My Location
N-E from Riga
I just scanned this satellite. CM120 (partially obstructed by balcony's rail), IBU, GB Quad Plus, Brussels.ScreenHunter_225 Mar. 13 18.40.jpg


Tururu

Assembled with recycled parts
Joined
Jun 3, 2006
Messages
2,849
Reaction score
964
Points
113
My Satellite Setup
90cm motorised dishes(98x90)+fixed+multiLNB+24Unicable.
Currently 56 satellites, 61°West to 57°East.

Octagon SF8008 4K Twin, VU+Duo², VU+Ultimo4K.
Recycled as the owner.
My Location
North of Madrid (28703 Spain) -3Km of IKEA (40.545847, -3.612012).:-)
Thanks for the info.

Clear now maintain levels.
12740 H 2200 very unstable, jump 50dB to 46dB all the time.
Madrid (Spain) 94cm antenna.
SR bass note and the antenna is small.
The FSS beam is very real
(Madrid-Spain) 48dBW ==> 60cm.

Also with IBU.:)
----------
Gracias por la informacion.
Nublado ahora, mantengo niveles.
12740 H 2200 muy inestable, salta de 50dB a 46dB todo el rato.
Madrid (España), con antena de 94cm.
Se nota el SR bajo y la antena es pequeña.
El haz FSS es muy real
(Madrid-España) 48dBW ==> 60cm.

Tambien con IBU.:)
Code:
11919H27500  14'0dB señal/SNR  87% Calidad/AGC 99% BER 0
11938V27500  13'5dB señal/SNR  84% Calidad/AGC 99% BER 0
11958H27500  13'5dB señal/SNR  84% Calidad/AGC 99% BER 0
11996H27500  13'5dB señal/SNR  84% Calidad/AGC 99% BER 0
12015V27500  14'5dB señal/SNR  90% Calidad/AGC 99% BER 0
12034H27500  13'5dB señal/SNR  87% Calidad/AGC 99% BER 0
12053V27500  14'5dB señal/SNR  90% Calidad/AGC 99% BER 0
12073H27500  14'0dB señal/SNR  87% Calidad/AGC 99% BER 0
12093V27500  13'5dB señal/SNR  84% Calidad/AGC 99% BER 0
12111H27500  13'0dB señal/SNR  81% Calidad/AGC 99% BER 0
12130V27500  15'0dB señal/SNR  93% Calidad/AGC 99% BER 0
12149H30000  12'0dB señal/SNR  75% Calidad/AGC 99% BER 0
12168V22000  15'0dB señal/SNR  93% Calidad/AGC 99% BER 0
12182H16200  15'0dB señal/SNR  93% Calidad/AGC 99% BER 0
12207V27500  14'0dB señal/SNR  87% Calidad/AGC 99% BER 0
12226H27500  13'5dB señal/SNR  84% Calidad/AGC 99% BER 0
12245V27500  14'0dB señal/SNR  87% Calidad/AGC 99% BER 0
12523H27500  12'0dB señal/SNR  75% Calidad/AGC 99% BER 0
12608H 3000  10'0dB señal/SNR  62% Calidad/AGC 93% BER 0
12615V 2960  7'5dB señal/SNR  46% Calidad/AGC 89% BER26
12666H 2400  6'5dB señal/SNR  43% Calidad/AGC 89% BER147
12683V27500  13'0dB señal/SNR  81% Calidad/AGC 99% BER 0
12740H 2200  7'5dB señal/SNR  46% Calidad/AGC 89% BER141


Attachments

  • 12740H2200a.jpg
    51.7 KB · Views: 9
  • 12740H2200.jpg
    50.7 KB · Views: 9
Last edited:

lovelyperson

Dreamer
Joined
Sep 8, 2004
Messages
1,009
Reaction score
1,805
Points
113
Location
Alicante, España
My Satellite Setup
2.0m PF dish
1.8m PF Famaval
1.8m PF Marrafa
1.4m Tecatel offset
1.2m dish + Stab HH120
TBS 5925 USB
Octagon SF8008 4k Twin
GTMedia V8 UHD
GTMedia GTcombos x 2
Goldmaster SR525 HD
Sat-illimitè F300 hyper
62.0ºE - 63.0ºW
My Location
Alicante, España
Alicante, España....1.2m

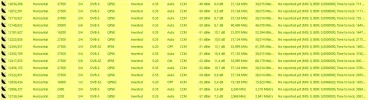

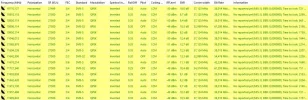

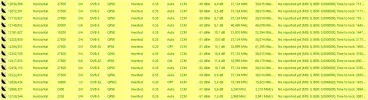

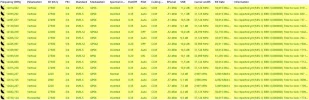

26.0ºE  13-03-2015  a.JPG 26.0ºE  13-03-2015  b.JPG 26.0ºE  13-03-2015  c.JPG 26.0ºE  13-03-2015  d.JPG


william-1

Super Moderator
Staff member
Joined
Jul 2, 2005
Messages
12,182
Reaction score
12,266
Points
113
Location
Epping Forest
My Satellite Setup
OP Gibertini 100 XP+ Inverto Black Ultra Lnb
Superior Dark Motor (160° max)
(50 east to 45 west)
Octagon SX88+Optima (A/B switch) Edision primo IP S2

Raven 88cm Mesh Dish + IBU Twin output
Stab100 H to H (120° max)
(53 east to 45 west)
Octagon SX88+ Ultra HD (A/B switch) Golden Interstar Alpha_X
My Location
Epping Forest Essex
100cm Gibi with TM5402HD M3 + Inverto 0.2 Black Ultra

Signal Quality Readings received from transponders on Badr-4 @ 26 east

11919 H 27500 7.4dB
11938 V 27500 8.4dB
11958 H 27500 8.1dB
11996 H 27500 9.1dB
12015 V 27500 9.4dB
12034 H 27500 7.5dB
12053 V 27500 9.6dB
12073 H 27500 7.5dB
12093 V 27500 9.1dB
12111 H 27500 6.5dB
12130 V 27500 10.2dB
12149 H 30000 6.5dB
12168 V 22000 8.5dB
12182 H 16200 8.3dB
12207 V 27500 8.4dB
12226 H 27500 8.1dB
12245 V 27500 8.7dB
12523 H 27500 8.3dB
12608 H 3000 7.2dB
12614 V 2960 4.9dB
12666 H 2400 5.3dB
12683 V 27500 8.7dB
12699 H 2532 7.3dB
12739 H 2200 9.0dB

164 x tv 73 x radio


digi247

Regular Member
Joined
Mar 24, 2009
Messages
722
Reaction score
429
Points
63
Location
NW
My Satellite Setup
see sig
My Location
UK
I checked those readings on my M3 yesterday and all average between 11db and 12.5db obviously using a larger dish with a Twin Black Ultra

Using Patch 117p on the M3 as this appears to give a more accurate reading than any others

Last edited:

RimaNTSS

Super Moderator
Staff member
Joined
Jan 7, 2009
Messages
5,601
Reaction score
6,079
Points
113
Age
58
My Satellite Setup
Some SAT-related hardware.
My Location
N-E from Riga
all average between 11db and 12.5db obviously using a larger dish.... i also get some frequency's which are out of your reach which average around 5-7db
Of course, bigger dish-better reception. Could you publish list of frequencies and levels you got? And lager dish you use means...?:rolleyes:

Top
