TurkSat 4A/3A@ 42 East

solly

solly

Specialist Contributor
My Location
Tel Aviv, Israel
Turksat 4A at 42 ° East longitude took place in the last week. New frequency for each channel reported. Turksat with the final list will be announced by a press conference. Turksat AS also all the PID tables in this change in frequency regulation is to go. As a result, satellite devices to problems during channel The detection will be minimized

On the first transponder of Turksat 4A (12245 H 27500 DVBS / QPSK 5/6) to stream empty....


Attachments

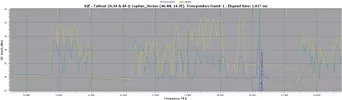

  • 42.0E-RFScan.webp
    87.8 KB · Views: 110
  • T-4A_12245-H.webp
    69.7 KB · Views: 127
  • Stream.webp
    26.7 KB · Views: 85
At 18.0 db with F 15 .

Definately East beam then, with 6.5 dB a bit weaker here than 3A East beam (8...9 db).
The 2A East beam is a no-go here in NL with 120 cm.
So I'm hopeful. :)

Last edited:
hi --
Only getting 0.0 - 1.0 db here with 1.8 cm into dr-hd f15

In my area the signal on 12245 H is very good if I catch it even with T90!So far it looks like the transponder is in testing, without programs.
Trp.12423 H,3000,5/6 is ok.


Attachments

  • 42.0E-12245 H-test.webp
    42.0E-12245 H-test.webp
    107.1 KB · Views: 77
  • 42E-12423 H.webp
    42E-12423 H.webp
    179.6 KB · Views: 69
Last edited:
Romania - 90 cm.scan1.webp

carrier on 12379H , probably East beam. Some vertical TPs are on, EU beam...

Four strong vertical 4A transponders, all QPSK 3/4:
12344 V 30000 : 13.5 dB
12379 V 27500 : 13.5 dB
12422 V 27500 : 14.0 dB
12456 V 30000 : 13.0 dB
These values are a few dB below neighbouring Turksat 3A values.

12245 H 27500 with over 6 dB, don't want to lock no more.
Edit: that's 0.5 dB below lock. Should be OK tonight!

Last edited:
12244Η 27500 19.2 db
12378H 30000 16.6
12378V 27500 14.2
12422H 30000 16.4
12422V 27500 14.7
12457V 30000 14.1

adonis1 said:
12244Η 27500 19.2 db
12378H 30000 16.6
12378V 27500 14.2
12422H 30000 16.4
12422V 27500 14.7
12457V 30000 14.1
Click to expand...

Decent signals from the 3 V tps . Nothing at all on the H's here

Skybox F3 30cm zone 2 ex sky uk dish

I have 9-12 db on test carriers agianst 11-14 db on Turksat 2A/3A (0.9m dish). Seems this new sat will be weaker for me too :(


Attachments

  • 42e Spectrum 01.07.2014 - TT1600.webp
    42e Spectrum 01.07.2014 - TT1600.webp
    98.9 KB · Views: 63
Analoguesat said:
Decent signals from the 3 V tps . Nothing at all on the H's here

Skybox F3 30cm zone 2 ex sky uk dish
Click to expand...


same here... the verticals are at 72-75% sq but zilch off the horizontals

42E , CJ: qv solly's Post #121.

I shall create a new Topic.



Edit: Howzat?

Transponders currently active... 12246H, 12345V, 12380H, 12380V 12422H, 12422V, and 12458V.


Attachments

  • T-4A_12246H.webp
    69.5 KB · Views: 71
  • T-4A_12345V.webp
    69.8 KB · Views: 63
  • T-4A_12380H.webp
    82.2 KB · Views: 63
  • T-4A_12380V.webp
    70.7 KB · Views: 57
  • T-4A_12422H.webp
    78 KB · Views: 65
  • T-4A_12422V.webp
    70.5 KB · Views: 65
  • T-4A_12458V.webp
    69.4 KB · Views: 66
...and 18600 RHCP or LHCP (not sure) ...
Circular polarised nonetheless.


Attachments

  • 18600 unmodulated carrier.webp
    18600 unmodulated carrier.webp
    67.5 KB · Views: 63
12244Η 27500 19.2 db
12378H 30000 16.6
12378V 27500 14.2
12422H 30000 16.4
12422V 27500 14.7
12457V 30000 14.1

Down here:- About 2 hrs ago
12244Η 27500 8.3db
12378H 30000 6.5 db
12378V 27500 12.3db
12422H 30000 5db
12422V 27500 5.3db
12457V 30000 12.1db

It looks like the Horizontals are on the East Beam & the Verticals are on the West Beam same as all transmissions between 11.700 to 12.150 from 42 east,

100cm dish + TM5402HD M3

So here my list:-

Turksat 4A
12344 V 30000 12.8 dB
12379 V 27500 12.8 dB
12422 V 27500 13.1 dB
12457 V 30000 12.3 dB

For comparison readings with my set up

Turksat 2A
11919 V 24444 16.1 dB
11957 V 27500 16.4 dB
12130 V 27500 16.2 dB

The East Beam is much further away from the UK than the other East Beams from 42 east.View attachment 66411
