uk bbc channels normally on 28.2 on intelsat 907 27.5w ?

Status
Not open for further replies.

Analoguesat

Administrator
Staff member
Joined
Jul 26, 2003
Messages
50,798
Reaction score
11,253
Points
113
Location
Scottish Borders
My Satellite Setup
TM 5402HD
Sky+ UK.
My Location
Scottish Borders
Ig I901 is going EOL in just over 6 months time do we know what (if anything) is likely to be replacing it?

MEV1 should tow I901 back up to graveyard orbit, disconnect & abandon 901 then go onwards to a new rescue mission


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
1,930
Reaction score
2,688
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Thanks for asking, but my situation is more complicated because my passion for reception has caught me in the flat where I live, i.e., in the apartment block. I had to limit myself to a "proper" antenna in the analog days for physical, administrative, and regulatory reasons.
The passion for reception came along without my having proposed it, just because I had to find a solution to install the antenna myself. And where you think it will amuse you, even on the balcony. I was not allowed anywhere else, plus I could not install a bigger antenna, physically speaking, on the balcony except at the risk of collapsing under pressure and weather. Under my balcony, there is a lot of traffic, so I had to consider safety, not so much for the antenna, but to avoid human accidents caused by a possible fall.
I won't go into details; it's too complicated because it depends on my living conditions and biography. Which I don't think anyone is interested in and is a whole other story.
But what I can say is that such a passion, I realized along the way, requires other living conditions, first of all, physical space, where you can be a master without affecting the existence of others. I mean in a house with a yard.
And because I don't have one, it's a bitter irony to discover that this passion doesn't fit the physical conditions in which I live. Perhaps this handicap has made me pay attention to reception details that others with large antennas do not seriously consider, i.e., how the signal behaves on one satellite or another, how it manifests itself over a year, etc.
But to cut a long story short, given the conditions described, I would say that, having learned satellite reception techniques along the way, I feel like a professional working with amateur dishes.
But even if I have such frustrations, I console myself, perhaps a delusion, that my results are close to those of some amateurs with larger antennas. Or, as an editor of a magazine about satellites and reception, where I publish articles and reviews, told me that it is not the size of the antenna that counts but the results.
I hope you'll excuse me for talking too much when I could have got away with a dodge.
Regards.


Fisty McB

Member
Joined
Aug 11, 2012
Messages
433
Reaction score
630
Points
93
My Satellite Setup
See my signature...
My Location
County Tyrone, N. Ireland
intelsat 901 end of life is predicted on first quarter 2024 , some members reported issues on C-Band TPs too
Have you a source for this? Looking at the Satbeams profile for this satellite with the MEV in place, it's expected to be okay until Q2/Q3 in 2026?

Though if there's reported trouble with the downlink output of I901...

It's not jus the Freeview UK Satback & RTP C-Band transmissions that could be potentially affected, several radio stations in the Republic of Ireland & Northern Ireland currently use the bird for feeding their FM transmitters (as well as the Icelandic IP service, presuming it's sill running). If Intelsat have nothing lined up to replace I901 in this position, then I'd expect a good amount of notice to be given by Intelsat to these customers to find other solutions.


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
1,930
Reaction score
2,688
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
11597 V,333,2/3,8PSK-Data/radio stream,new,(credit goes to @superdish66).


Attachments

  • 11597 V,333,23,8psk-stream ip_2023-08-31_19-50-27.png
    11597 V,333,23,8psk-stream ip_2023-08-31_19-50-27.png
    157.2 KB · Views: 110
  • 27.5W_10950-11700 V_2023-08-31_21-16-44.png
    27.5W_10950-11700 V_2023-08-31_21-16-44.png
    95.9 KB · Views: 55

Analoguesat

Administrator
Staff member
Joined
Jul 26, 2003
Messages
50,798
Reaction score
11,253
Points
113
Location
Scottish Borders
My Satellite Setup
TM 5402HD
Sky+ UK.
My Location
Scottish Borders
Have you a source for this? Looking at the Satbeams profile for this satellite with the MEV in place, it's expected to be okay until Q2/Q3 in 2026?

Though if there's reported trouble with the downlink output of I901...

It's not jus the Freeview UK Satback & RTP C-Band transmissions that could be potentially affected, several radio stations in the Republic of Ireland & Northern Ireland currently use the bird for feeding their FM transmitters (as well as the Icelandic IP service, presuming it's sill running). If Intelsat have nothing lined up to replace I901 in this position, then I'd expect a good amount of notice to be given by Intelsat to these customers to find other solutions.
I wouldnt be at all surprised if the satback service got discontinued at some point. Its a vast lucury expense that really isnt needed these days. The transmission system is robust enough to withstand a few failures - look what happened when Bilsdale tx got destroyed last year - all they did was put a temporary mux on 28E to feed the replacement tranmitters.......

And if some tiddly flea powered minor tx serving 6 people and a million sheep loses its primary feed for a few hours well so what.


Fisty McB

Member
Joined
Aug 11, 2012
Messages
433
Reaction score
630
Points
93
My Satellite Setup
See my signature...
My Location
County Tyrone, N. Ireland
I wouldnt be at all surprised if the satback service got discontinued at some point. Its a vast lucury expense that really isnt needed these days. The transmission system is robust enough to withstand a few failures - look what happened when Bilsdale tx got destroyed last year - all they did was put a temporary mux on 28E to feed the replacement tranmitters.......

And if some tiddly flea powered minor tx serving 6 people and a million sheep loses its primary feed for a few hours well so what.

While there's definitely an element of commercial confidentiality regarding it's overall cost, I'd doubt it's costing the Beeb a huge amount to keep it going at least at "vast luxury" expense levels given what I'd assume would be the transponder rental at 27.5W compared to 28E, not to mention also using BISS1 as encryption to keep rights holders sorta happy. The Bilsdale incident, while obviously catastrophic, at least occurred where it has significant overlapping coverage with other main UHF transmitters, and has favourable local terrain where few relays are needed - were something similar to happen in a part of the UK where things weren't as simple, things would have been, or will be, more complicated.


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
1,930
Reaction score
2,688
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
27.5W_11690.285 V,363,2/3,8PSK-11690.285 V,363,2/3,8PSK-Data, new.
I couldn't find any radio streams on PID 101


Attachments

  • 11690 V,363,23,8psk-data_2023-10-02_21-52-21.png
    11690 V,363,23,8psk-data_2023-10-02_21-52-21.png
    137.6 KB · Views: 26
  • 27°5W_2310022243_11450-11700 V .jpg
    27°5W_2310022243_11450-11700 V .jpg
    122.6 KB · Views: 19

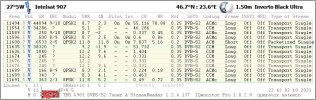

  • 27°5W_2310022243.jpg
    138.8 KB · Views: 33

FC GD

Member
Joined
Jun 17, 2015
Messages
134
Reaction score
119
Points
43
Age
43
My Satellite Setup
TBS6983 Professional DVB-S2 Dual Tuner PCI-e Card, TBS6522 Multi-standard Dual Tuner PCI-e Card, EyeTV Netstream 4Sat and Netstream Sat, EyeTV Sat CI, Hybrid (2008, International), EyeTV Sat Free
SDR: RSP1, Adalm-Pluto, Airspy HF+ Discovery
Antenna: SelfSat H50D4
Mac:EyeTV 3, SAT>IP Viewer, Dvblogic, eyetvCamd
PC:DVB Viewer, EBS Pro, Crazyscan, IQ monitor, TS reader
Pay Tv: Allente, Telia
My Location
Stockholm
Last edited:

Manikm909

Small'ish Dish Man
Joined
Sep 10, 2020
Messages
2,434
Reaction score
1,142
Points
113
Age
47
My Satellite Setup
Channel Master 1.8M on Edision MIO 4K & GTMEDIA Combo, and CM1.2M on Octagon SF8008
My Location
Kent, UK
While there's definitely an element of commercial confidentiality regarding it's overall cost, I'd doubt it's costing the Beeb a huge amount to keep it going at least at "vast luxury" expense levels given what I'd assume would be the transponder rental at 27.5W compared to 28E, not to mention also using BISS1 as encryption to keep rights holders sorta happy. The Bilsdale incident, while obviously catastrophic, at least occurred where it has significant overlapping coverage with other main UHF transmitters, and has favourable local terrain where few relays are needed - were something similar to happen in a part of the UK where things weren't as simple, things would have been, or will be, more complicated.
footage of felling here:

well done to have missed those nice dishes....


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
1,930
Reaction score
2,688
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
11609 V,6531,2/5-Siminn TV has stopped?
I'm unsure about the message displayed, but Siminn TV has stopped broadcasting in IP-over-Sat on 27.5W(?). I hope I got the message right on this stream, which is still active. The radio stream is not working either.
Is anyone on this forum who knows more, or at least enough Icelandic to understand the message correctly?


Attachments

  • 27.5W_11609 V,6531,25,s2-siminn tv_2023-10-21_13-20-00.png
    27.5W_11609 V,6531,25,s2-siminn tv_2023-10-21_13-20-00.png
    123.7 KB · Views: 47

ozumo

te wo tsuite
Staff member
Joined
May 26, 2020
Messages
5,205
Reaction score
2,610
Points
113
My Satellite Setup
Raven mk2 zone 2 x4, Channel Master: 90cm x3, 1.2m x2, 1.8m PF. CM polar mount x2, Az/El x3.
My Location
South Durham
Translated it says "Here was a private Icelandic TV channel that stopped broadcasting on this channel"


EnoSat

Specialist Contributor
Joined
May 29, 2004
Messages
709
Reaction score
647
Points
93
Age
53
Website
enosat.euweb.cz
My Satellite Setup
TBS-5925/5220/5520SE , Dr.HD , Dreambox , Edision , Mutant
My Location
Slovakia
11610.50 V with new SR-4166


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
1,930
Reaction score
2,688
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
11609 V,4165,2/5,s2-Pid 512. The three IPTV services work with the same parameters except for the new symbol rate.


Attachments

  • 11609 V,4165,25,s2-pid 512, 228.5.6.11_2023-12-16_17-35-14.png
    11609 V,4165,25,s2-pid 512, 228.5.6.11_2023-12-16_17-35-14.png
    407 KB · Views: 24
  • 11609 V-pid 512_udp_..11,..7,..8_2023-12-16_17-39-42.png
    11609 V-pid 512_udp_..11,..7,..8_2023-12-16_17-39-42.png
    401.6 KB · Views: 28

EnoSat

Specialist Contributor
Joined
May 29, 2004
Messages
709
Reaction score
647
Points
93
Age
53
Website
enosat.euweb.cz
My Satellite Setup
TBS-5925/5220/5520SE , Dr.HD , Dreambox , Edision , Mutant
My Location
Slovakia
Although my card is not suitable for receiving Packetizer or Modcode, its "behavior" is interesting
if LOCK is QPSK ( bitrate 3MB ), partialy processed data,
if LOCK is like APSK ( bitrate 14MB ), I have no data.


satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
1,930
Reaction score
2,688
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
11610 V,4165,2/5,-S2
The Siminn TV stream is no longer being transmitted. Only radio streams are working, and Premier League matches when they are broadcast.
There are six Icelandic radio streams on 228.5.6.7.
I used the 6903x card with neumoDVB, and fortunately, it can lock and listen to IPTV on the mux-116019 V,4165,2/5-with a low symbol rate of 250 Ks.
Also, the radio stream is on 11696 V, 500, and 8/9.



Attachments

  • 10950-11700 V_2024-01-02_21-46-30.png
    10950-11700 V_2024-01-02_21-46-30.png
    84.7 KB · Views: 15
  • 27°5W_2401022312_11450-11700 V .jpg
    27°5W_2401022312_11450-11700 V .jpg
    154.4 KB · Views: 16
  • 11610 V,4165,25,s2-iptv_2024-01-02_22-11-08.png
    11610 V,4165,25,s2-iptv_2024-01-02_22-11-08.png
    310 KB · Views: 17

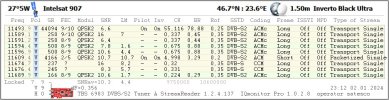

  • 27°5W_2401022312.jpg
    111.6 KB · Views: 22
  • tbs6903x_11590 V,250-radio_2023-12-31_18-32.png
    tbs6903x_11590 V,250-radio_2023-12-31_18-32.png
    103.7 KB · Views: 14

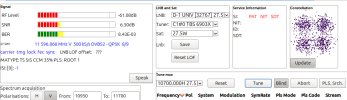

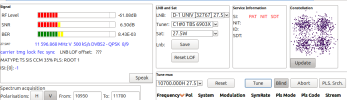

  • 11597 V,500,89_2023-12-17_10-17.png
    11597 V,500,89_2023-12-17_10-17.png
    69 KB · Views: 14
  • 11590 v_activate mux,stream,analyser_2023-12-31_18-49.png
    11590 v_activate mux,stream,analyser_2023-12-31_18-49.png
    132.5 KB · Views: 27
Last edited:

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
1,930
Reaction score
2,688
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Siminn TV from IP address 228.5.6.8 reactivated faster than I thought with the same IP-over-Sat/DVB parameters on the same mux,11609 V,4165,2/3, S2.


Attachments

  • 11609 V,4165,25,s2-address 228.5.6.8_2024-01-03_21-34-54.png
    11609 V,4165,25,s2-address 228.5.6.8_2024-01-03_21-34-54.png
    224.7 KB · Views: 43

satesco

Specialist Contributor
Joined
Aug 10, 2008
Messages
1,930
Reaction score
2,688
Points
113
My Satellite Setup
seven antennas,one toroidal with 16 lnbs,
6 satellite receivers,2 Meters,9 PC cards(tbs6983,6903,6590,6504,6522,6209,2603,6909X,6903X,6902se,skystar hd2),2 tuners usb-tbs5927 & tbs5925,Skystar HD.
Satellite reception between 100.5E-50.0W
My Location
Romania
Another device, besides dvb cards, to run the Siminn TV stream at 27.5W is the Ayecka SR1. Eumetsat users use it to capture weather images from the EumetCast service.
It is also valid for MPE streams, like this IP-over-Sat/DVB.
Maybe it's just a coincidence, but when testing with Ayecka, I found that the video stream, i.e., 228.5.6.8, does not work in the morning.


Attachments

  • SiminnTV stream_2024-01-12_18-09-07.png
    SiminnTV stream_2024-01-12_18-09-07.png
    237.7 KB · Views: 41
Last edited:

Satfaca

Specialist Contributor
Joined
Aug 2, 2008
Messages
650
Reaction score
890
Points
93
Location
Melmac (46N, 14.5E)
My Satellite Setup
Prodelin PFA 340 cm + H2H motor + Seavey ESR-124H Corotor
Prodelin PFA 240 cm + EGIS ProfiTracker + Chaparral PR1 Ku feed
DM920 + Octagon SF8008 + TBS 6925
Chaparral M140 + Echostar DVR-7000 HDD + Lyngbox
My Location
Melmac
Can I ask some of you friendly pals to help me configure TSReader & VLC to play this correctly?
When I click Playback > VLC > Play, I get this error:



2night

Member
Joined
Jul 4, 2009
Messages
553
Reaction score
634
Points
93
Age
63
My Satellite Setup
vantage hd 8000s
120 cm dish

windows 7
My Location
friesland (nl)
Telstar 12 Vantage - 15° West:

BBC Satback Package Launched on 11043V 44103 Encoded

this is a copy of 27.5°W 11495 V 44100

(info Satfeeds-DX)
