Advice Needed Which Satellite cable?

RichardinSpain

Regular Member
Joined
Dec 21, 2008
Messages
253
Reaction score
21
Points
18
Age
56
Location
Totana, Murcia
My Satellite Setup
Sky 1.5 m FTE dish Amiko Alien SHD8900 receiver, Gigablue Quad
& 80cm dish for Nilesat or badr with Amstrad sky receiver
Dreambox 500s motsat3 motor
My Location
Totana Murcia Spain
Hi All
After 10 years my satellite cable is showing signs of wear and tear (cracks in the plastic coating)
I know i need rg6 cable (i think) but have seen others like rg11 and rg58, can someone tell me what the difference is and is there different types of rg6 cable? and which is the best, it will be for a about 25 meter cable run
Many thanks Richard


PaulR

Dazed and Confused Admin
Staff member
Joined
Jun 28, 2003
Messages
17,498
Reaction score
3,602
Points
113
My Satellite Setup
-----------See sig-----------
My Location
Wirral, NW UK and Vaucluse, France.
The RG specifications are very basic descriptions of cables indicating their size and impedance. RG6 will get you some awful cable only suitable hanging picture frames or the very best. Youneed to look at the loss specifications or go for a proper branded cable.

In the UK WF100 or PF100 are the prefered cables but you'll struggle to get them anywhere outside the UK. You can order them from a UK supplier who does mail order perhaps or a friend/relative living in the UK could purchase it for you.

xF100 cables have a solid copper core and copper foil/copper braid outer shield with a foam dielectric. Lesser cables have an alumium sheath. Lesser still are the ones with a very thin braid and bottom of the heap are ones with copper coated steel centre. You might have to compromise with what's available locally.


satelliteman

Administrator
Staff member
Joined
May 7, 2007
Messages
12,033
Reaction score
382
Points
83
My Satellite Setup
See signature
My Location
East Midlands, UK & Lanzarote, Canary Islands
Webro RG6 is ok for domestic installations.


digi247

In the Green Room
Joined
Mar 24, 2009
Messages
722
Reaction score
426
Points
63
Location
NW
My Satellite Setup
see sig
My Location
UK
Same here have used other brands of RG6 without problems.


Tururu

Assembled with recycled parts
Joined
Jun 3, 2006
Messages
2,818
Reaction score
1,147
Points
113
My Satellite Setup
90cm motorised dishes(98x90)+fixed+multiLNB+24Unicable.
Currently 56 satellites, 61°West to 57°East.

Octagon SF8008 4K Twin, VU+Duo², VU+Ultimo4K.
Recycled as the owner.
My Location
North of Madrid (28703 Spain) -3Km of IKEA (40.545847, -3.612012).:-)
Hi All
After 10 years my satellite cable is showing signs of wear and tear (cracks in the plastic coating)
I know i need rg6 cable (i think) but have seen others like rg11 and rg58, can someone tell me what the difference is and is there different types of rg6 cable? and which is the best, it will be for a about 25 meter cable run
Many thanks Richard
Como indicas que esta cuarteado por el tiempo.
Entiendo que el cable es de PVC y expuesto al Sol.
Por eso los daños que comentas.


Si quieres usar cable PVC, una referencia de FTE Maximal todo cobre, muy bueno puede ser K125+ (28dB/100m), pero dentro de 10 años estara igual.
K 300 W (28dB/100m) PVC Blanco
K 302 (28dB/100m) PVC Blanco (7.5mm de diametro cuidado)

Para no tener problemas con el Sol, usa cable PE, una referencia puede ser K125N (30dB/100)

Con aluminio en la malla:
K290B (28dB/100m) PE Negro
K290 BE (30dB/100m) PE beige
K290 BR (30dB/100m) PE marron
K 301 (28dB/100m) PE Negro (7.5mm de diametro cuidado)

En distribuidores de material de la casa Rover, puedes localizar cable Bieffe tambien muy bueno, segun modelo
CO12A (28dB/100m) PE marron.

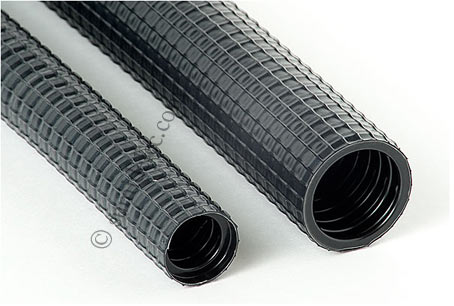

Si pones cable PVC, puedes poner una funda de tubo currugado (el tubo utilizado por los electricistas [el doble], la funda externa es de PE) en la parte donde de el Sol, el tubo lo cortas con un cuter nuevo y metes dentro el cable de satelite, este tubo despues de 20 años esta como el primer dia.


PD: Lo bueno no es barato.
---------
As you state that this cracked by time.
I understand that the cable is exposed to the sun and PVC
So the damage you mention .


If you want to use PVC cable , a reference of all FTE Maximal copper, can be very good K125 + (28dB/100m), but in 10 years will be like .
K 300 W (28dB/100m) PVC White
302 K (28dB/100m) PVC White (7.5mm diameter warnings)

To avoid problems with the Sun, using PE wire , a reference may be K125N (30dB/100m)

With aluminum mesh :
K290B (28dB/100m) PE Black
K290 BE (30dB/100m) beige PE
K290 BR (30dB/100m) PE Brown
301 K (28dB/100m) PE Black (7.5mm diameter warnings)

In material dealers house Rover , you can find Cable Bieffe also very good, depending on model
CO12A (28dB/100m) PE brown .

If you put PVC cable , you can add a cover currugado tube (the tube used by electricians [ twice ] , the outer sheath is PE) in the part where of the Sun , the tube you cut it with a new cutter and mess inside satellite cable , this tube after 20 years, this as the first day.


PS: Good is not cheap.


RichardinSpain

Regular Member
Joined
Dec 21, 2008
Messages
253
Reaction score
21
Points
18
Age
56
Location
Totana, Murcia
My Satellite Setup
Sky 1.5 m FTE dish Amiko Alien SHD8900 receiver, Gigablue Quad
& 80cm dish for Nilesat or badr with Amstrad sky receiver
Dreambox 500s motsat3 motor
My Location
Totana Murcia Spain
Hi All
Thanks very much for all your advice, it has been very informative
My local store had this cable ..Fanher c-800 ICT cable, they said that it was high grade and the cable that they use for satellite installations and it was a 1 euro per metre


satelliteman

Administrator
Staff member
Joined
May 7, 2007
Messages
12,033
Reaction score
382
Points
83
My Satellite Setup
See signature
My Location
East Midlands, UK & Lanzarote, Canary Islands
Fair price, bit more than I'd for qual cable.


Tururu

Assembled with recycled parts
Joined
Jun 3, 2006
Messages
2,818
Reaction score
1,147
Points
113
My Satellite Setup
90cm motorised dishes(98x90)+fixed+multiLNB+24Unicable.
Currently 56 satellites, 61°West to 57°East.

Octagon SF8008 4K Twin, VU+Duo², VU+Ultimo4K.
Recycled as the owner.
My Location
North of Madrid (28703 Spain) -3Km of IKEA (40.545847, -3.612012).:-)
C-800ICT
http://www.fanher.es/articulo/C-800ICT-coaxialictalcu.html
Todos los cables valen para instalaciones satelite.:-lol
No es malo, pero no es de los mejores, tiene unas perdidas de 30.12dB/100metros.
El hilo central es de 1,02mm y es de PVC la cubierta externa, dentro de 4 años mal y en 10 no queda cubierta externa.

Del mismo distribuidor, tienes C-900ICT
http://www.fanher.es/articulo/C-900ICT-coaxialictcu.html
Es un pelin mejor en general y solo pierde 29.82dB/100metros (cobre).
Seguramente tambien sea algo mas caro.

PD: Personalmente prefiero cables mejores.:rolleyes:
-----------
C-800ICT
http://www.fanher.es/articulo/C-800ICT-coaxialictalcu.html
All cables apply to satellite facilities.:-lol
Not bad, but not to the top, has a loss of 30.12dB/100 meters.
The core wire is 1.02 mm and the outer PVC cover, within 4 years bad and there is no outer casing 10.
From the same dealer, you have C-900ICT
http://www.fanher.es/articulo/C-900ICT-coaxialictcu.html
It is a tad better overall and only lost dB/100 29.82 meters (copper).
Surely it is also something more expensive.

PS: Personally I prefer better cables.:rolleyes:
