Just Sharing This New multi-stream @ 30 west

william-1

william-1

Super Moderator
Staff member
My Satellite Setup
OP Gibertini 100 XP+ Inverto Black Ultra Lnb
Superior Dark Motor (160° max)
(50 east to 45 west)
Octagon SX88+Optima (A/B switch) Edision primo IP S2

Raven 88cm Mesh Dish + IBU Twin output
Stab100 H to H (120° max)
(53 east to 45 west)
Octagon SX88+ Ultra HD (A/B switch) Golden Interstar Alpha_X
My Location
Epping Forest Essex
Hispasat 30W-5 @ 30 west
11330 H 9140 3/4 DVB-S2/8PSK
MPEG-2
MPEG-4
PLS: Gold
53850 TDT Aragón 8916-1001
Europe
new
Aragón TV w F 101 103 Spa
104 Spa 10160
Aragón HD w F 32 33 Spa
34 Spa 10162
MPEG-4/HD
-R- Aragón Radio Zaragoza 1003 Spa 10161
-R- Aragón Radio Huesca w 4003 Spa 10165
-R- Aragón Radio Teruel w 5003 Spa 10166

SX-88+ before you begin an autoscan remove all data & Albertis DTT transponders,
Manually add new transponder then Search>> Auto>> Multi Stream On>>FTA only On>>TV then press OK.

Found easily with the Availink tuner of OSmio4K.
Also, working fine on Silabs tuners (no freezing) with manual input!


Attachments

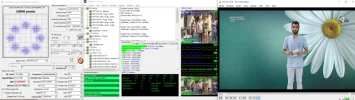

  • 11329 H,9141,34,8psk-Aragones_2019-07-01_20-39-54.webp
    11329 H,9141,34,8psk-Aragones_2019-07-01_20-39-54.webp
    46.6 KB · Views: 37
Not a sausage from this on my 80cm dish. I’m guessing it’s at a lower power than the adjacent 11347H and 11302H transponders which come in fine.

Or my configuration is struggling with the PLS/no multistream combo which seems unlikely.

Nothing on my Edision PRIMO here in Belgium (Mechelen -Antwerp) with my triax 110.
But also no TV Castilla la mancha on 11491 V 7522 MST
And also no TPA 7, 8 nor Teledeporte on 11496 H 7884
Signal too weak, I guess?...

Have to say, since BOM TV Changed into BOM Cinema, When switching to that channel, my receiver gives me no signal on the transponder. After 5 - 10 -15 seconds, -sometimes- it gives me 84% of signal quality and starts receiving BOM... Even when trying to rescan the transponder, I can't get any signal...

Stevenvc19 said:
Nothing on my Edision PRIMO here in Belgium (Mechelen -Antwerp) with my triax 110.
But also no TV Castilla la mancha on 11491 V 7522 MST
And also no TPA 7, 8 nor Teledeporte on 11496 H 7884
Signal too weak, I guess?...

Have to say, since BOM TV Changed into BOM Cinema, When switching to that channel, my receiver gives me no signal on the transponder. After 5 - 10 -15 seconds, -sometimes- it gives me 84% of signal quality and starts receiving BOM... Even when trying to rescan the transponder, I can't get any signal...
Click to expand...

Unfortunately it won’t work on the Edision as it has a new PLS code which wouldn’t be in the Edision’s memory I don’t think. I’m pretty sure the firmware just comes pre-loaded with known PLS codes.

pontiend said:
Still coming in fine here.92% quality.
TBS6983 105cm Dish
View attachment 125287
Click to expand...

Hmm that seems pretty strong then for me to not be getting a sniff on an 80cm. How do the weak CMT TV and A7 11491/11496 ones compare for you?

Scrub that! Getting it now with 10.7dB C/N (so just marginally weaker than 11347H).

It seems for some reason that TVHeadend in Linux ignores the PLS settings unless an Input stream ID (ISI) is set - even though there isn't one with it not being multistream. Setting it to '1' seems to do the trick to lock the signal anyway though.

Works on my Edision PRIMO with 60 cm dish

I can't get this any more either. No sign of it on my 80cm dish.

It seems to have gone missing here too.No signal.
TBS6983 105 cm Dish

Yep. Having previously failed to get Aragon/AragonHD on my Edision Primo, I now do, thanks to the simple expedient, illustrated above, of toggling MTS to Off.

Good signal on 80cm dish.

Lazarus said:
Yep. Having previously failed to get Aragon/AragonHD on my Edision Primo, I now do, thanks to the simple expedient, illustrated above, of toggling MTS to Off.

Good signal on 80cm dish.
Click to expand...
Ditto on the SX88+ on an off-set LNB on one of the Zone 2 dishes (although I did the actual search using the Gibby): interestingly there was Zero SQ showing on the display before it it started to search that transponder frequency - it then sat there "searching" the transponder for nearly a minute before the 2 channels "popped up" and the SQ came right up (aboout 60% on the Zone 2 & 100% on the Gibby - can switch between the fixed and steerable dishes at a press of the button on the RF remote to control the antenna relay just behind the Rx - works great :D).

Also noted (rather weirdly?) that the SS doesn't change much at all from about 70% when I switch between the 1.2m Gibby and the off-set LNB on the Zone 2 dish - I would have thought that it would change quite a lot.

Last edited:
Stevenvc19 said:
Still no luck for me.
Can't get any signal. Like the transponder isn't active.
Might be due to the firmware? I am using the modified .62 firmware...
Click to expand...
Try searching the transponder, regardless of whether there is any sign of a signal - and I suspect the receiver might need to be connected to the internet in order for it to "go find" the transponder/channel parameters (that seems to be the way the SX88+ does it, and I have read comments to that effect)

jeallen01 said:
Ditto on the SX88+ on an off-set LNB on one of the Zone 2 dishes (although I did the actual search using the Gibby): interestingly there was Zero SQ showing on the display before it it started to search that transponder frequency - it then sat there "searching" the transponder for nearly a minute before the 2 channels ......
Click to expand...

Ditto.

Stevenvc19 said:
Still no luck for me.
Can't get any signal. Like the transponder isn't active.
Might be due to the firmware? I am using the modified .62 firmware...
Click to expand...


As per JE's advice, scan anyway - and be patient. The whole exercise is counter-intuitive.

PS I'm also using modified .62
